GasGas ECC 4

GasGas ECC 4

£4,874.00 GBP
£6,499.00 GBP £4,874.00 GBP
Sale Sold out
Tax included.
Size

ECC 4

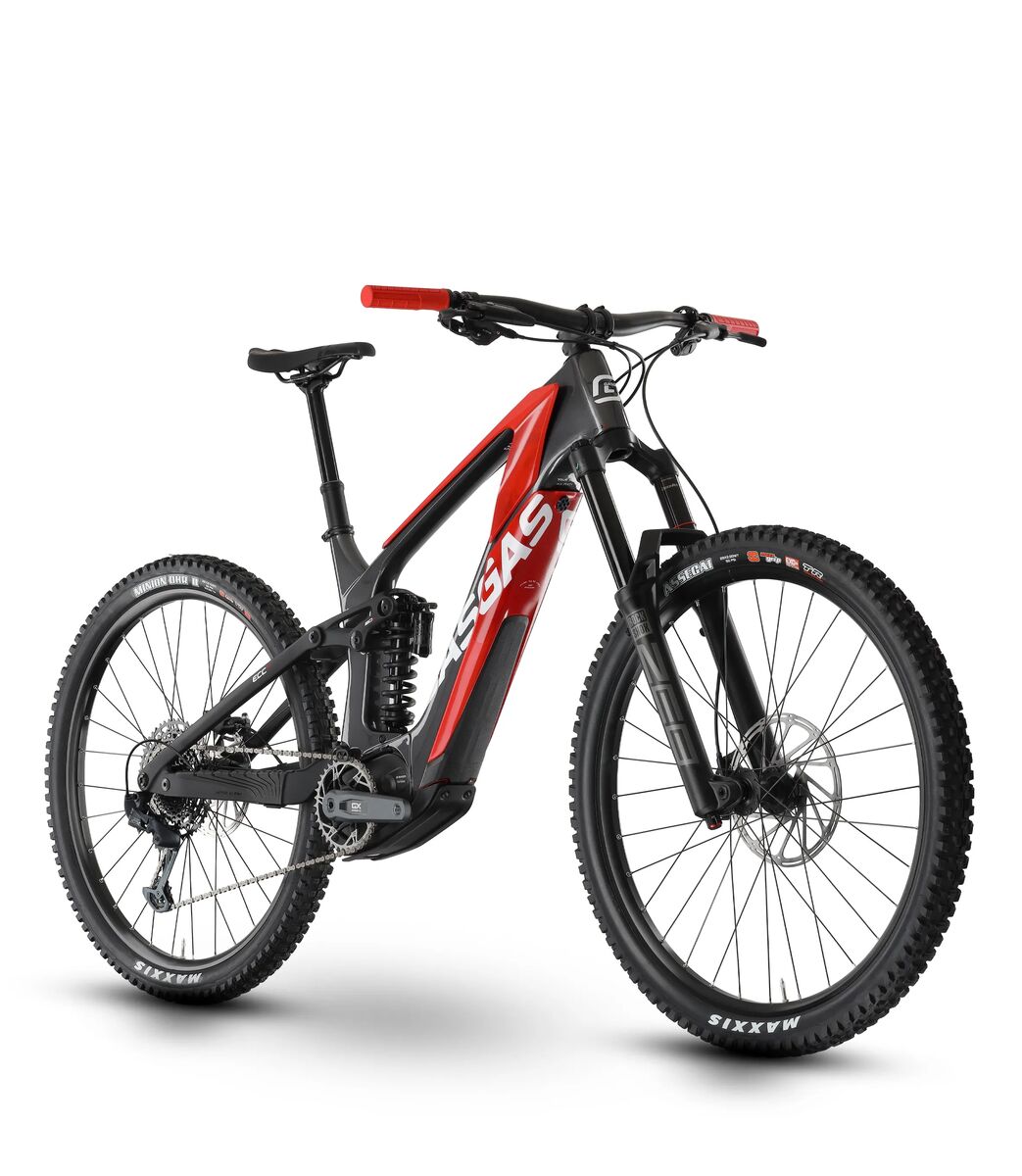

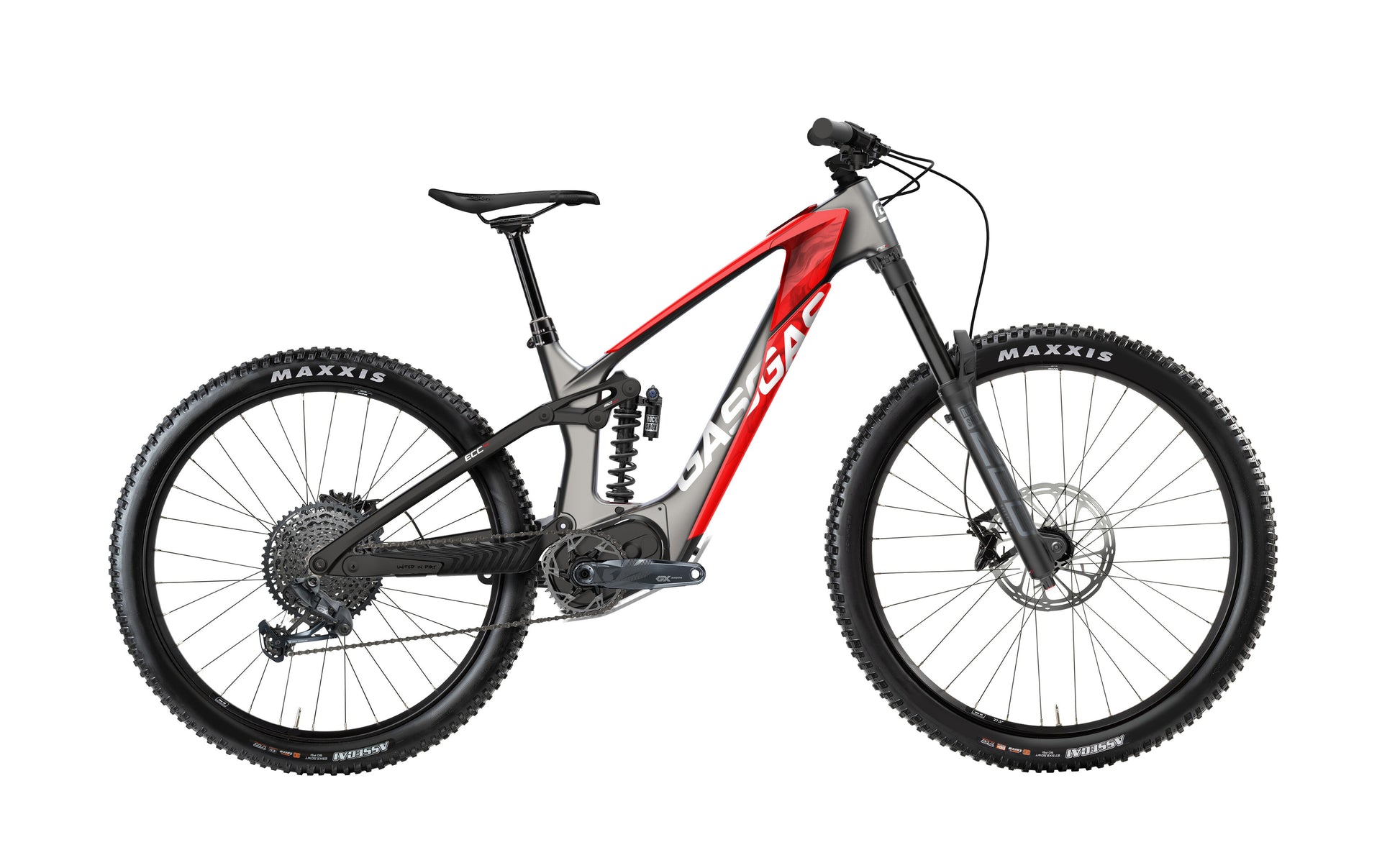

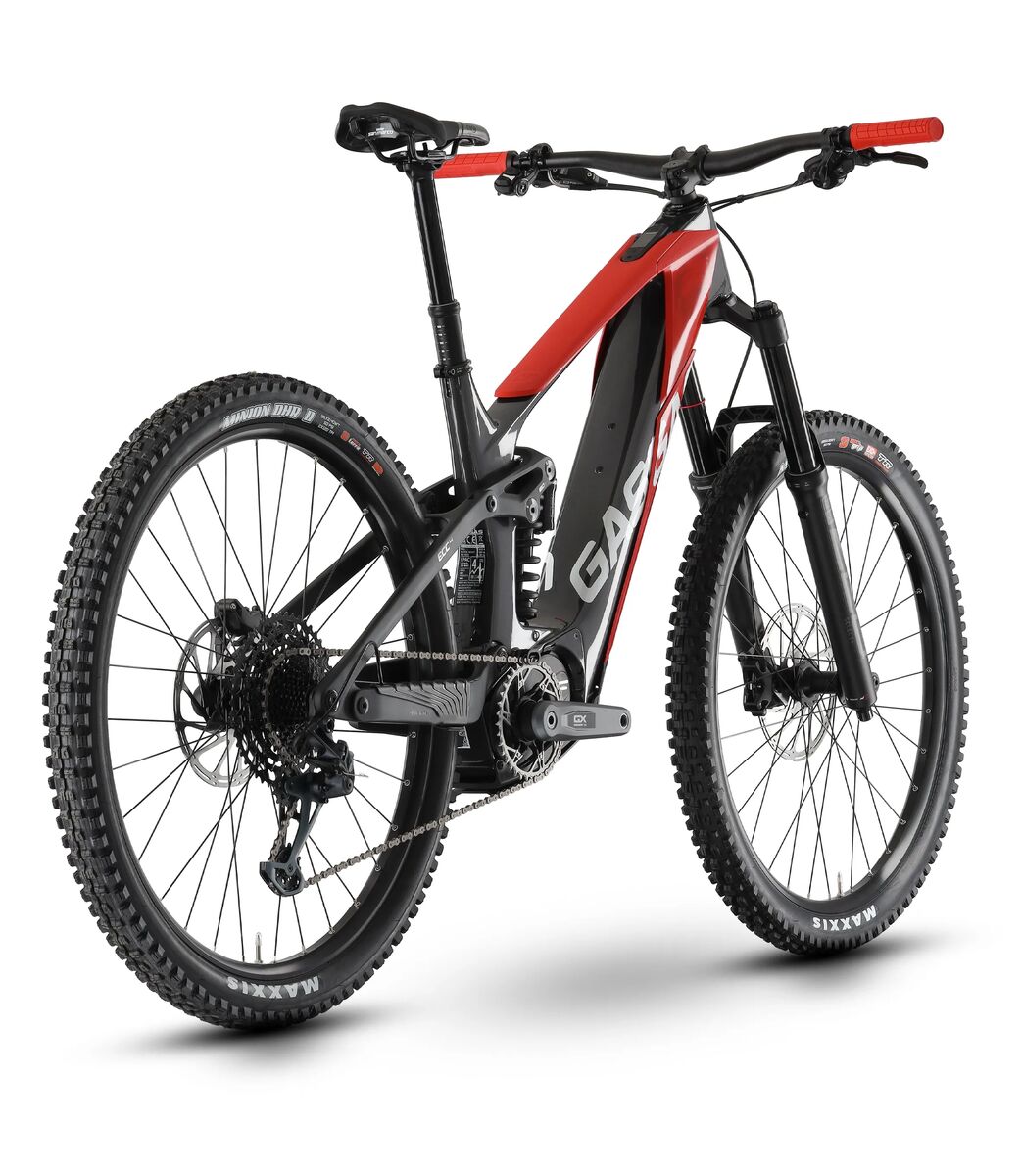

The ground-breaking ECC 4 completes our all-new E-Enduro eMTB range. With race proven, World Cup podium pedigree, the carbon frame, with size-specific rear triangle, creates an unrivalled ride feel that delivers superb handling on the toughest of trails.

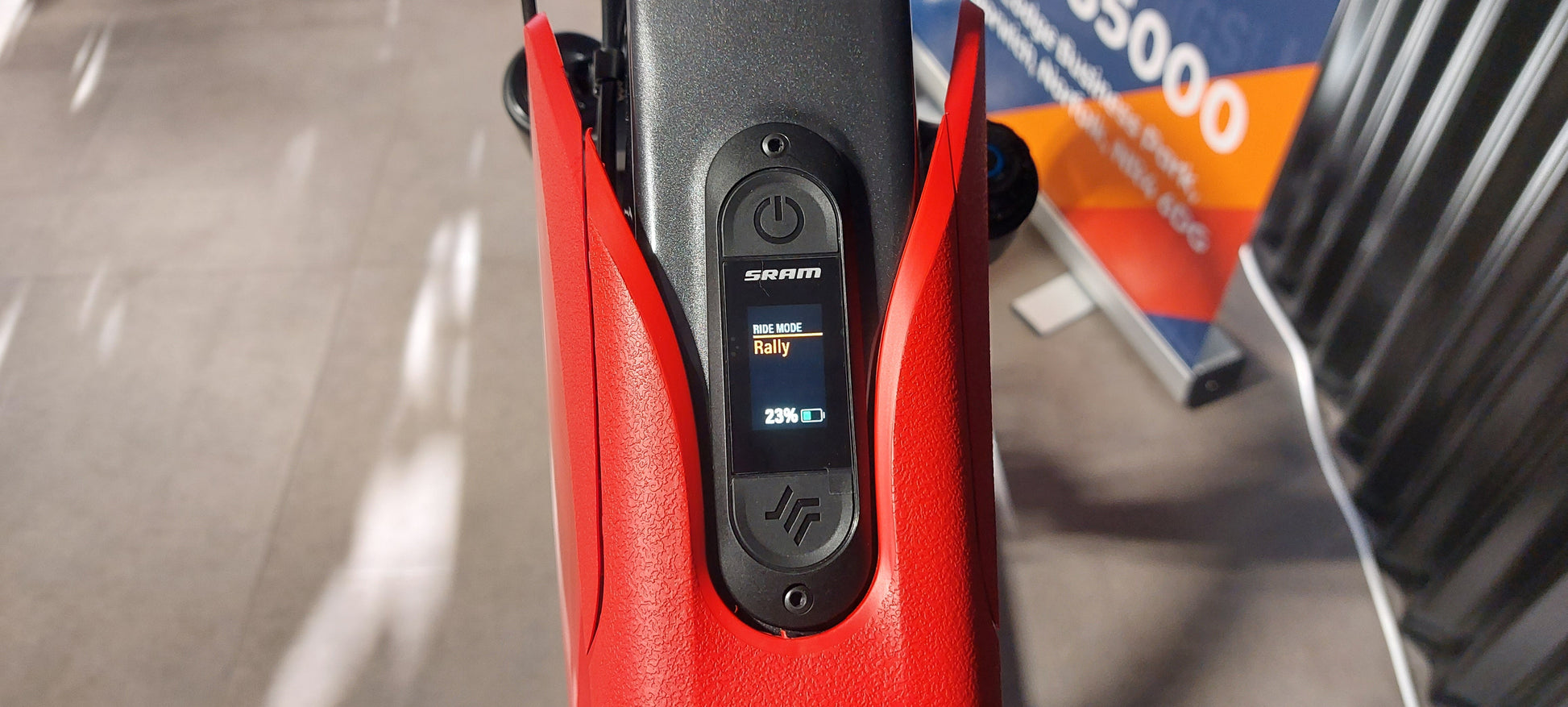

The highly anticipated SRAM Eagle Powertrain Drive Unit puts out 90Nm of torque and 680Wh peak power when you need it most. The battery is a 600Wh SRAM Eagle Powertrain. The top tube mounted SRAM Eagle Powertrain AXS Bridge Display displays all the key info you need, without creating a distraction on the trail.

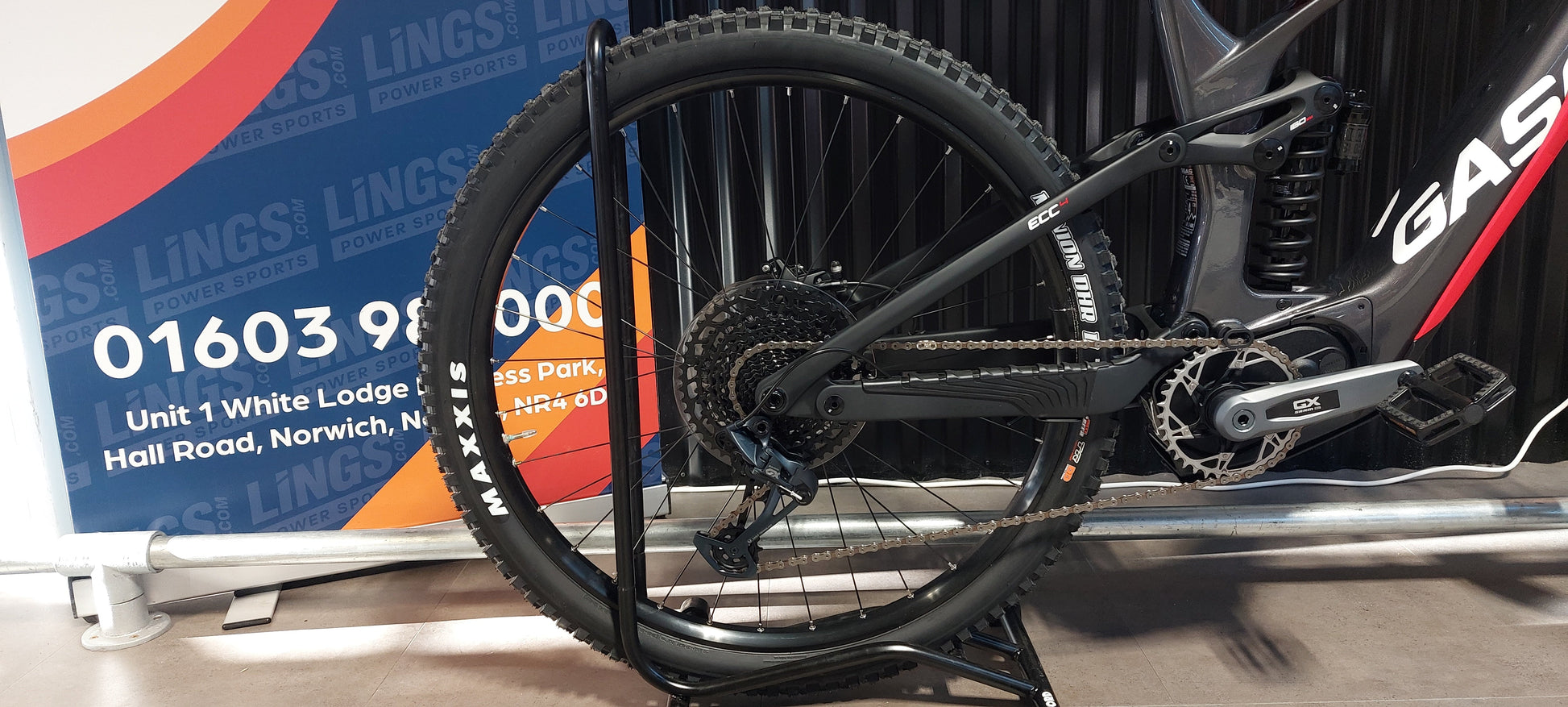

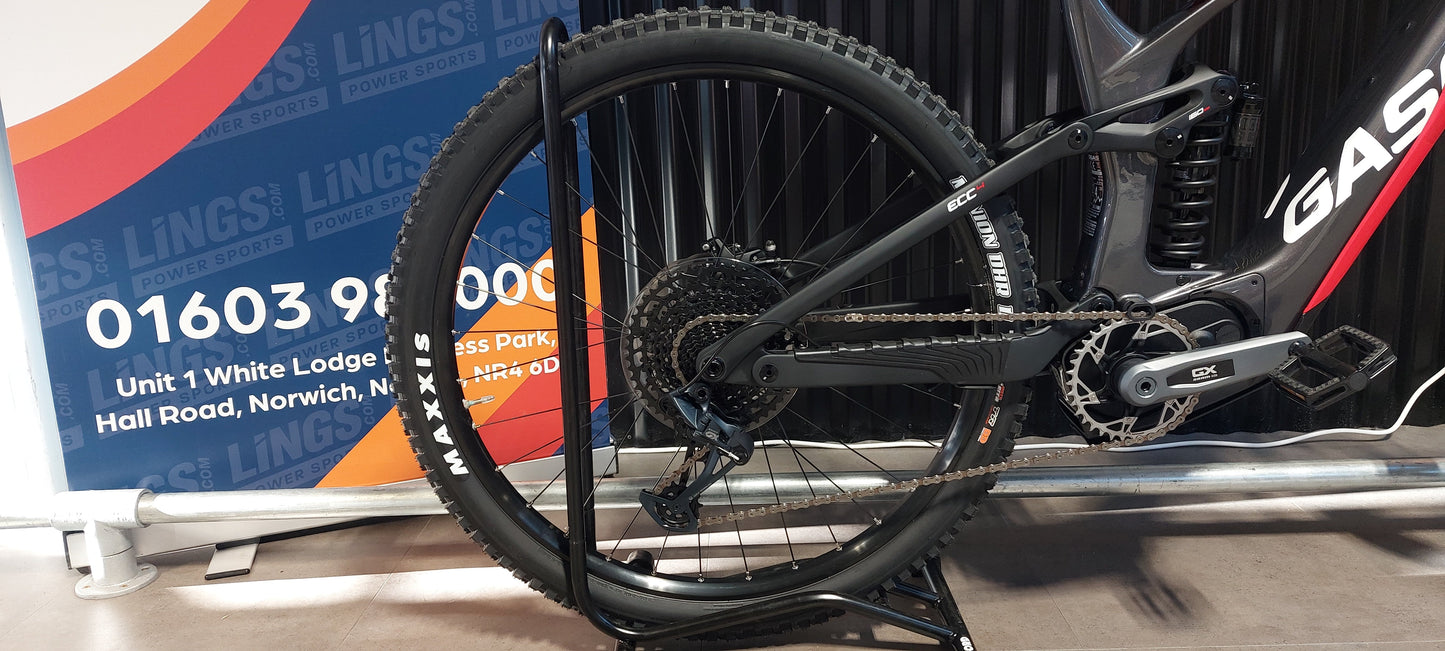

The SRAM components keep coming on the ECC 4 with a 12-speed GX Eagle drivetrain and GX Eagle crank arms, SRAM DB8 brakes sit on 200mm SRAM Centerline rotors.

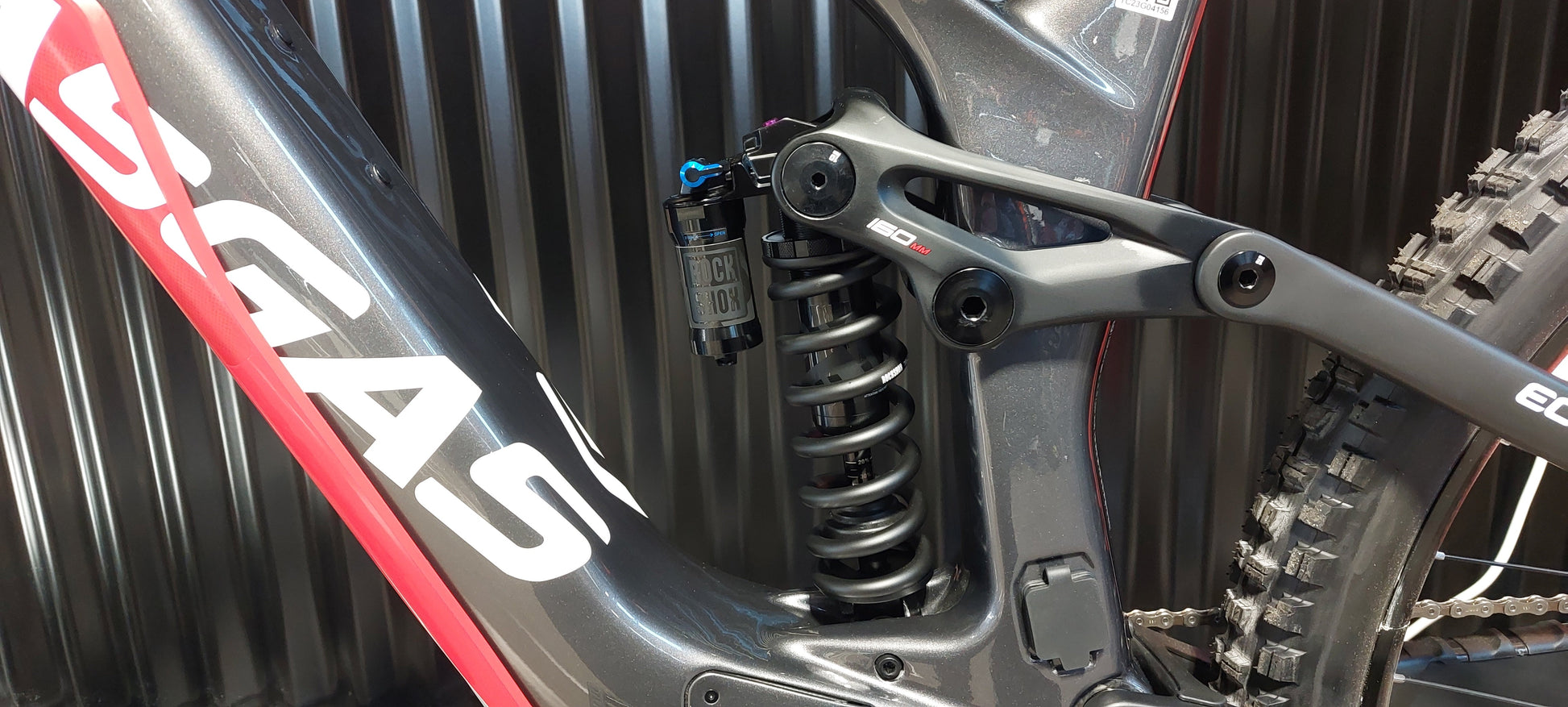

Enduro thrills are guaranteed thanks to a 170mm Rockshox ZEB Select+ front fork, with 160mm Super Deluxe Select+ rear coil shock.

Specification

MOTOR: SRAM Eagle Powertrain Drive Unit, 90nm
BATTERY: SRAM Eagle Powertrain, 630wh

FORK: RockShox ZEB Select+, DebonAir+, Air, 170 mm
SHOCK: RockShox Super Deluxe Select+, Coil, 205x65 mm
WHEELS: Mach 1 TRUCKY 30 (29")
TYRES: axxis Assegai 2.5, Maxxis Minion DHR II, 2.4

DERAILLEUR: SRAM SX Eagle, Single Click
SHIFTER: SRAM GX Eagle, 12-S
CHAIN: SRAM SX Eagle
CASSETTE: SRAM PG-1210, 11-50 T

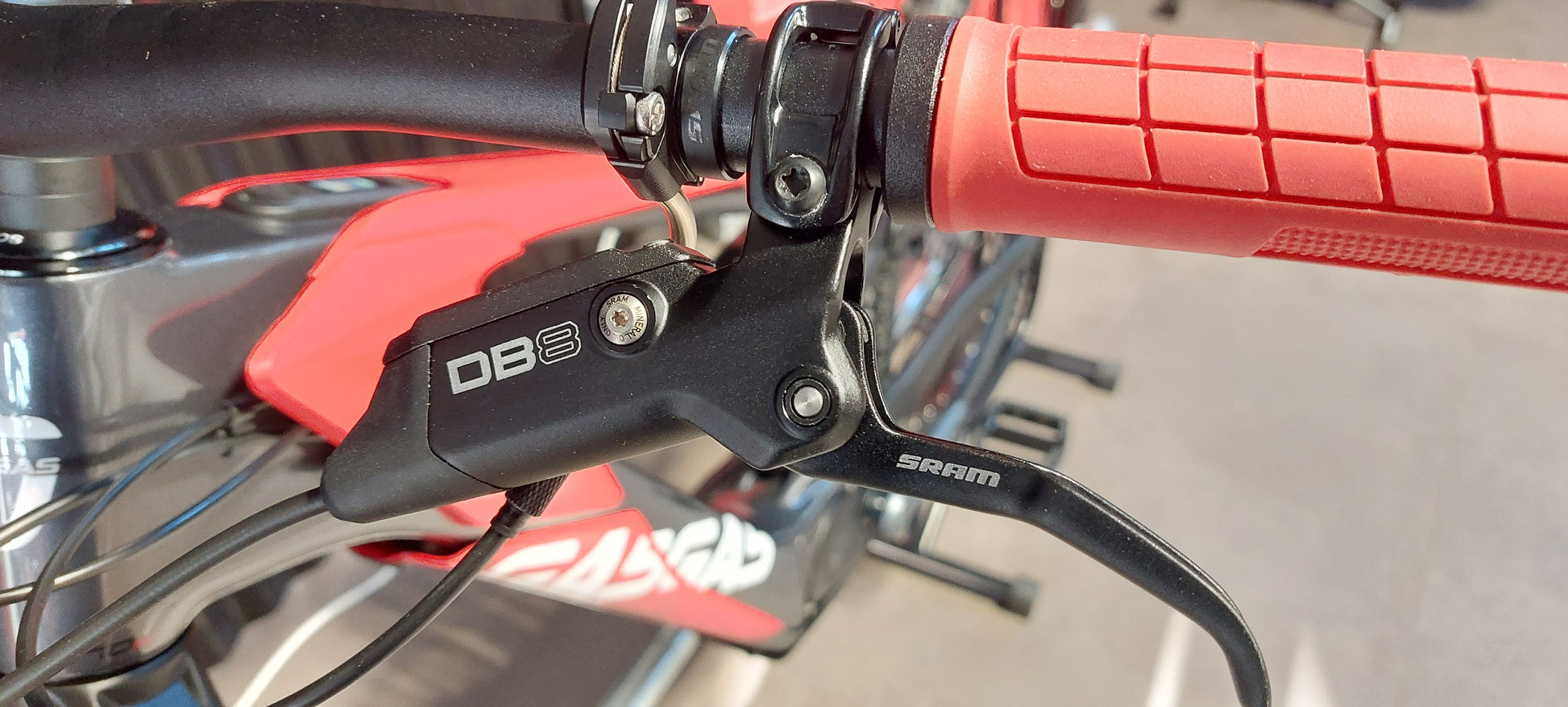

BRAKES: SRAM DB8, 4-piston
CRANKSET: SRAM GX Eagle eMTB, SRAM XX Eagle Transmission

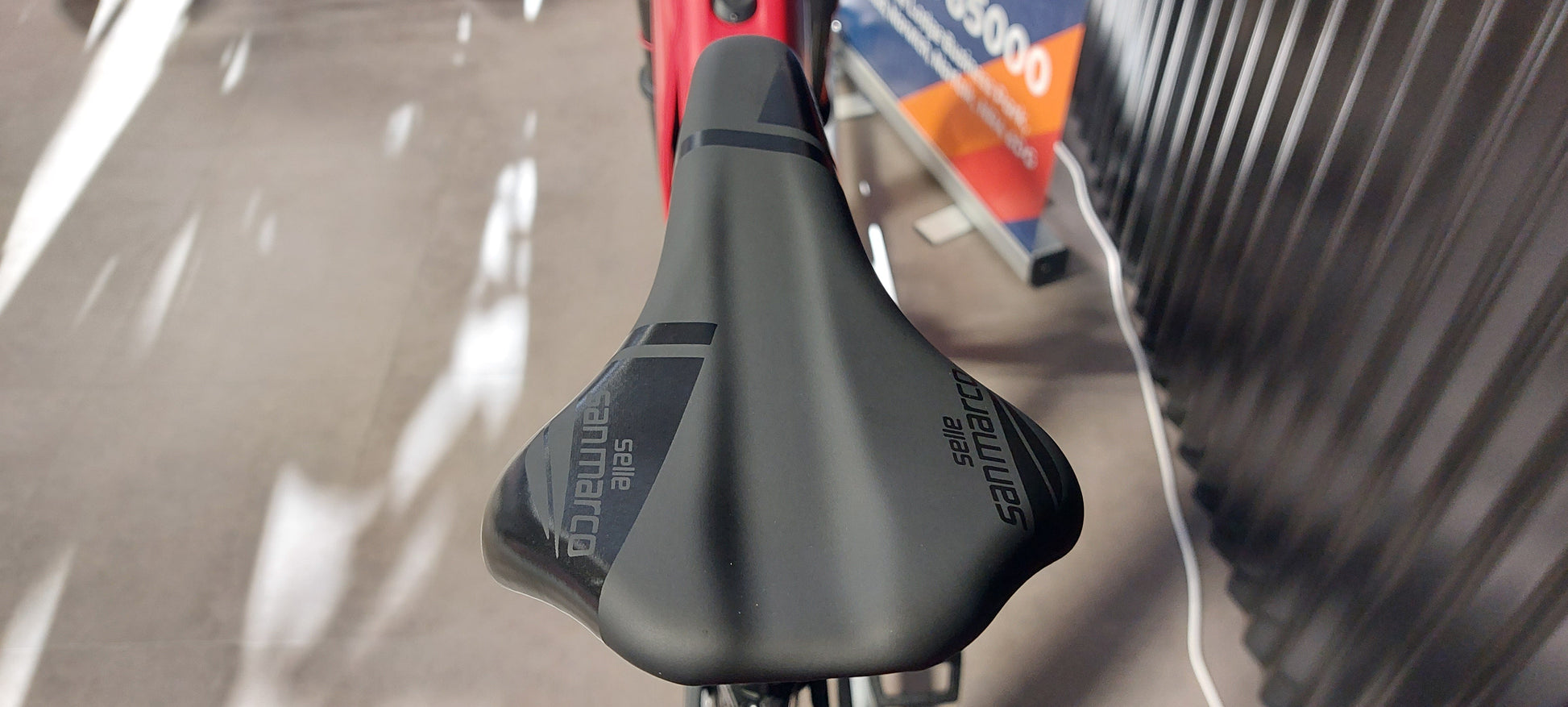

SADDLE: Selle San Marco GND
BARS: GASGAS Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm
STEM: GASGAS 35, 0 °
PEDDLES: GASGAS, aluminium

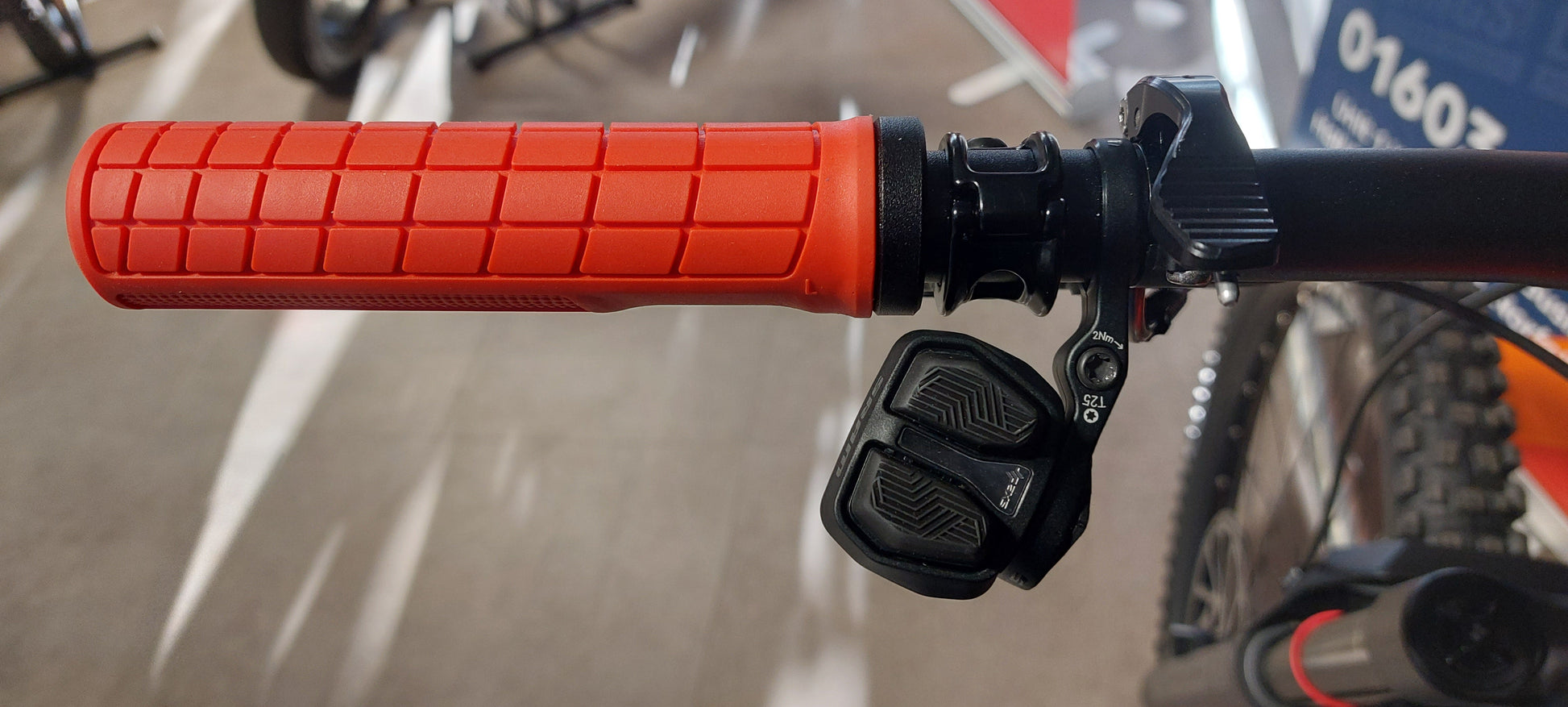

GRIPS: GASGAS MTB, Lock-on grips
SEAT POST: GASGAS Pro, 34.9 mm, Dropper post

    GEOMETRIES

    Bike Size S/M M/L L/XL
    Rider size

    153 - 186 cm

    5'0" - 6'1"

    163 - 196 cm

    5'3" - 6'4"

    178 - 214 cm

    5'8" - 7'0"
    GasGas Unisex Frame
    SIZE S/M M/L L/XL
    A - Top Tube Length 588 mm 613 mm 638 mm
    B - Seat Tube Length 400 mm 440 mm 470 mm

    C - Seat Tube Angle Virtual

    * - Seat Tube Angle Actual

    78°

    74.4°

    78.25°

    75.2°

    78.5°

    75.5°
    D - Head Tube Length 115 mm 130 mm 145 mm
    E - Headtube Angle 64° 64° 64°
    F - Chain Stay Length 461 mm 465mm 469mm
    G - Wheel Base 1257 mm 1289 mm 1325 mm
    I - BB-Drop 31.5 mm 31.5 mm 31.5 mm
    K - Stack 649 mm 663 mm 676 mm
    L - Reach 450 mm 475 mm 500 mm

    Please note, occasionally, manufacturers may change the specification without notice.
