ECC 5

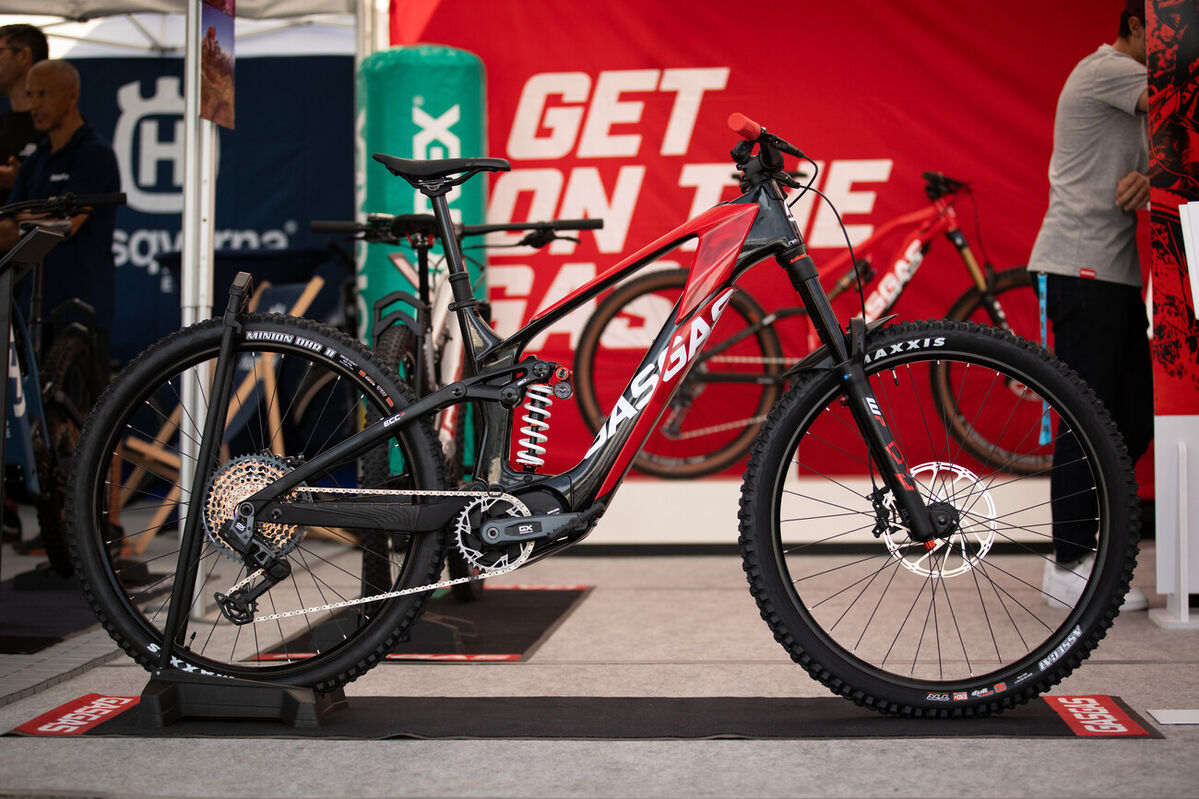

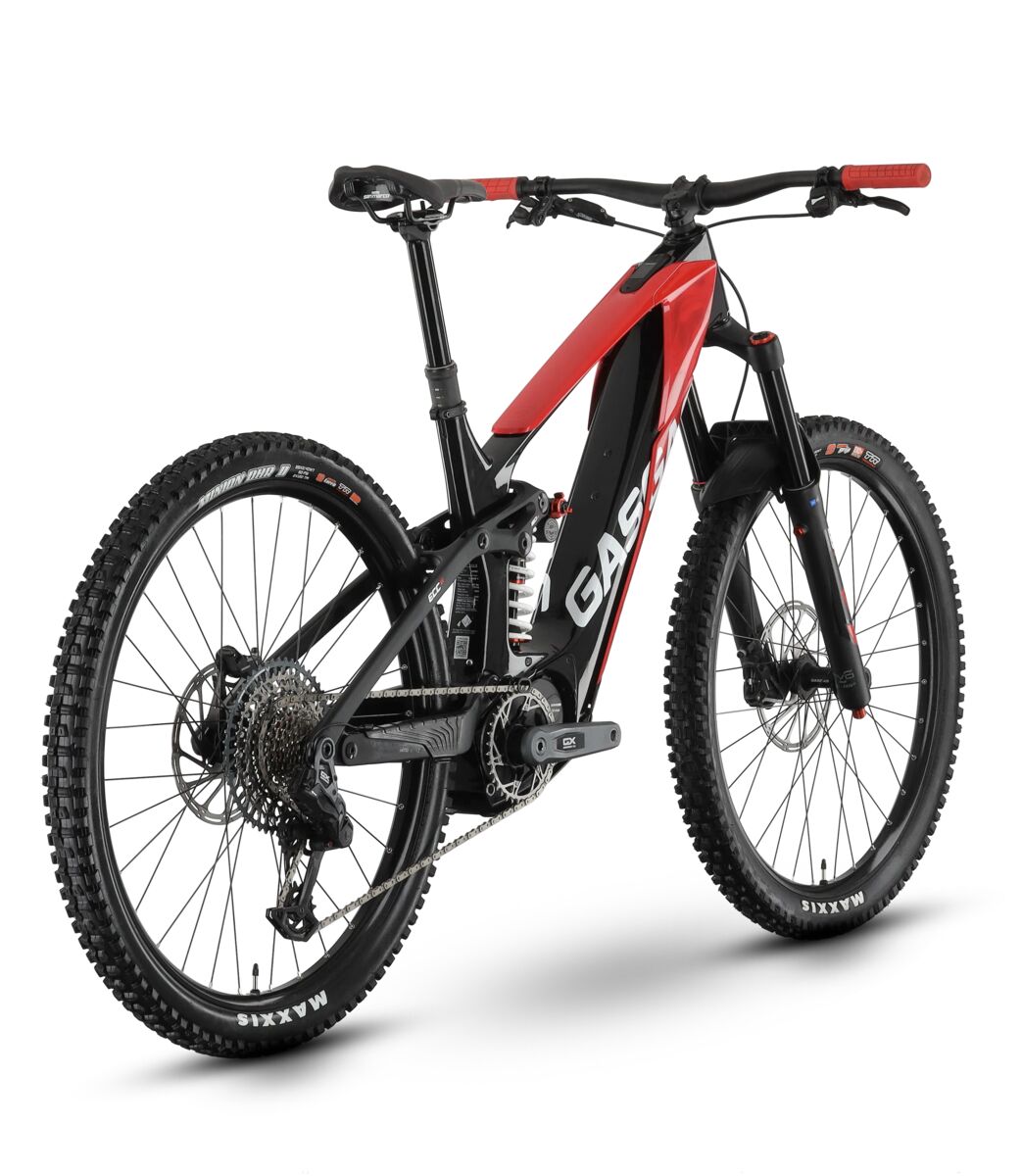

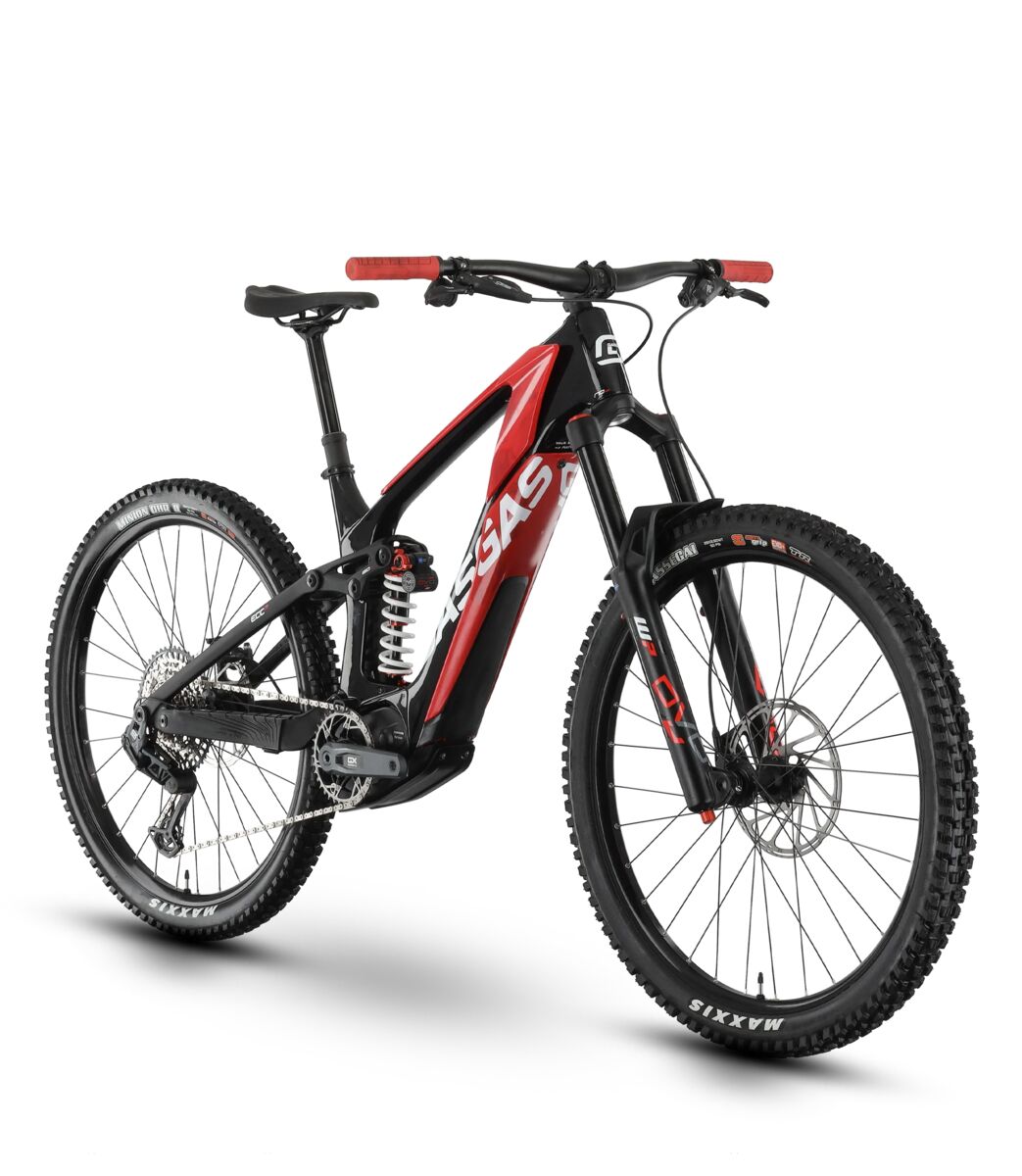

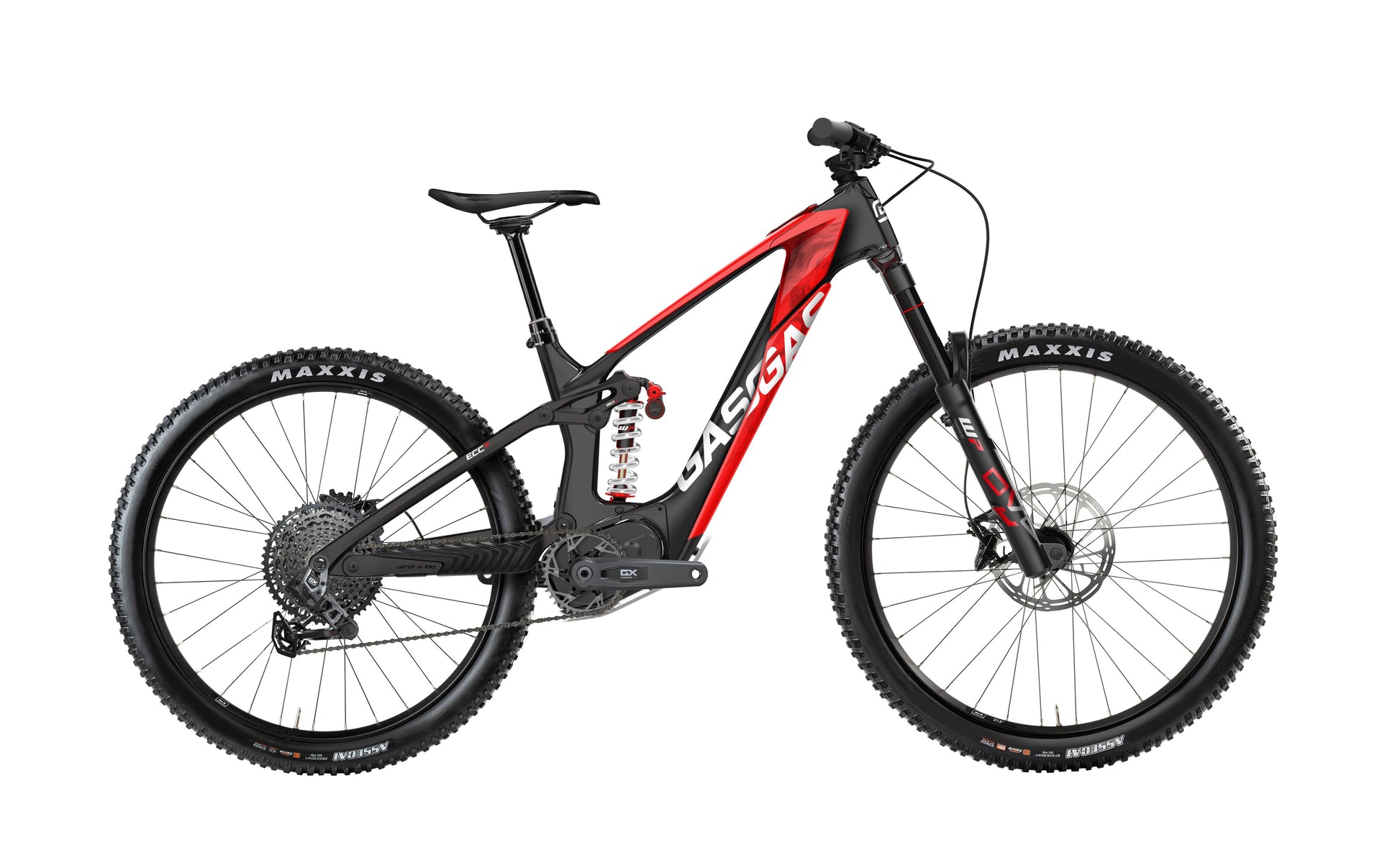

The ECC 5 is the second tier model in our totally new ECC E-Enduro range. The chassis mirrors that of the ECC 6 with a complete carbon frame and 160mm travel. Size-specific rear triangles are again standard, helping to raise the bar of a tailored ride feel and incredible trail agility.

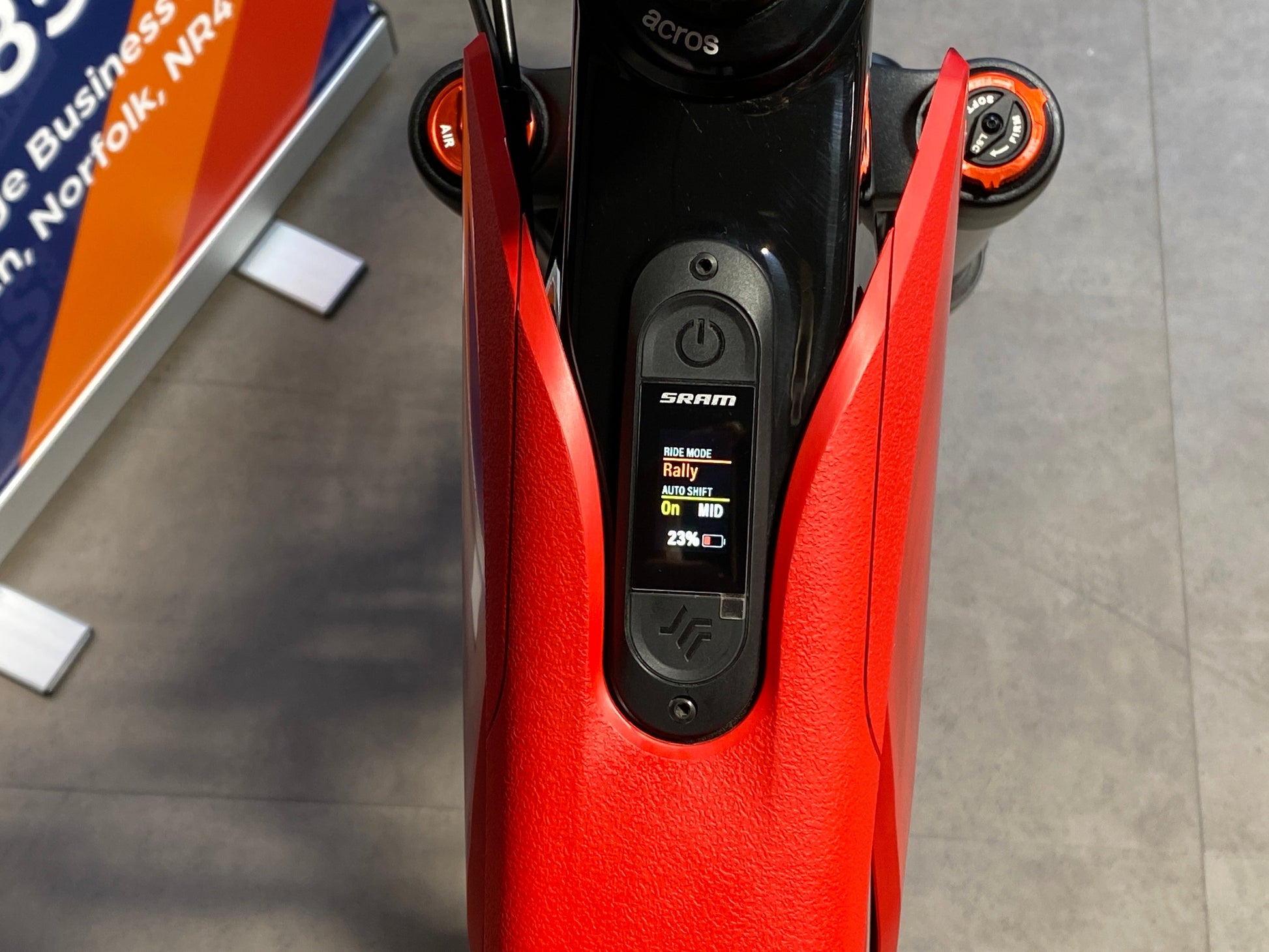

The eagerly awaited SRAM Eagle Powertrain Drive Unit delivers the ultimate pedal-assist technology on the market. Super-quiet, its 90Nm of torque and 680W peak power creates a natural pedalling experience. The discreet SRAM Eagle Powertrain AXS Bridge Display is mounted in the top tube, with a SRAM Eagle Powertrain 600Wh battery in the downtube.
In partnership with DVO, suspension is a 170mm WP 38CV SL air fork and WP CV Coil HLC rear shock.
Specification:
BATTERY: SRAM Eagle Powertrain, 630wh
FORK: DVO Onyx D1CV OTT, Air, 170 mm

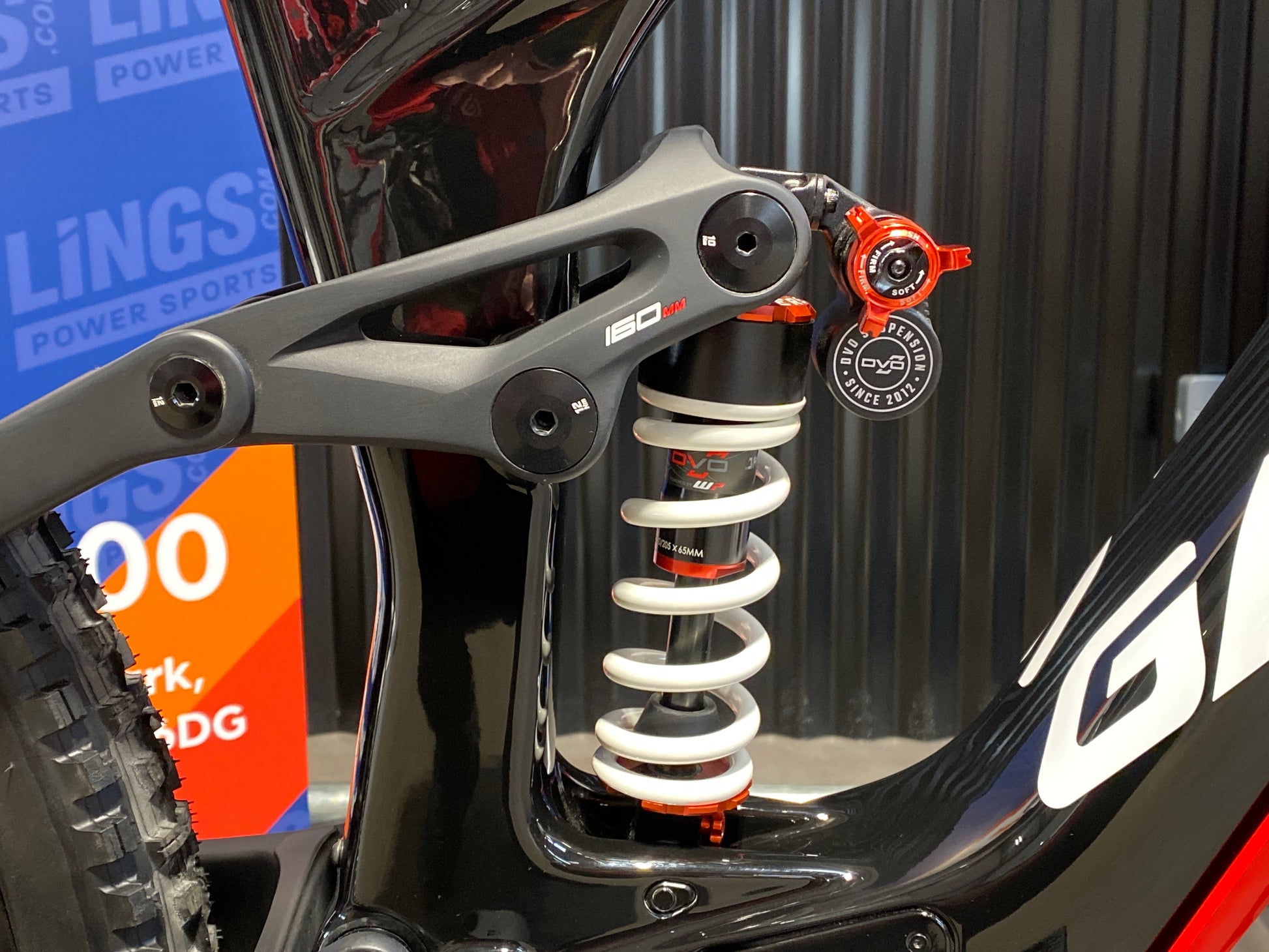

SHOCK: DVO JadeX CV, Coil, 205x65 mm
WHEELS: Mach 1 TRUCKY 30
TYRES: Maxxis Assegai 2.5, Maxxis Minion DHR II 2.4

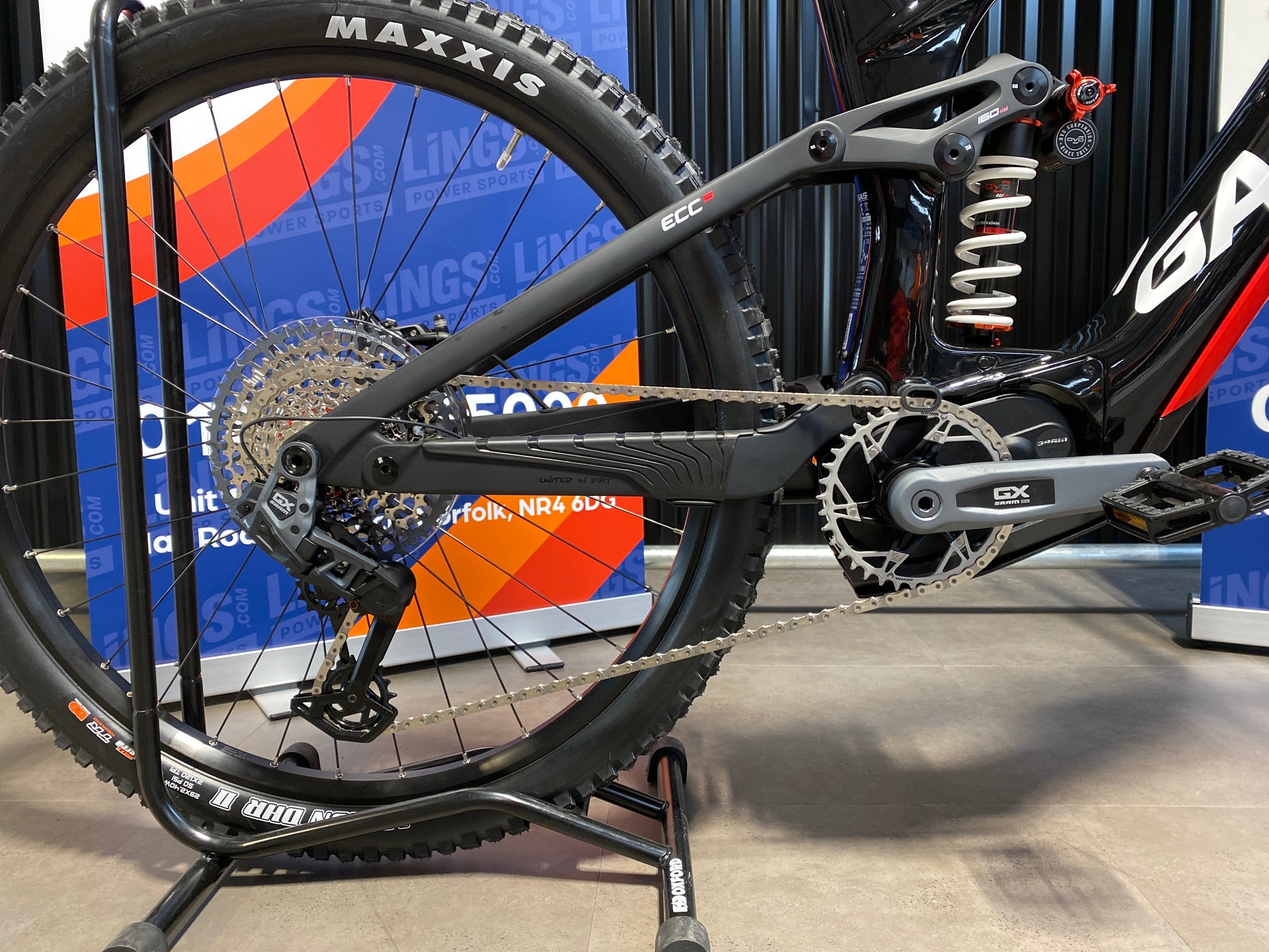

Derailleur: SRAM GX Eagle Transmission, 12S

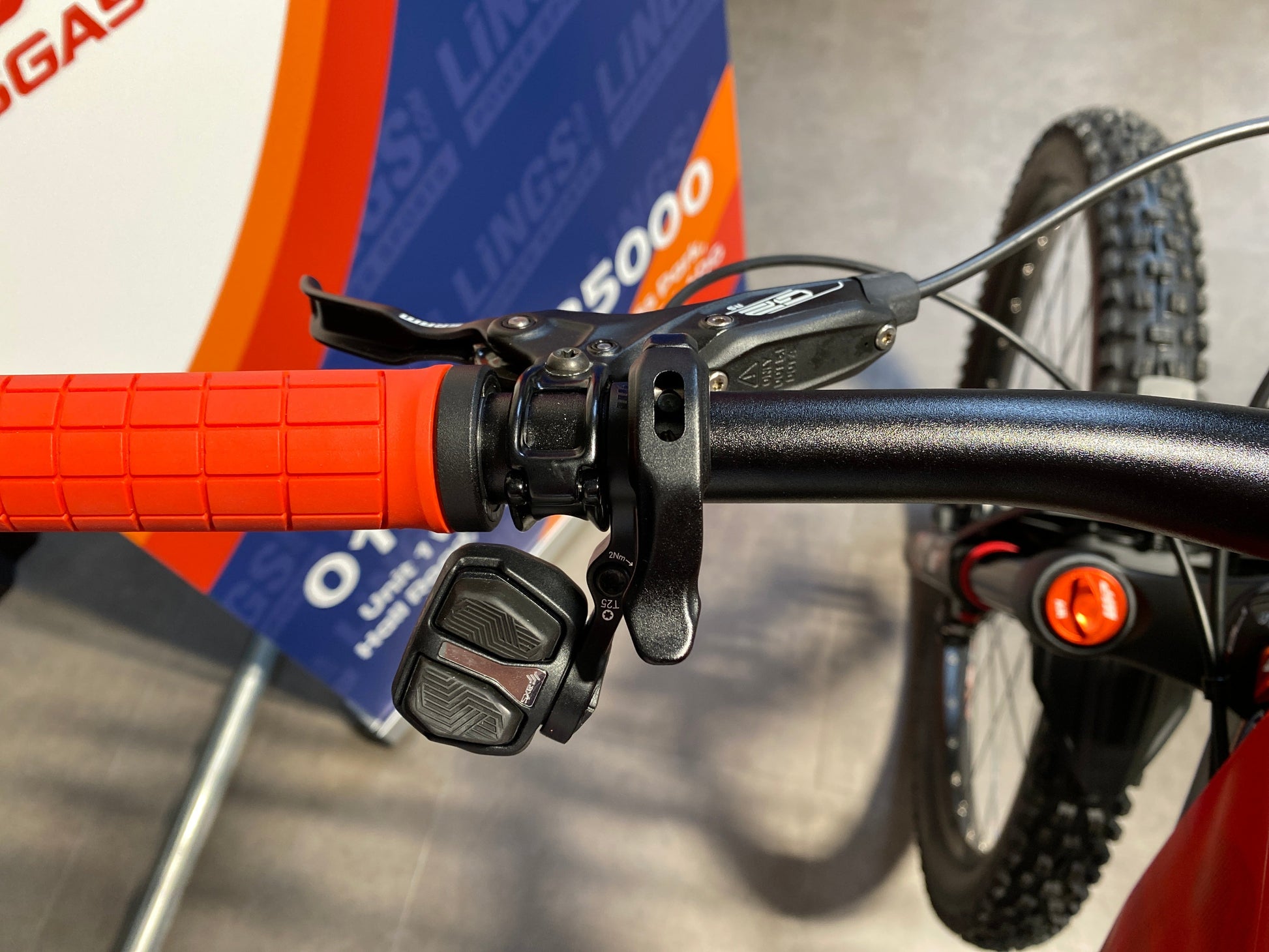

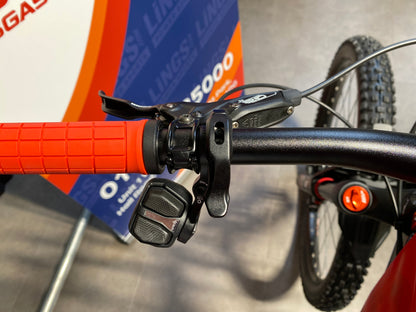

SHIFTER: SRAM AXS Pod Ultimate Controller
CHAIN: SRAM GX Eagle Transmission Flattop
CASSETTE: SRAM XS-1275, 10-52 T

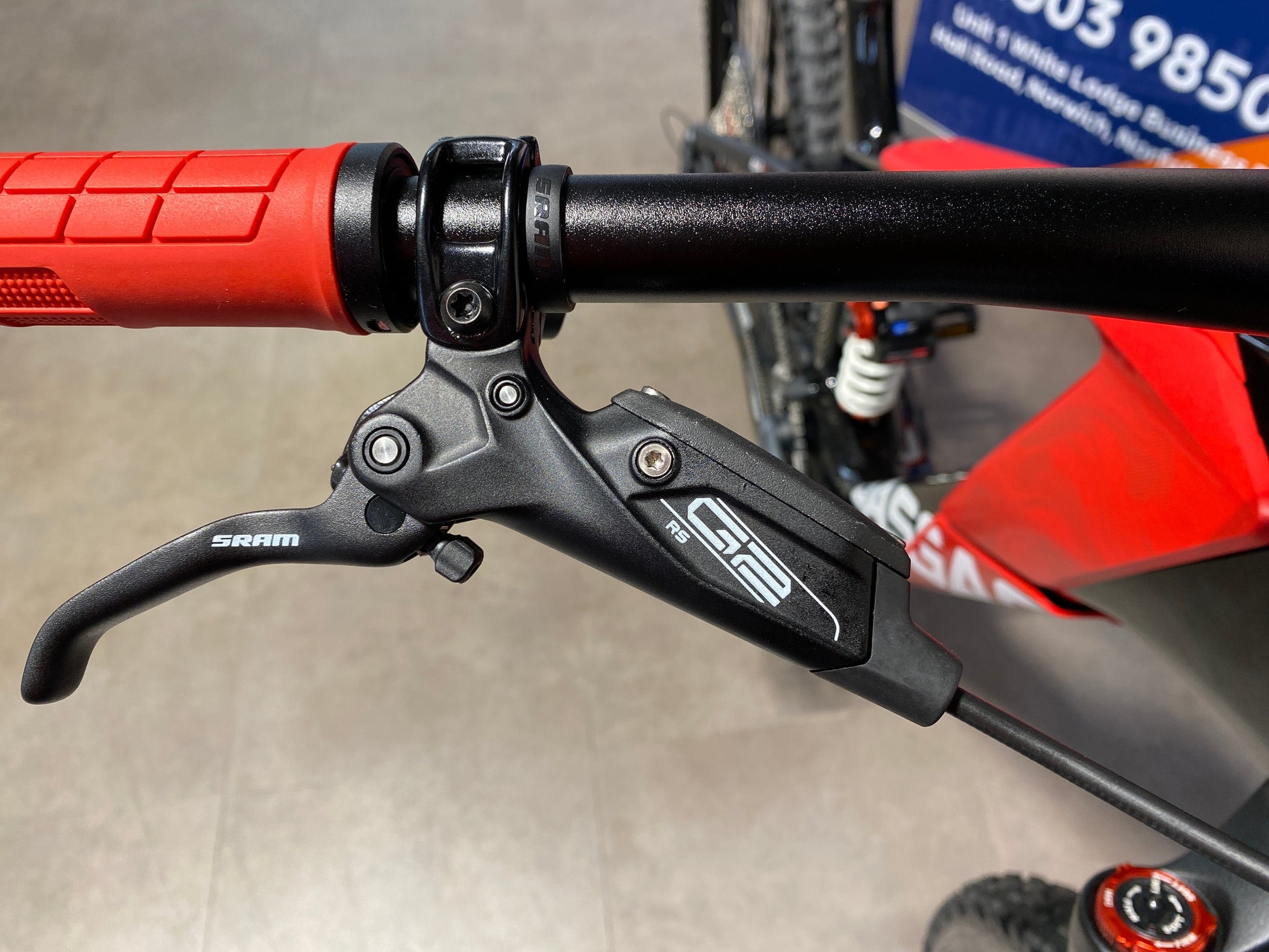

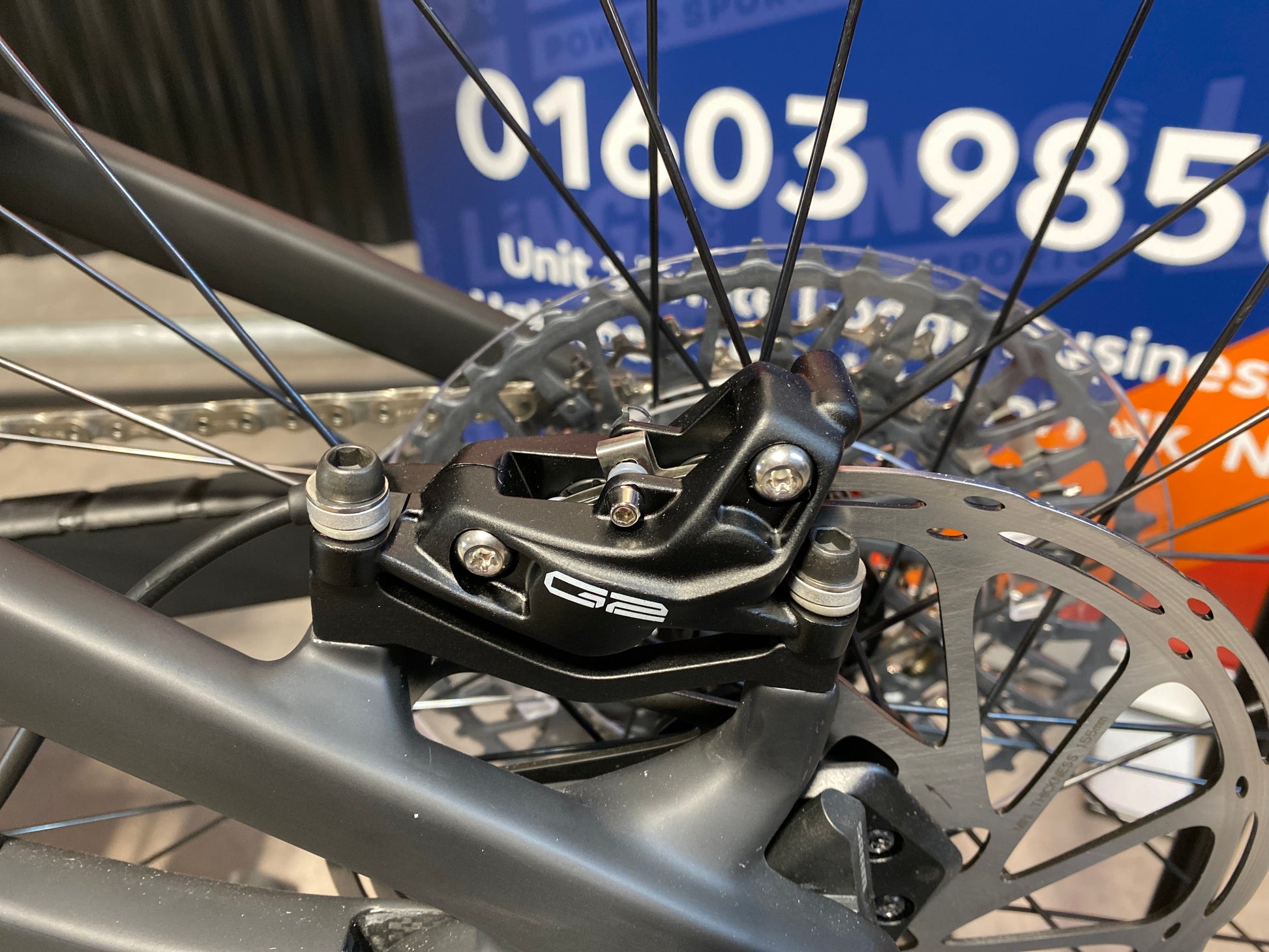

BRAKES: SRAM G2 RS, 4-piston, Hydraulic disc brake
CRANKSET:SRAM GX Eagle E-MTB, SRAM XX Eagle chainring
SADDLE: Selle San Marco GND
BARS: GASGAS Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm
STEM: GASGAS 35, 0 °, Ahead
PEDDLES: GASGAS, aluminum
GRIPS: GASGAS MTB, Lock-on grips

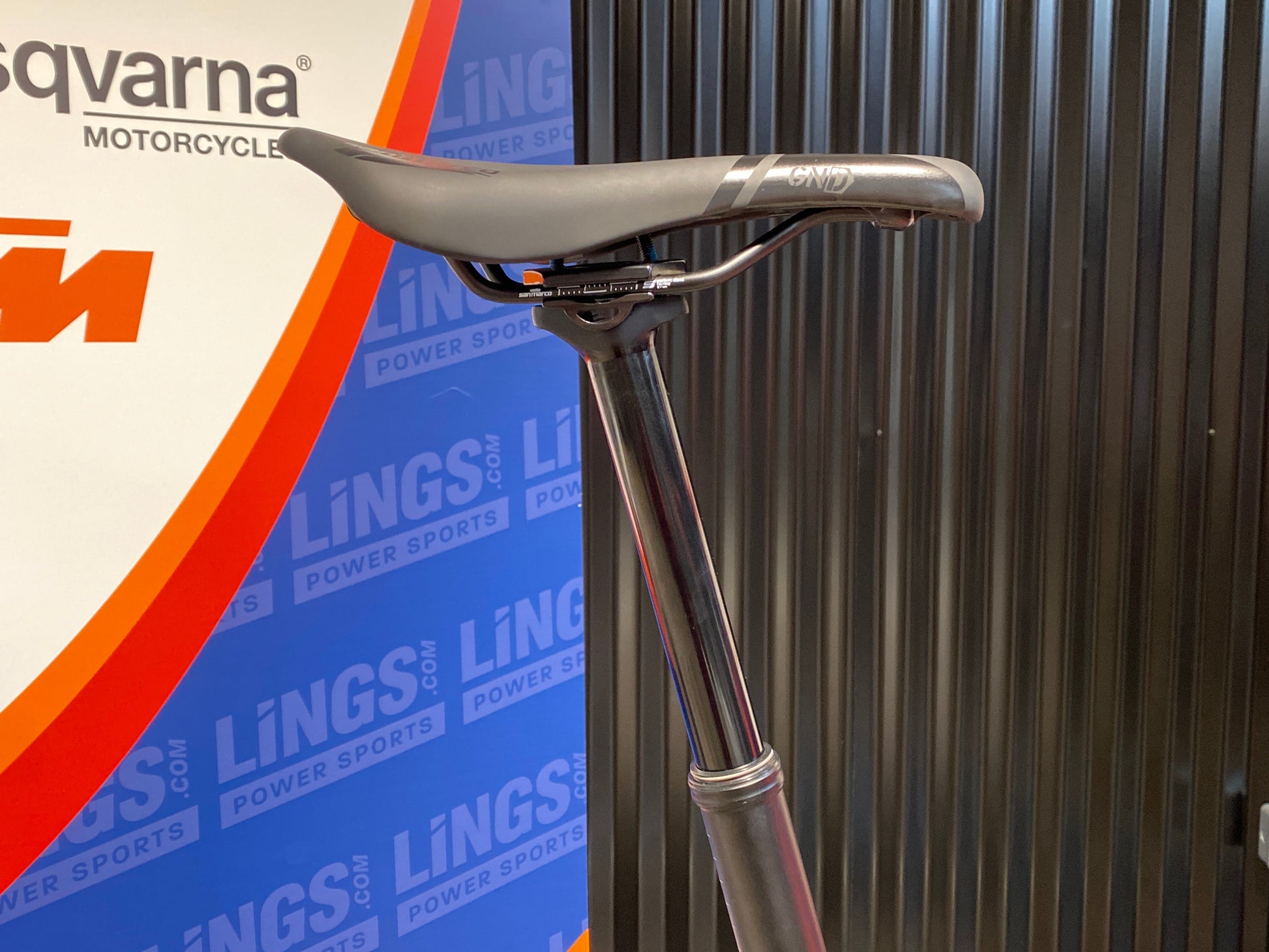

SEAT POST: GASGAS Pro, 34.9 mm, Dropper post
PERMISSIBLE TOTAL VEHICLE WEIGHT: 130kg
GEOMETRIES
| Bike Size | S/M | M/L | L/XL |
| Rider size |
153 - 186 cm 5'0" - 6'1" |
163 - 196 cm 5'3" - 6'4" |
178 - 214 cm 5'8" - 7'0" |
| SIZE | S/M | M/L | L/XL | |
| A - Top Tube Length | 588 mm | 613 mm | 638 mm | |
| B - Seat Tube Length | 400 mm | 440 mm | 470 mm | |
|
C - Seat Tube Angle Virtual * - Seat Tube Angle Actual |
78° 74.4° |
78.25° 75.2° |
78.5° 75.5° |
|
| D - Head Tube Length | 115 mm | 130 mm | 145 mm | |
| E - Headtube Angle | 64° | 64° | 64° | |
| F - Chain Stay Length | 461 mm | 465mm | 469mm | |
| G - Wheel Base | 1257 mm | 1289 mm | 1325 mm | |
| I - BB-Drop | 31.5 mm | 31.5 mm | 31.5 mm | |
| K - Stack | 649 mm | 663 mm | 676 mm | |
| L - Reach | 450 mm | 475 mm | 500 mm |
Please note, occasionally, manufacturers may change the specification without notice.
