GasGas ECC 6 - Ex-demo
GasGas ECC 6 - Ex-demo
Couldn't load pickup availability

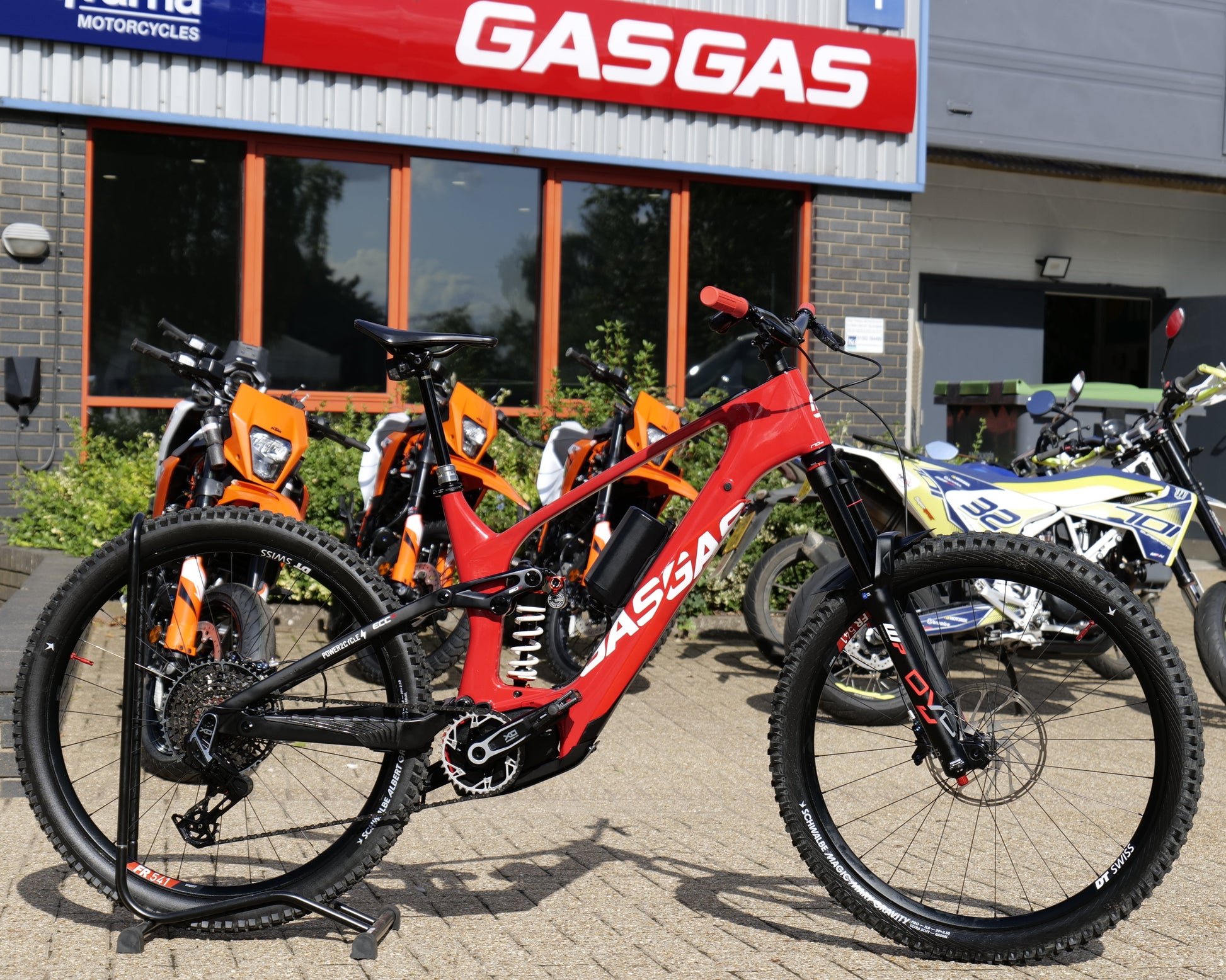

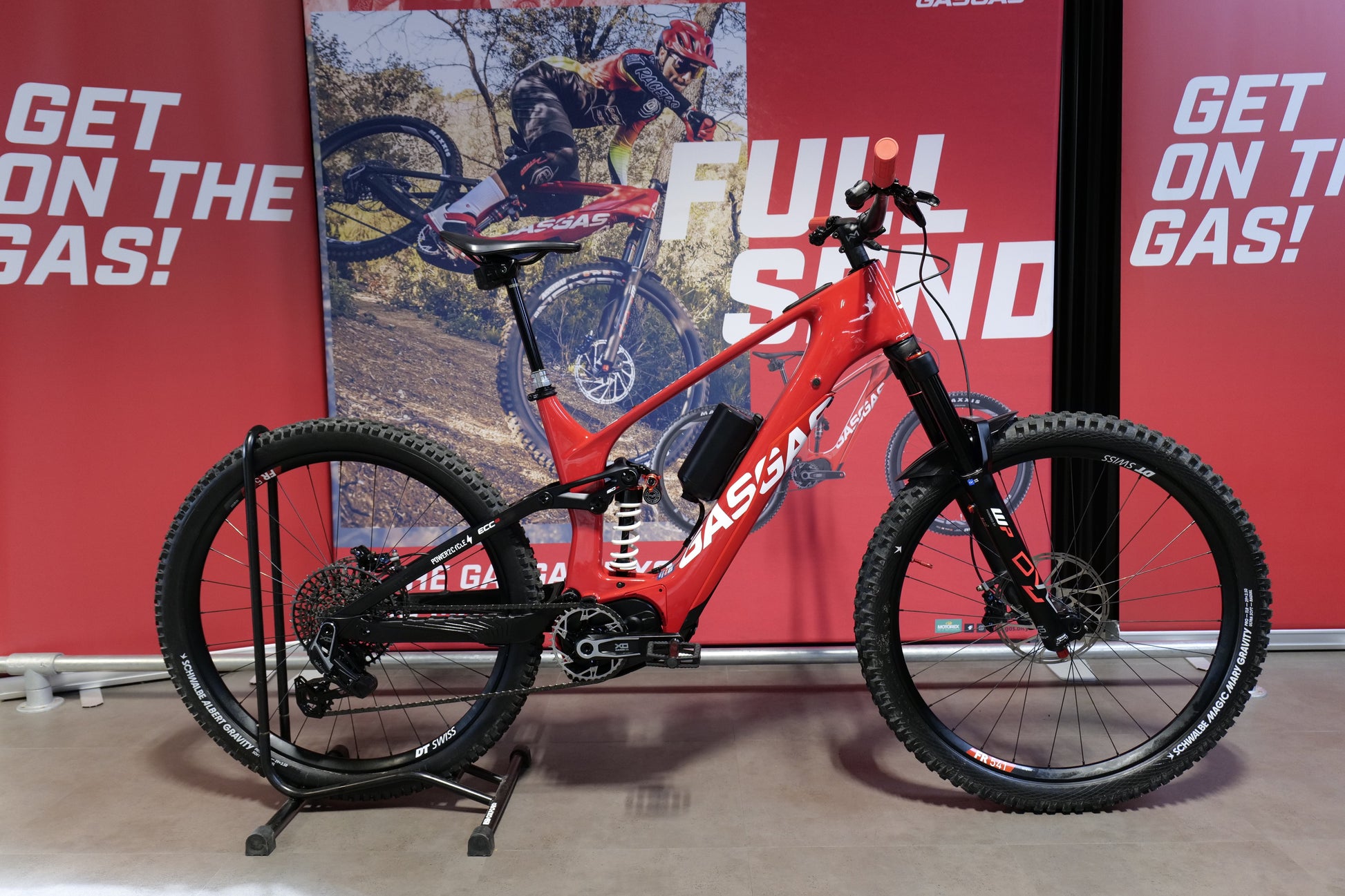

The ECC 6 is GasGas' top tier Enduro E-MTB and we've pushed it even further fitting the bomb proof DT Swiss FR541 rims set up tubeless with Magic Mary and Albert tyres from schwable. Its competition level full-carbon frame features a racing geometry and pairs to size-specific rear-ends. SRAM's drivetrain features a 12-speed XO Eagle Transmission, Code RSC brakes, and wireless RockShox Reverb AXS dropper keeps things clean and uncluttered.
DVO suspension with WP
The ECC 6 comes with totally new WP suspension developed in partnership with DVO. A 170mm travel, 38mm diameter fork and shock feature WP's cone valve technology to optimize traction and control.
SRAM Eagle Powertrain
The SRAM Eagle Powertrain Drive Unit delivers a superb 90 Nm of torque and 680W peak power. Super quiet, it replicates a natural pedaling experience. Coupled with the 630 Wh SRAM Eagle Powertrain battery ensures a perfect balance of weight and range are met.
MOTOR: SRAM Eagle Powertrain Drive Unit, 90nm
BATTERY: SRAM Eagle Powertrain, 630wh + range extender

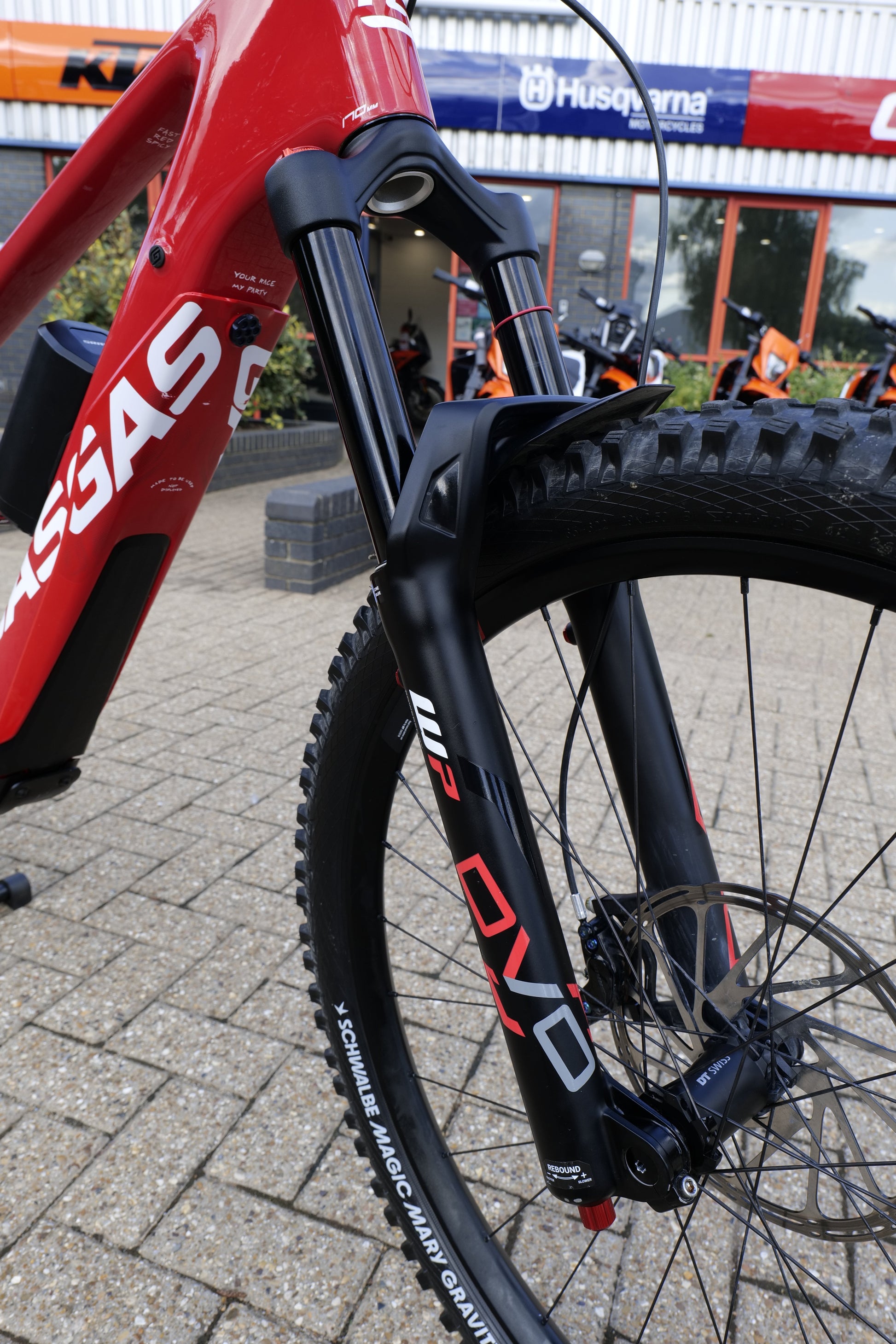

FORK: DVO Onyx D1CV OTT, Air, 170 mm

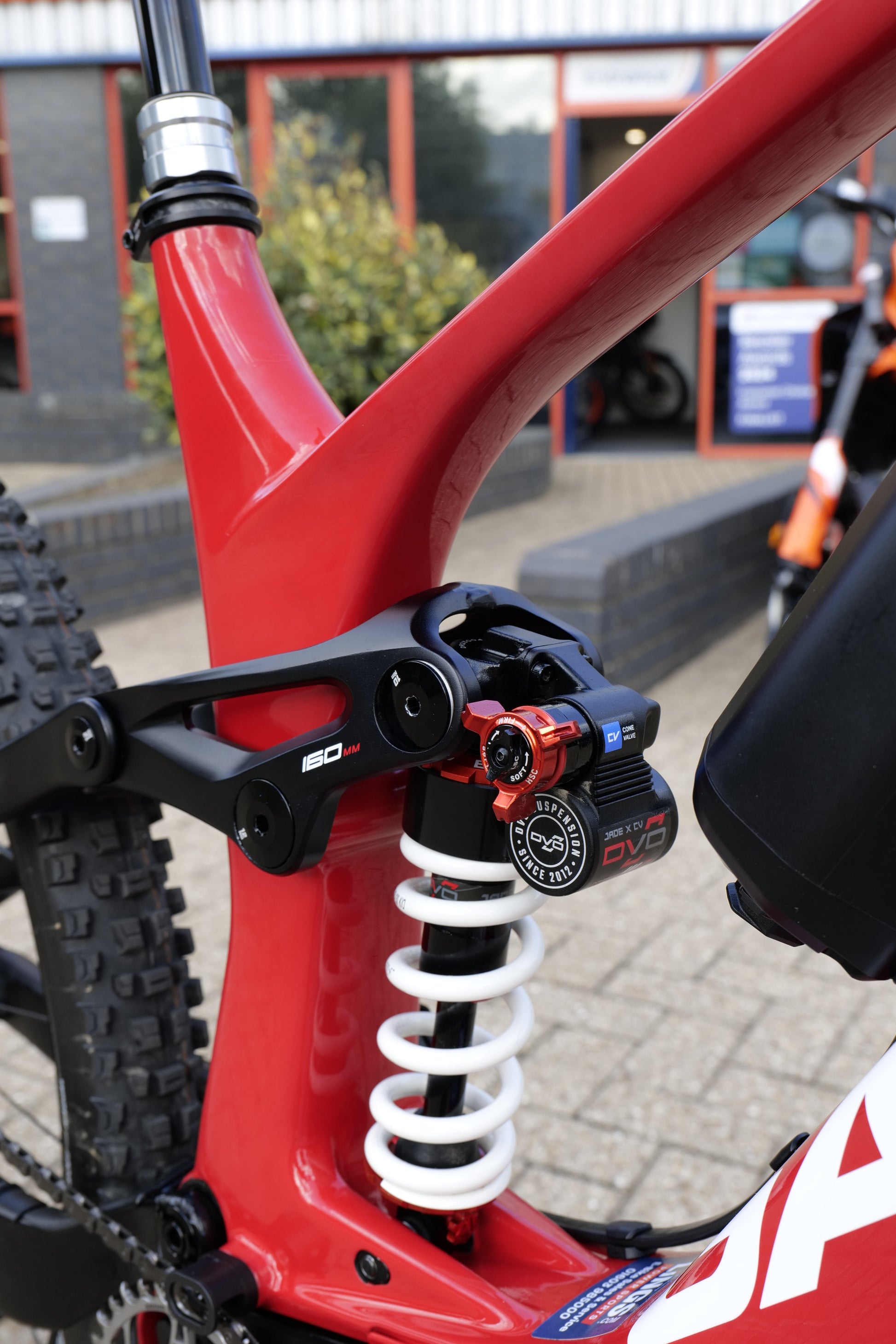

SHOCK: DVO JadeX CV, Coil, 205x65 mm
WHEELS: DT Swiss FR541/DT240
TYRES: Magic Mary Gravity 2.5

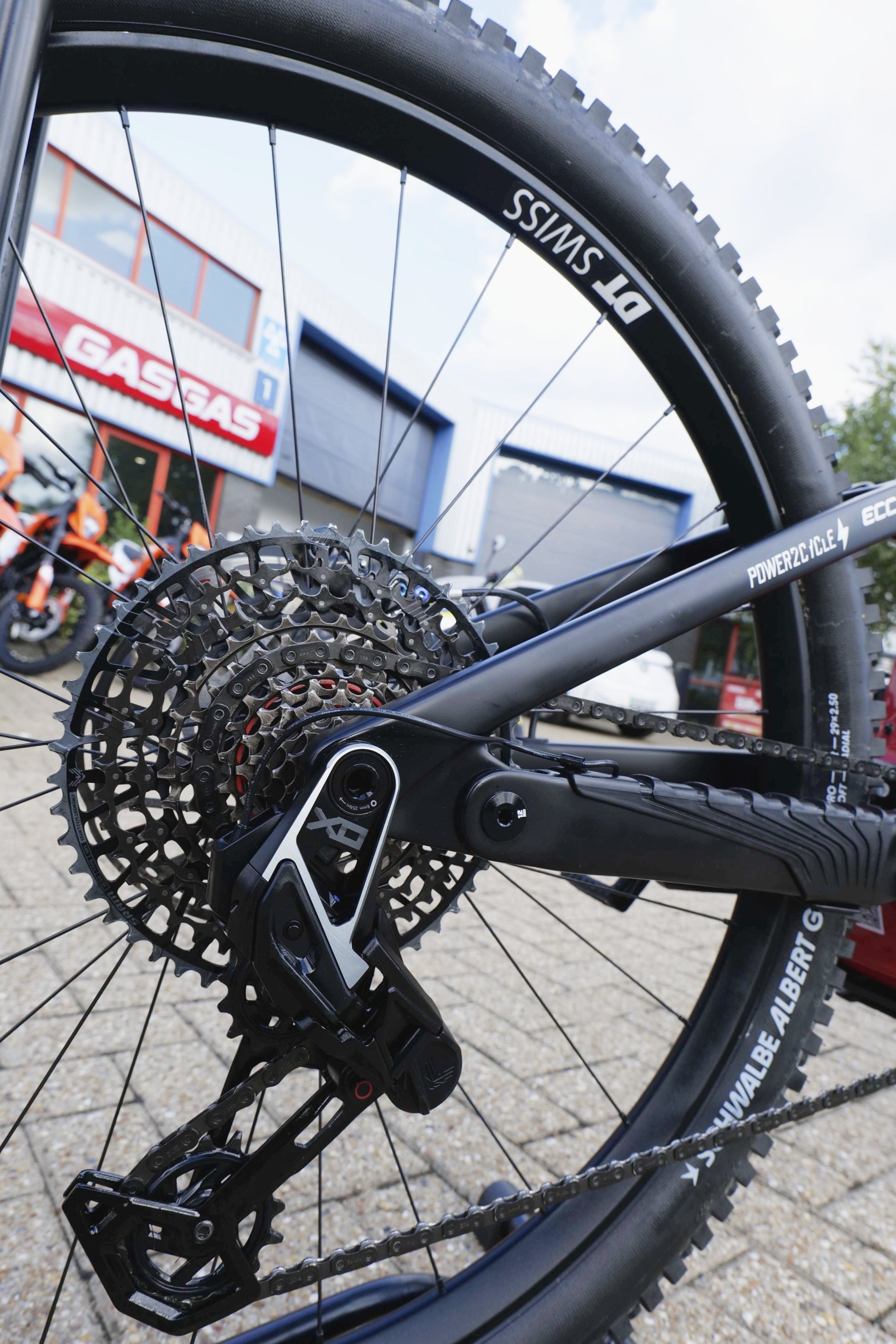

DERAILLEUR: SRAM X0 Eagle Transmission, 12-S
SHIFTER: SRAM AXS Pod Ultimate Controller

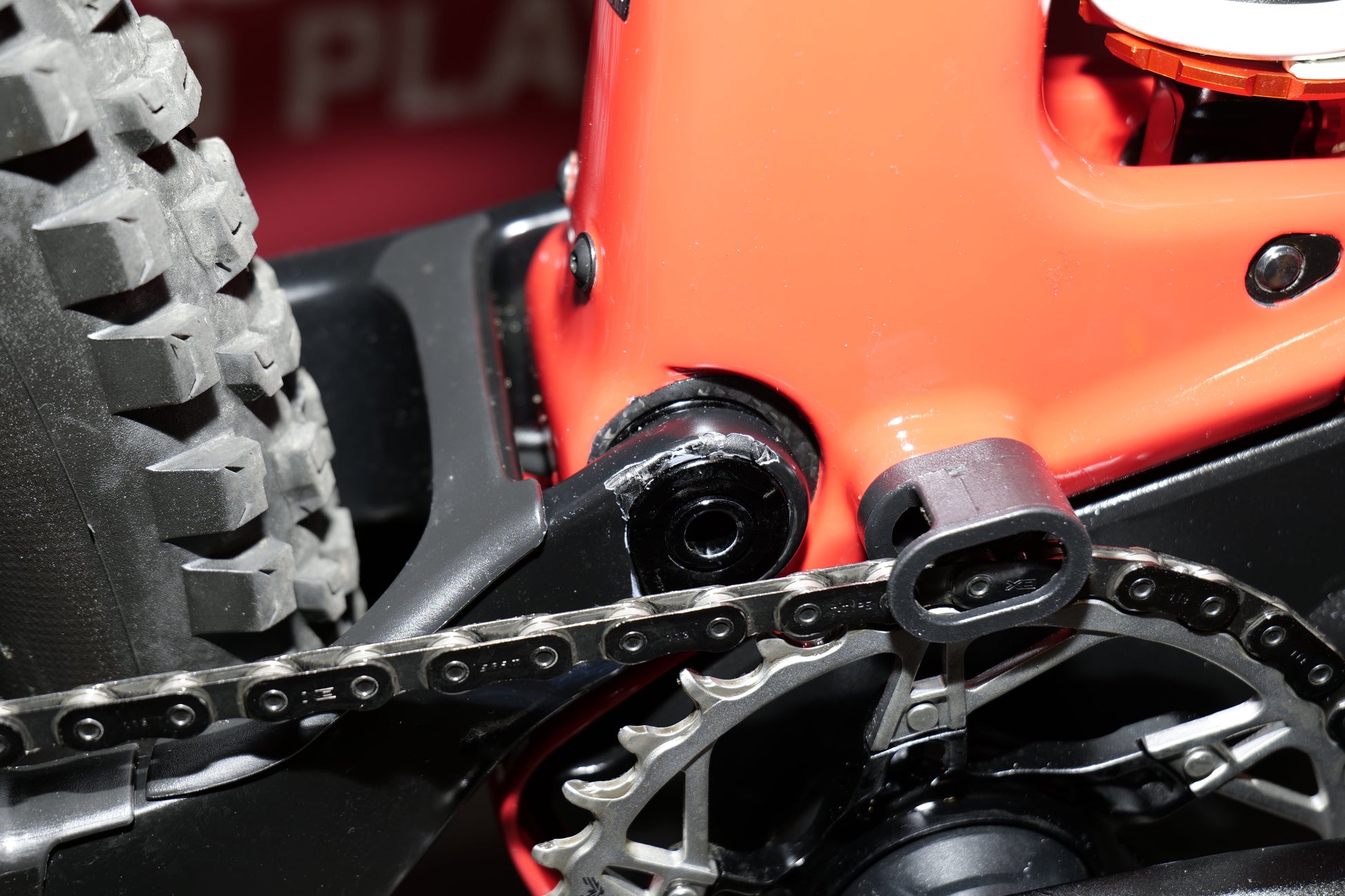

CHAIN: SRAM X0 Eagle Transmission Flattop
CASSETTE: SRAM XS-1295, 10-52 T
BRAKES: SRAM Code RSC, 4-piston, Hydraulic disc brake
CRANKSET: SRAM X0 Eagle E-MTB, SRAM XX
SADDLE: Selle Royal Terra Ridon X5
BARS: NEWMEN Advanced 318.25, 800 mm, Rise: 25 mm
STEM: NEWMEN Evolution 318.4, Ahead
PEDDLES: GASGAS, aluminum
GRIPS: GASGAS MTB, Lock-on grips
SEAT POST: RockShox Reverb AXS
PERMISSIBLE TOTAL VEHICLE WEIGHT: 130KG
GEOMETRIES
| Bike Size | S/M | M/L | L/XL |
| Rider size |
153 - 186 cm 5'0" - 6'1" |
163 - 196 cm 5'3" - 6'4" |
178 - 214 cm 5'8" - 7'0" |
| SIZE | S/M | M/L | L/XL | |
| A - Top Tube Length | 588 mm | 613 mm | 638 mm | |
| B - Seat Tube Length | 400 mm | 440 mm | 470 mm | |
|
C - Seat Tube Angle Virtual * - Seat Tube Angle Actual |
78° 74.4° |
78.25° 75.2° |
78.5° 75.5° |
|
| D - Head Tube Length | 115 mm | 130 mm | 145 mm | |
| E - Headtube Angle | 64° | 64° | 64° | |
| F - Chain Stay Length | 461 mm | 465mm | 469mm | |
| G - Wheel Base | 1257 mm | 1289 mm | 1325 mm | |
| I - BB-Drop | 31.5 mm | 31.5 mm | 31.5 mm | |
| K - Stack | 649 mm | 663 mm | 676 mm | |
| L - Reach | 450 mm | 475 mm | 500 mm |
Please note, occasionally, manufacturers may change the specification without notice.
