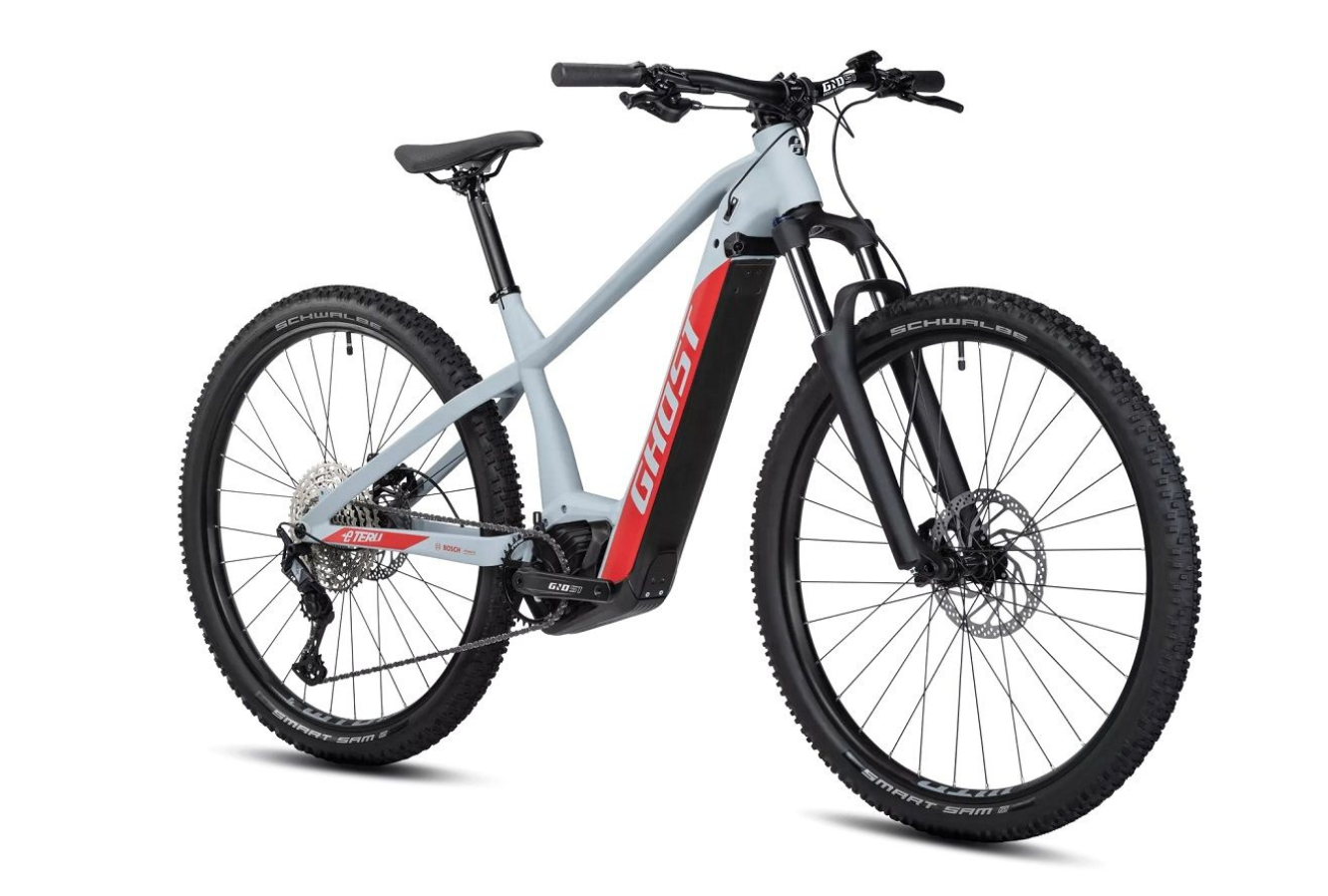

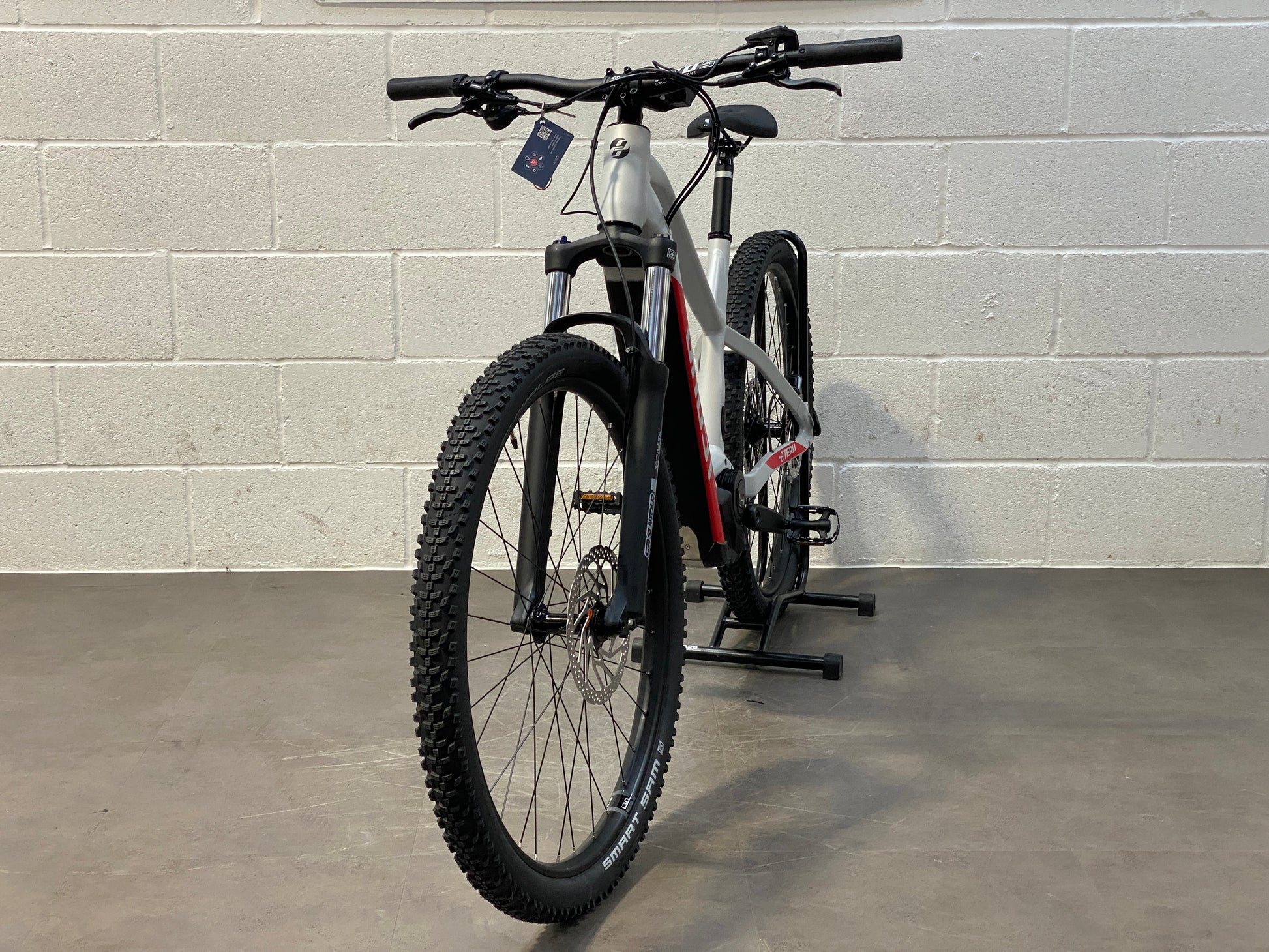

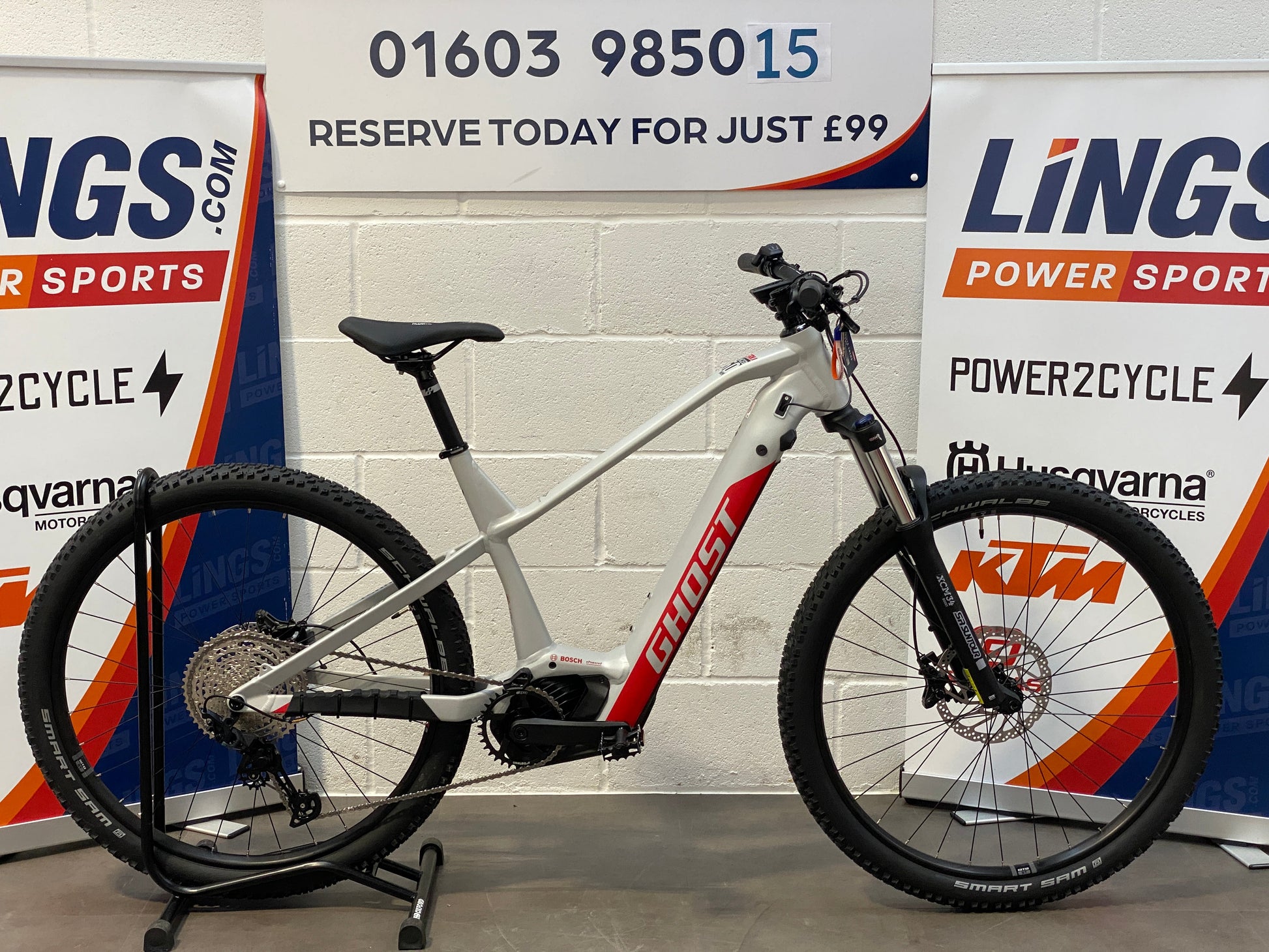

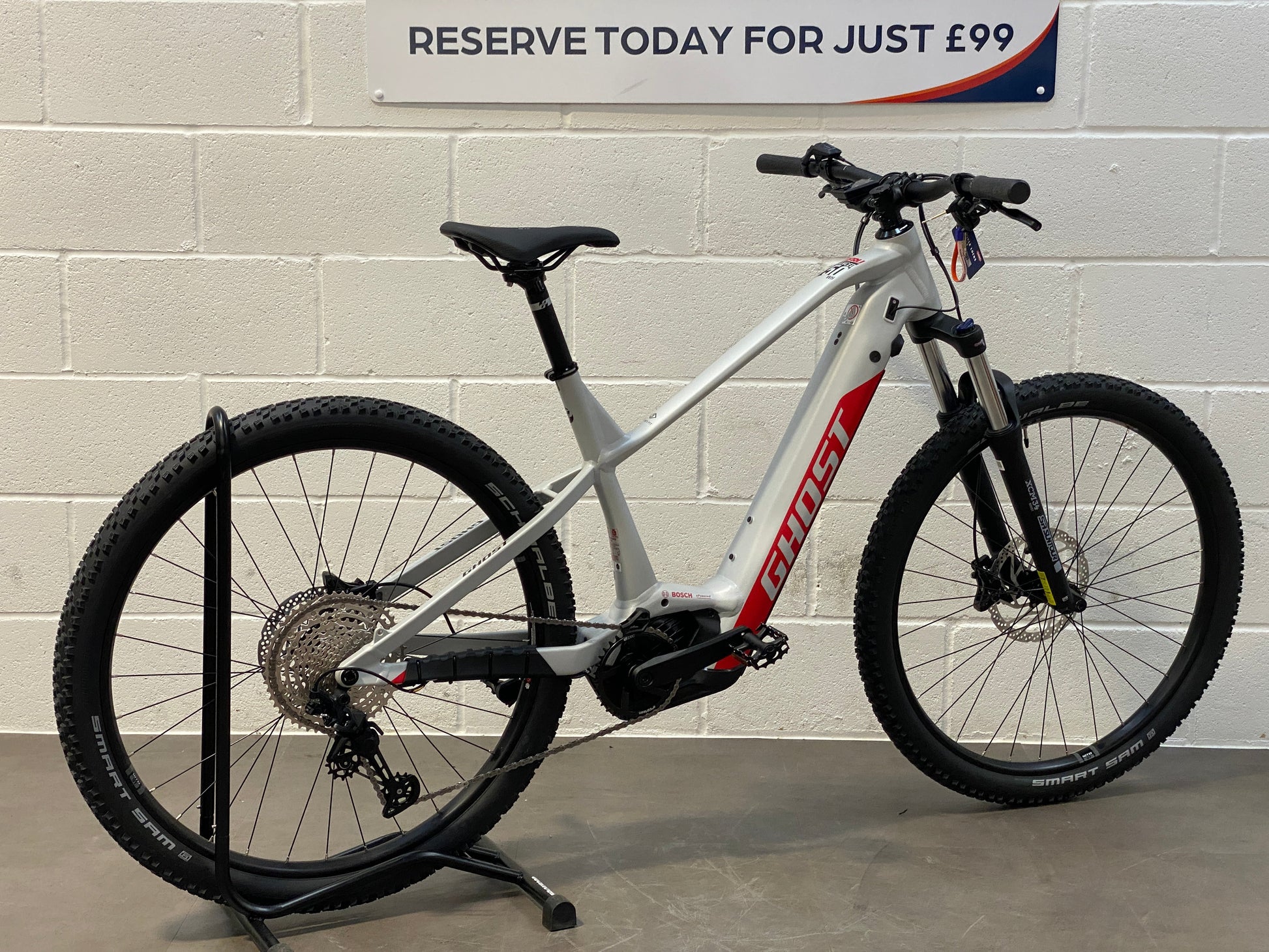

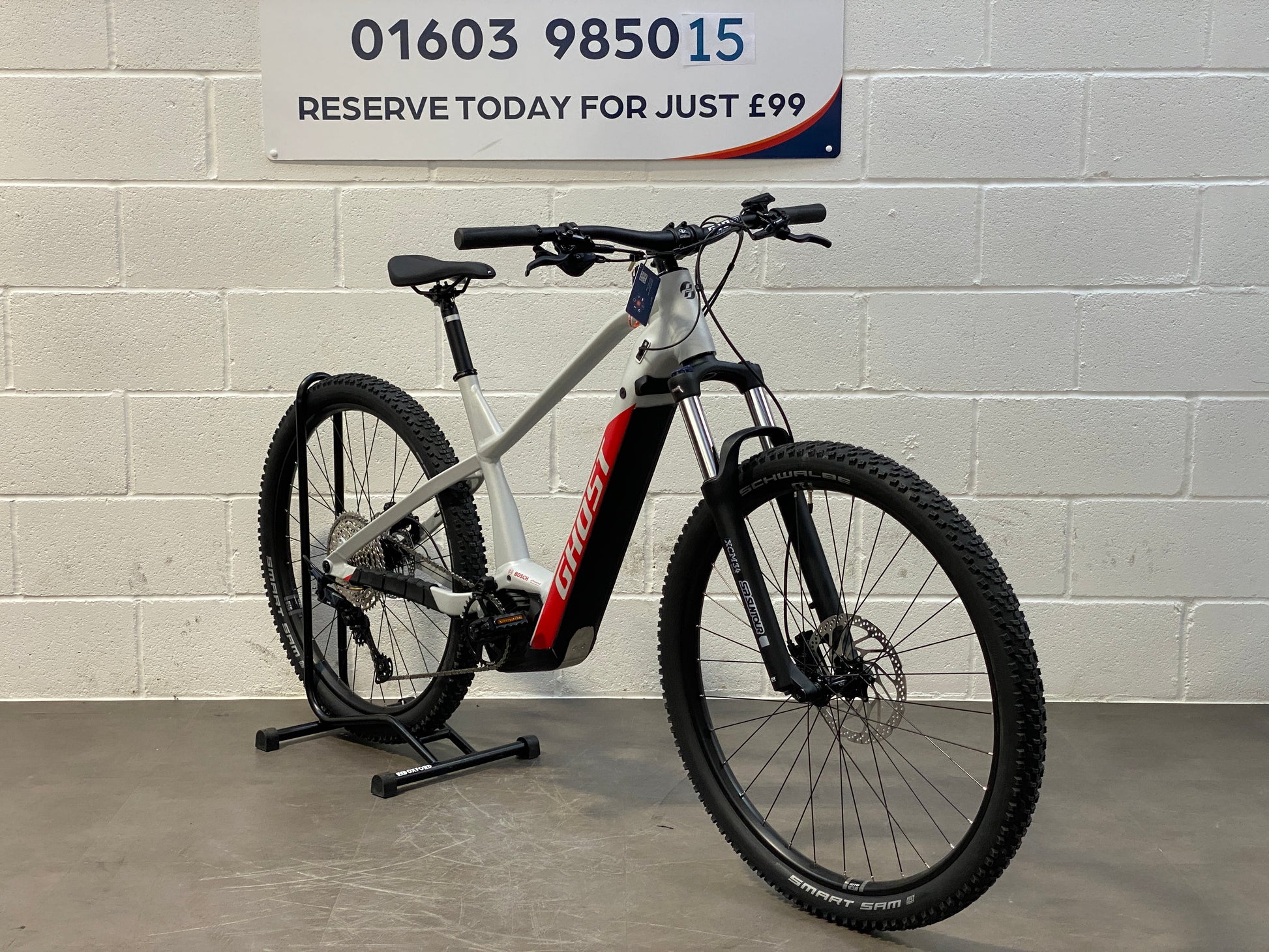

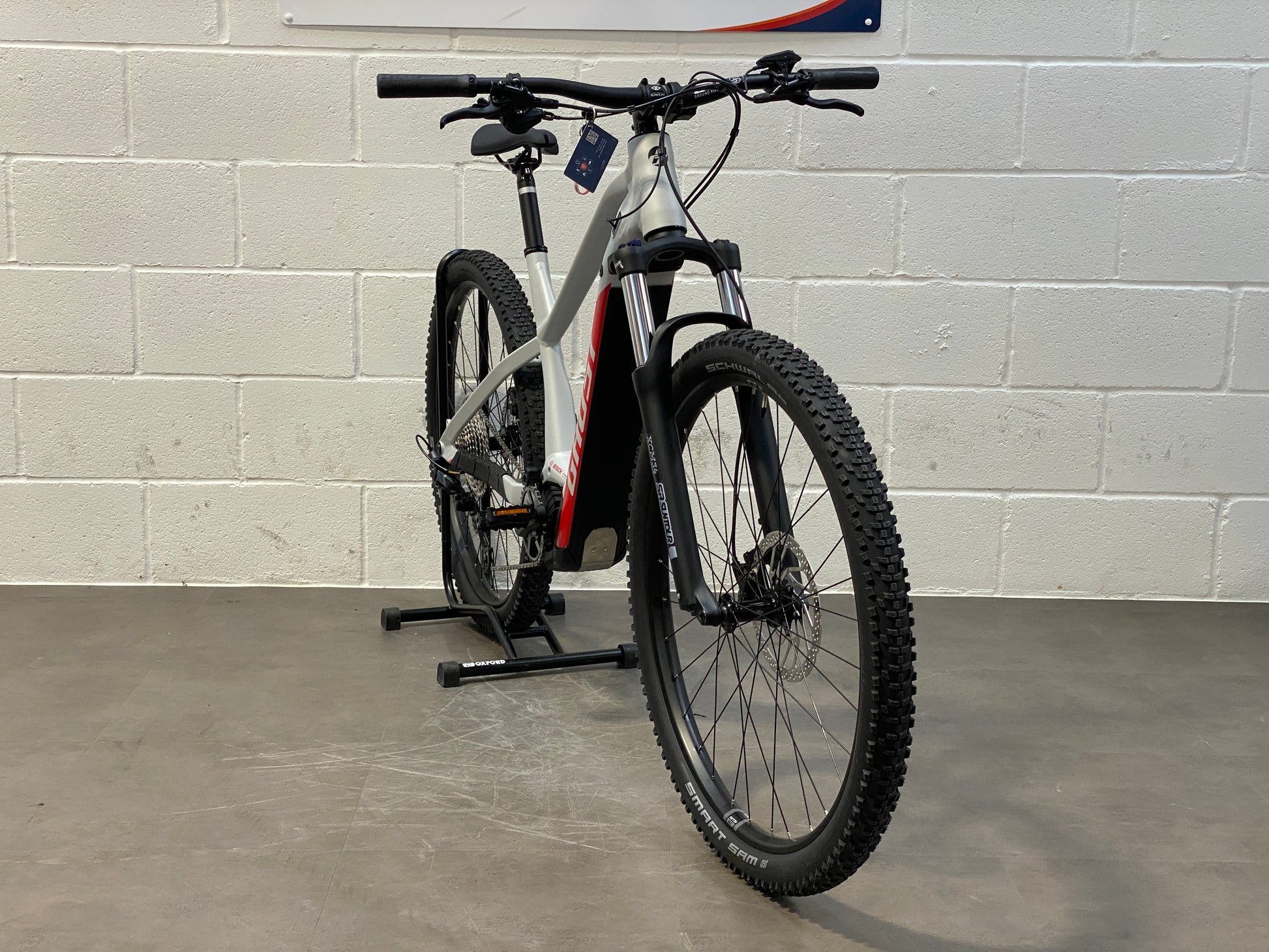

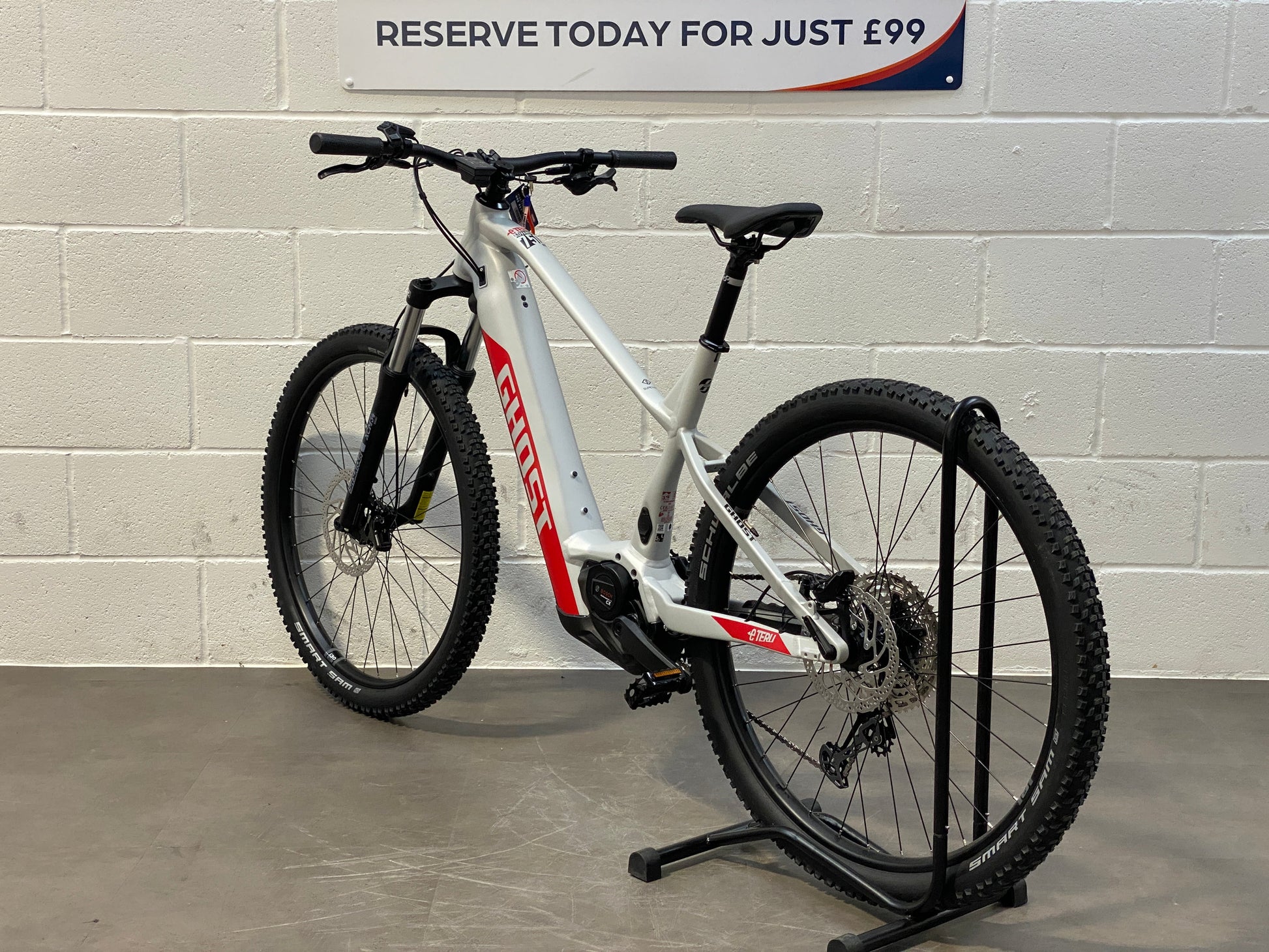

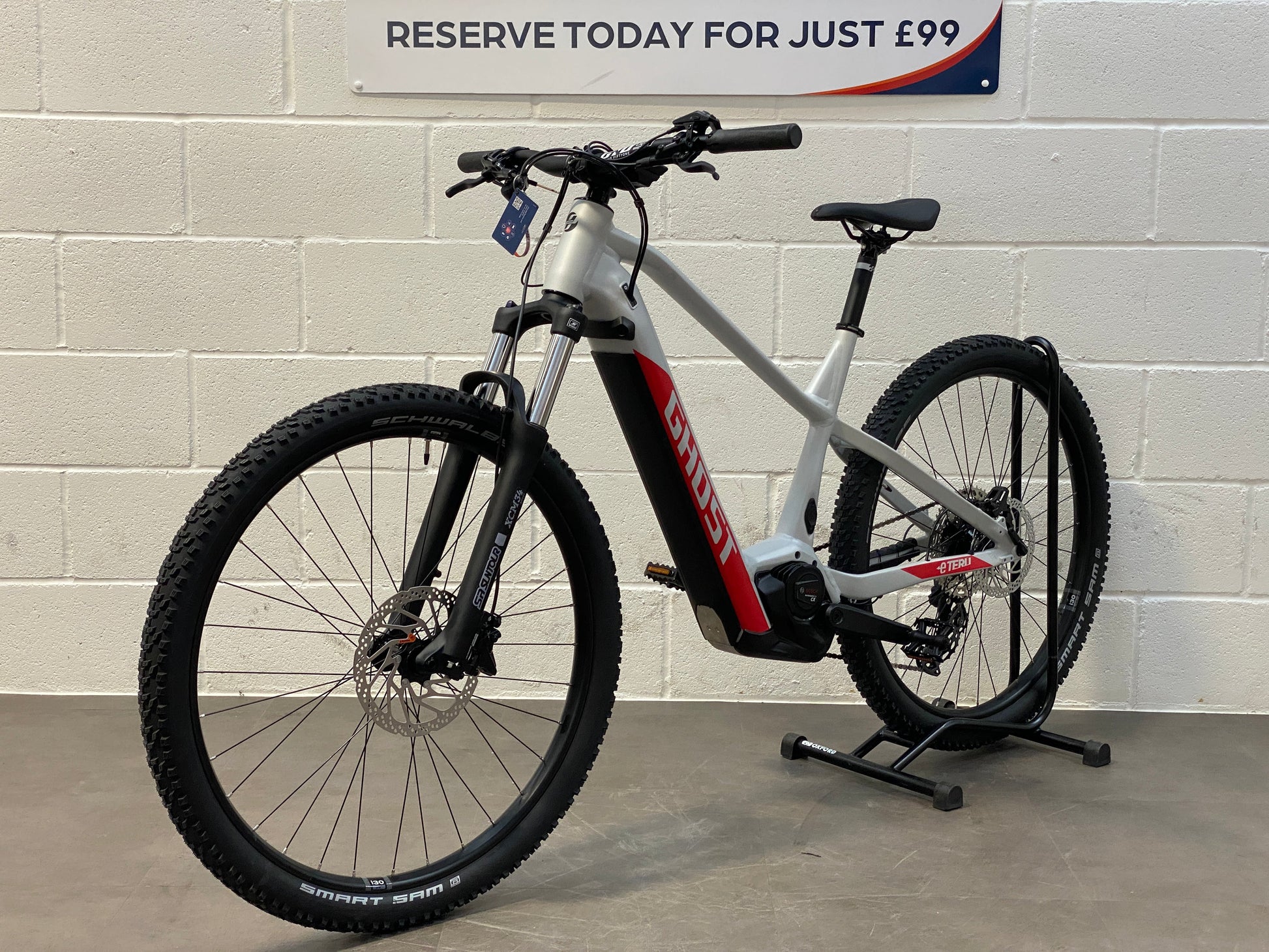

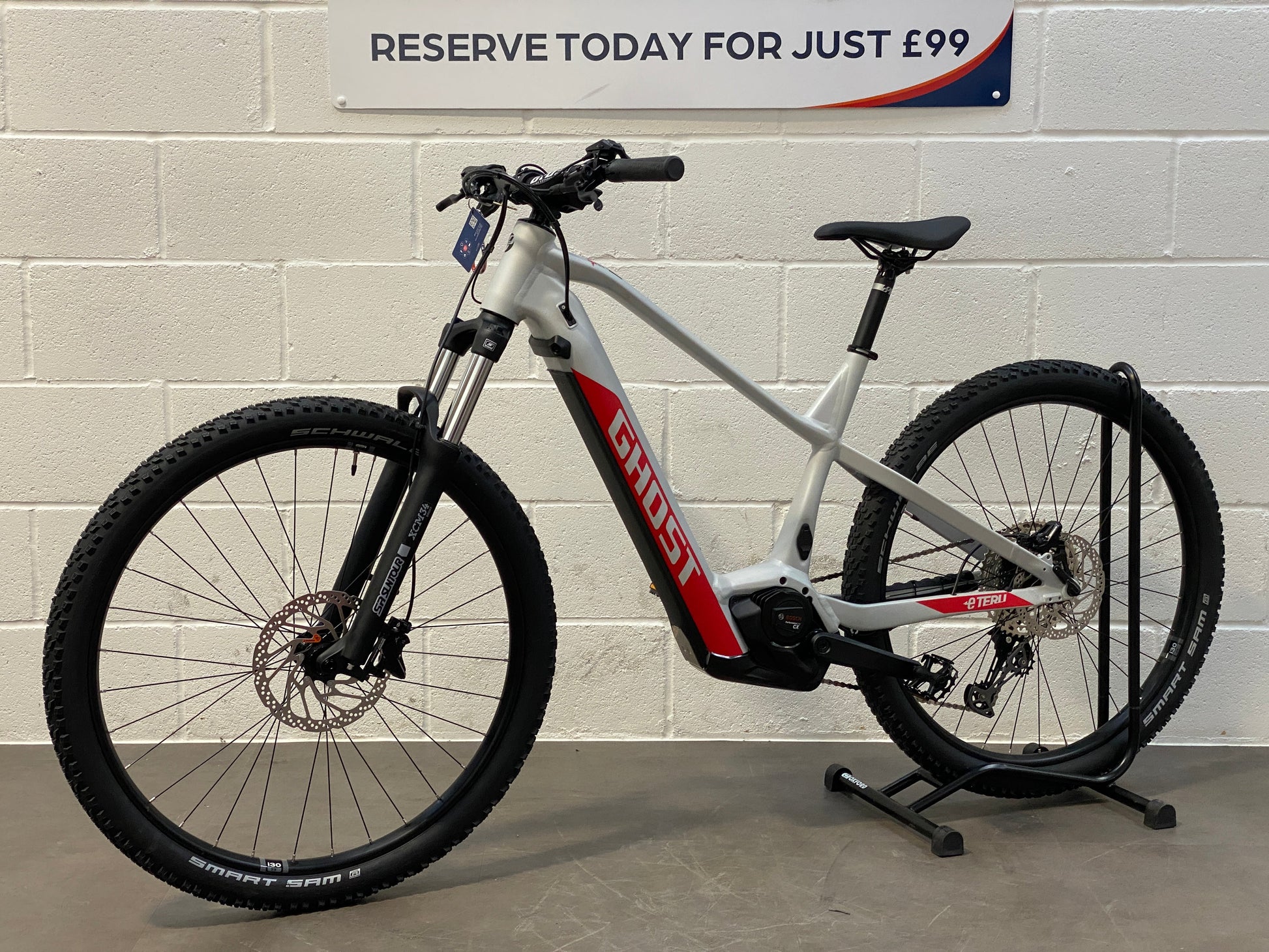

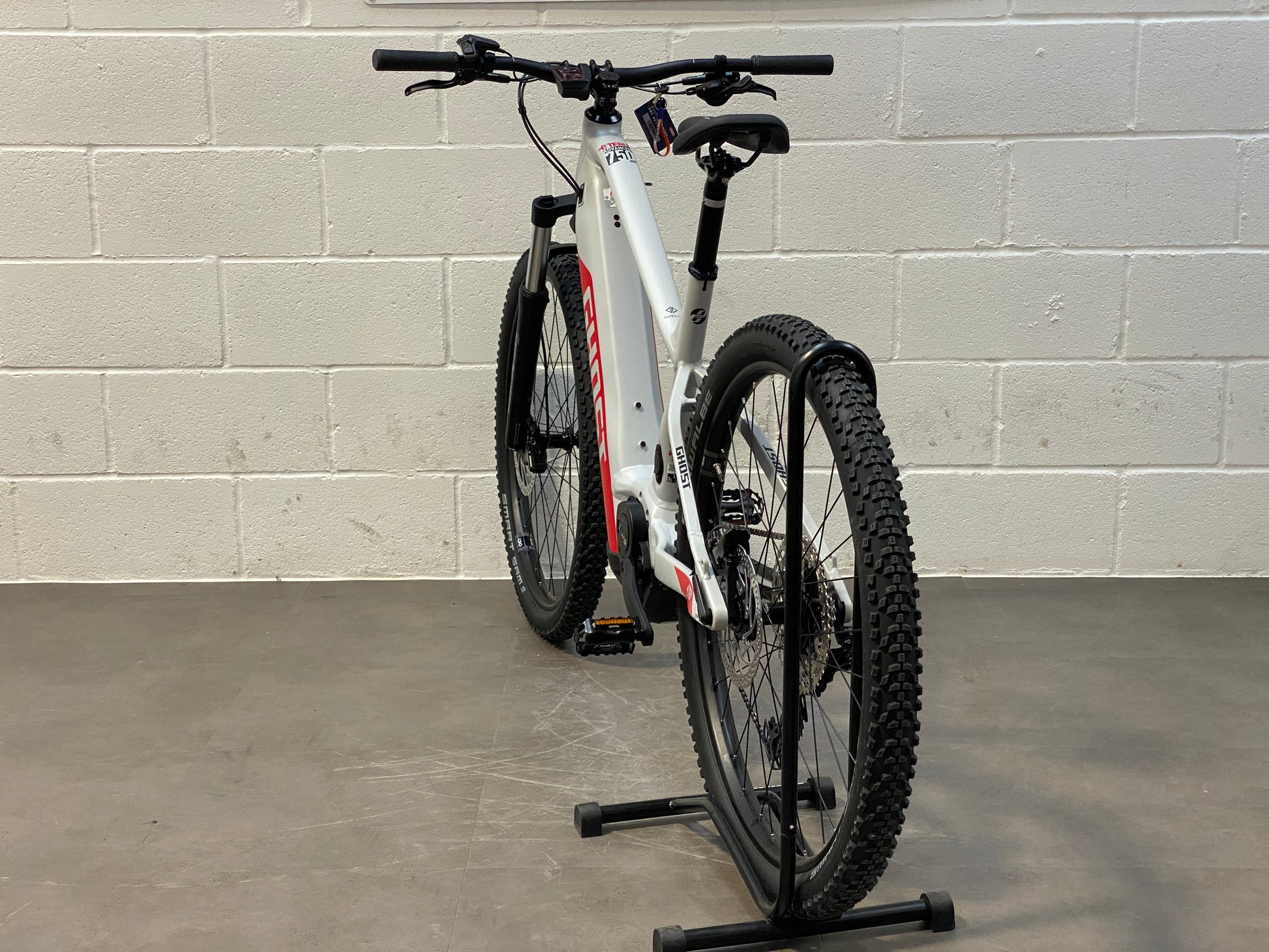

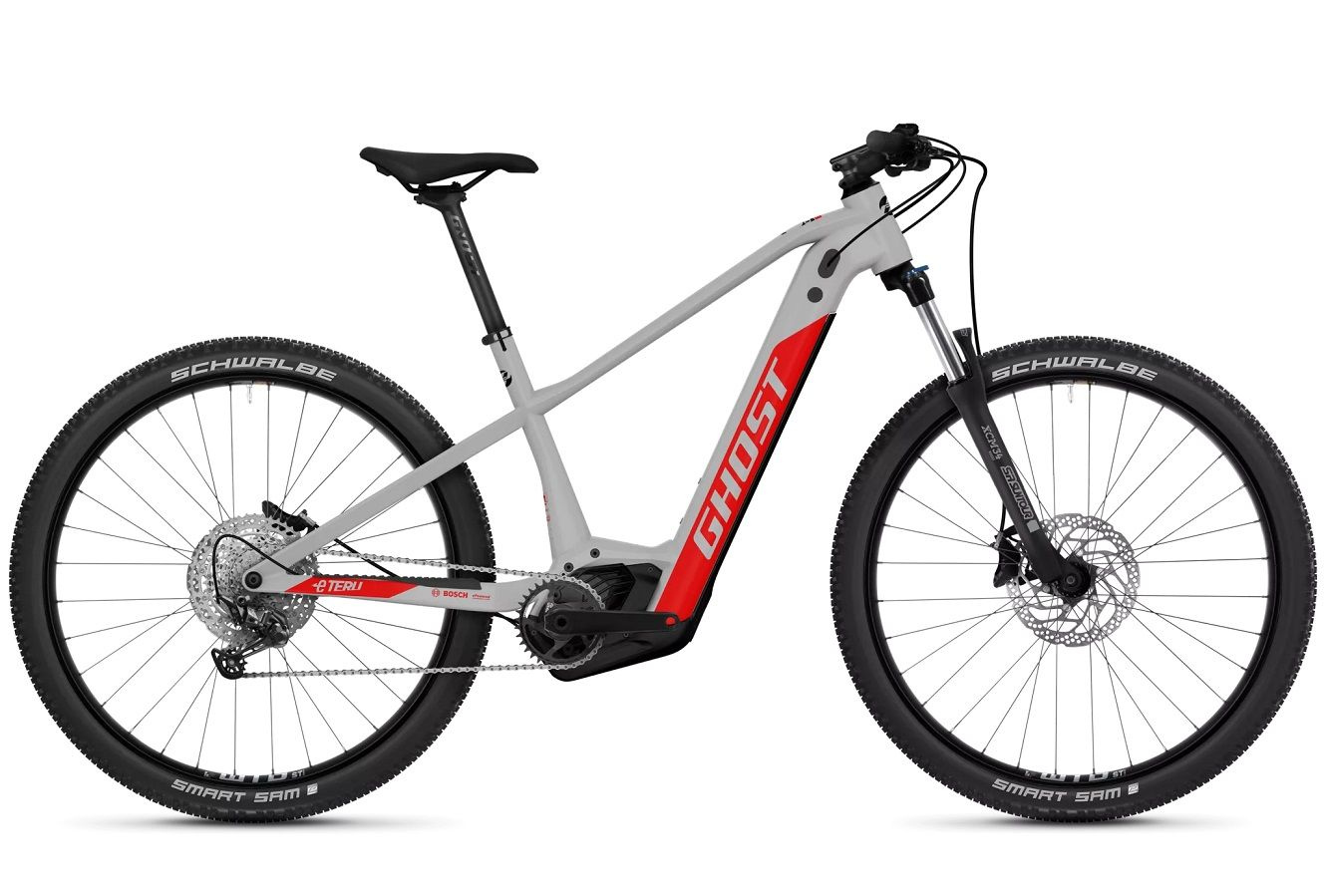

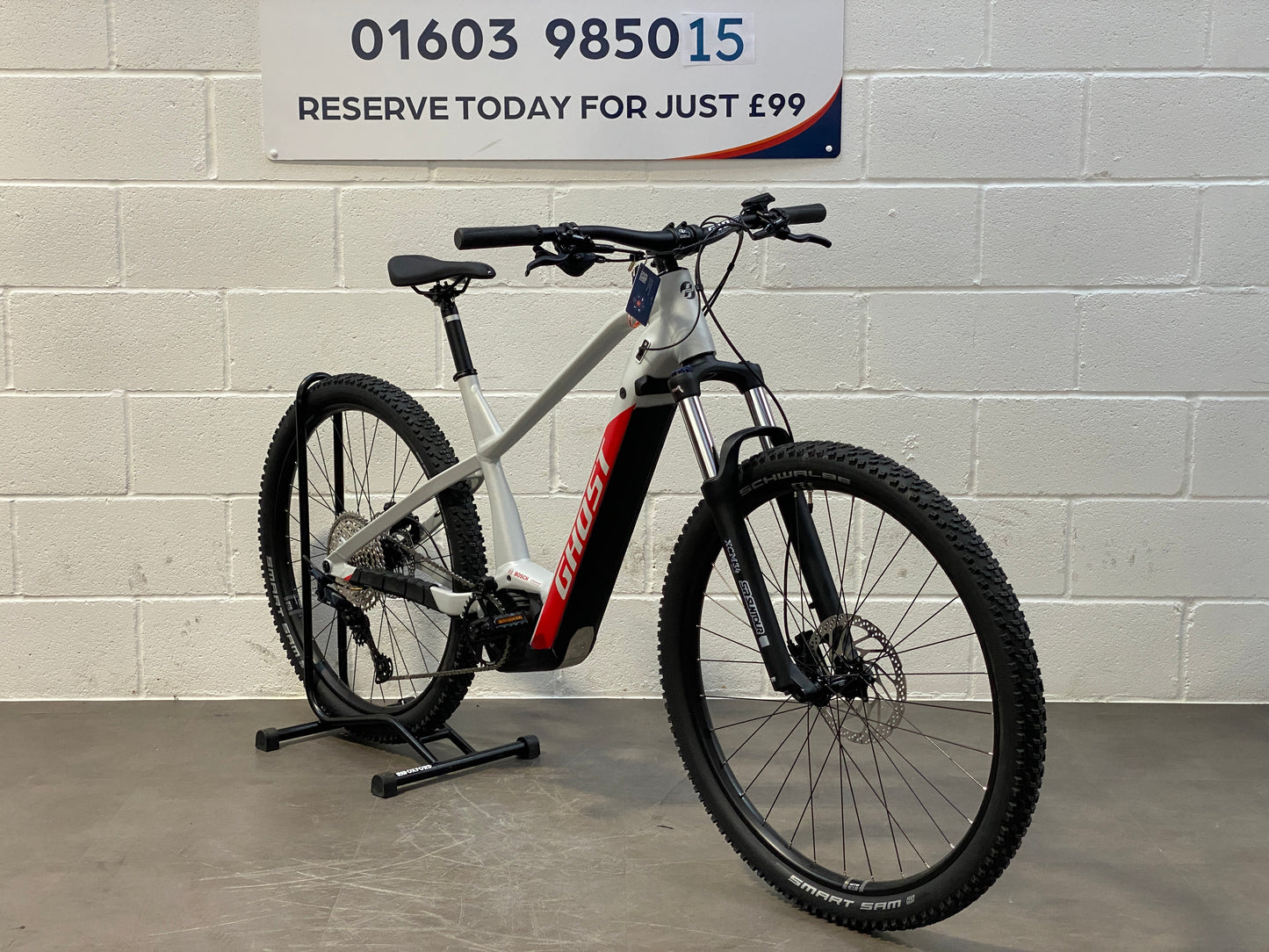

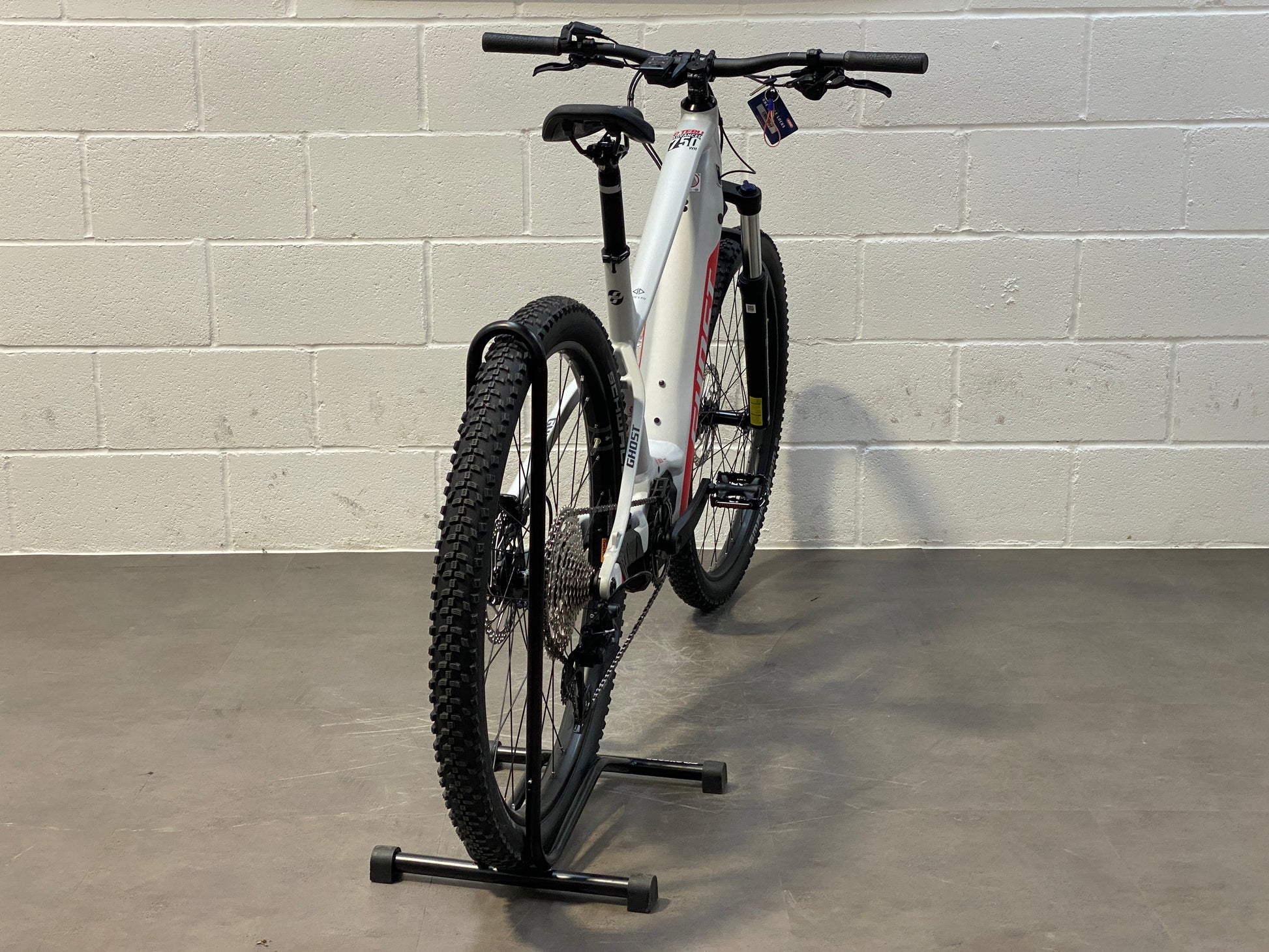

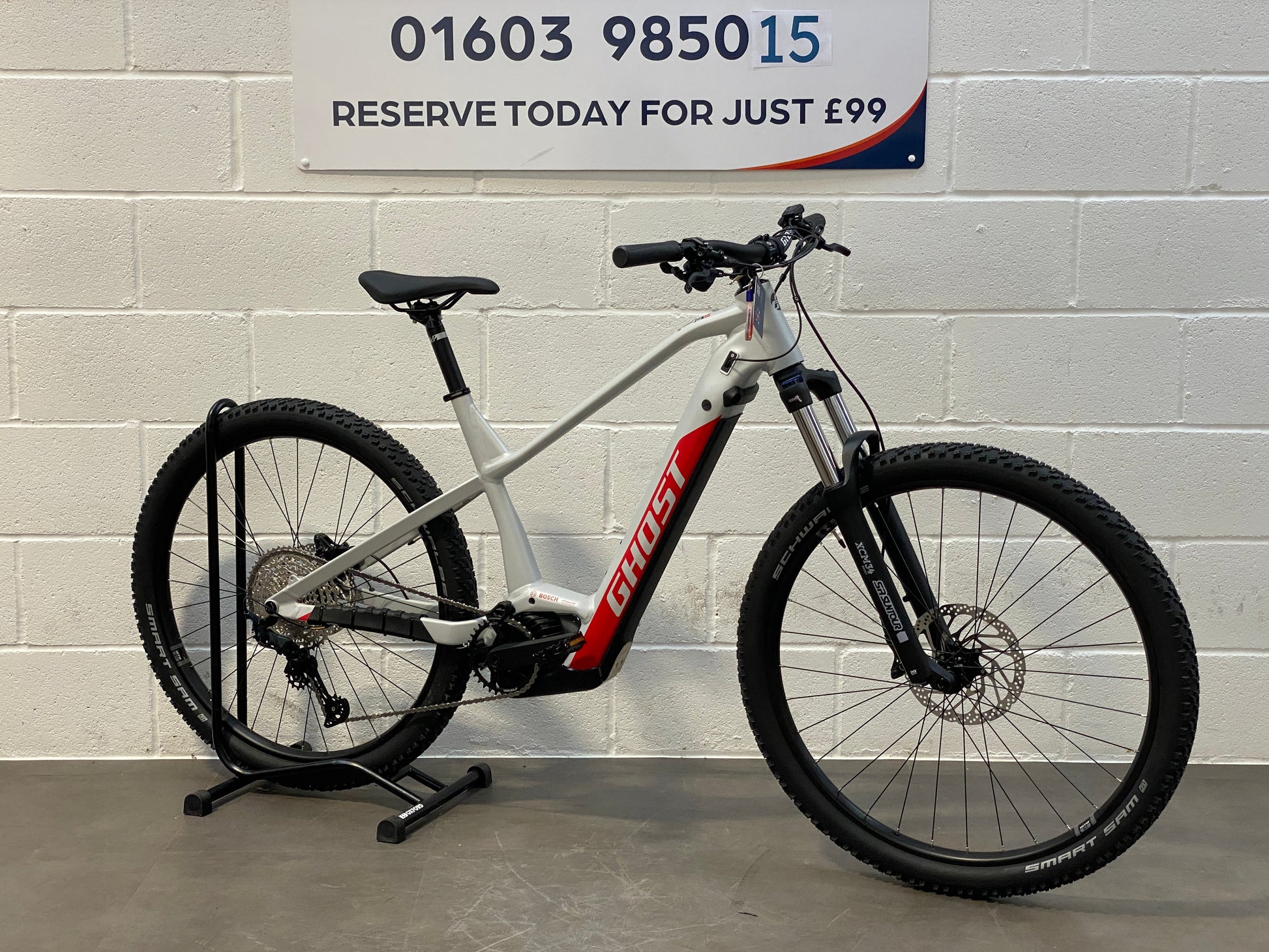

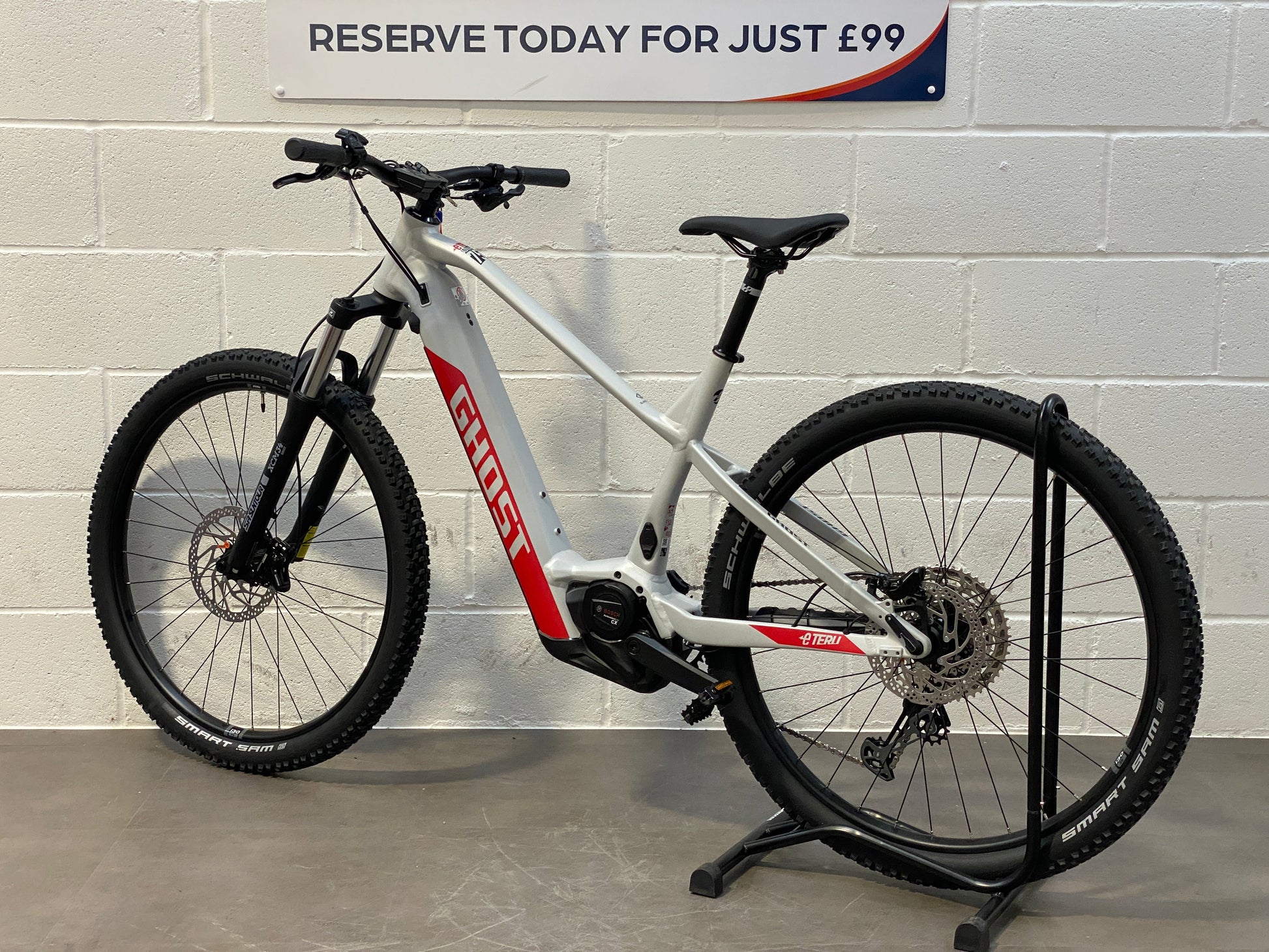

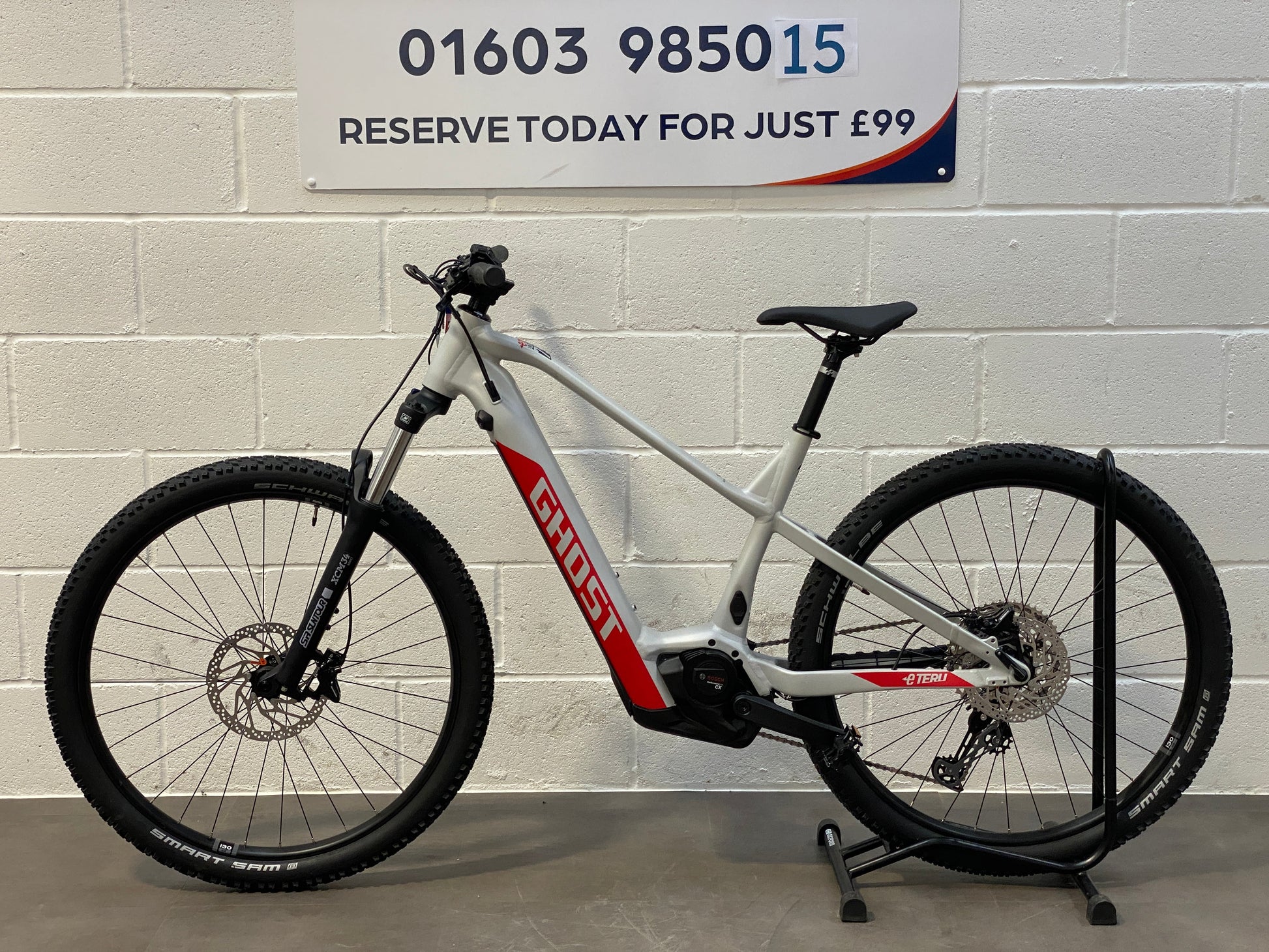

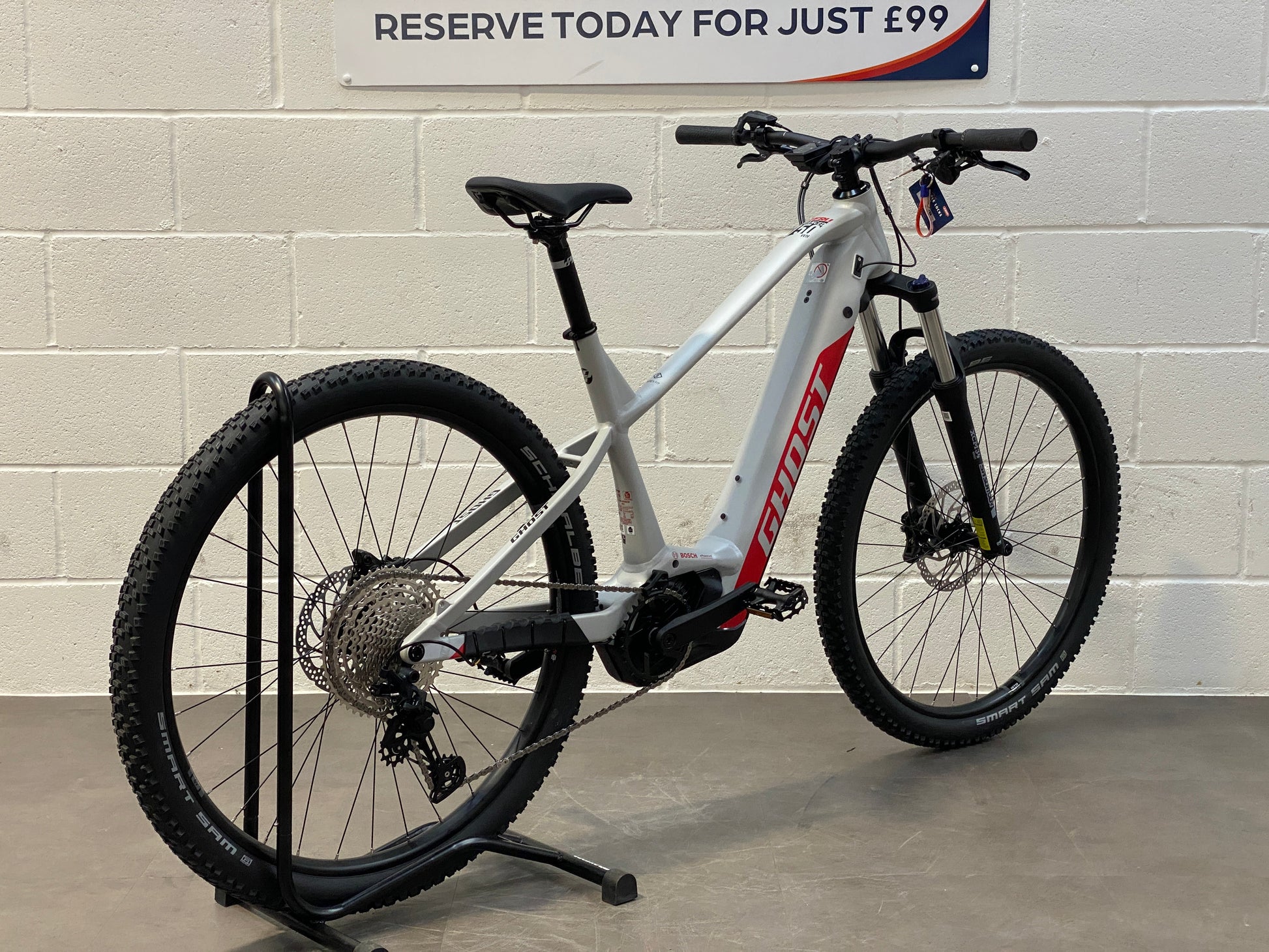

GHOST E-TERU B ADVANCED
GHOST E-TERU B ADVANCED
Couldn't load pickup availability
The E-Teru B Advanced impresses with its high-quality equipment and excellent handling characteristics, even off the beaten track. The proven Bosch motor, which can now be configured via app and networked with the display and battery, provides the necessary propulsion.
This model combines GHOST’s years of mountain bike know-how and experience with terrain smoothing 120mm of front suspension travel and Bosch’s powerful CX motor – making for a very complete package.
The large capacity 750Wh battery is discreetly integrated into the frame tube and is designed for longer rides, Bosch eBike batteries are efficient, long-life power sources.
A sporty e-mountain bike that looks as good as it rides. Equipped with high-quality components and excellent handling characteristics the E-Teru B Advanced eats up the miles whether it’s on or off the beaten track.

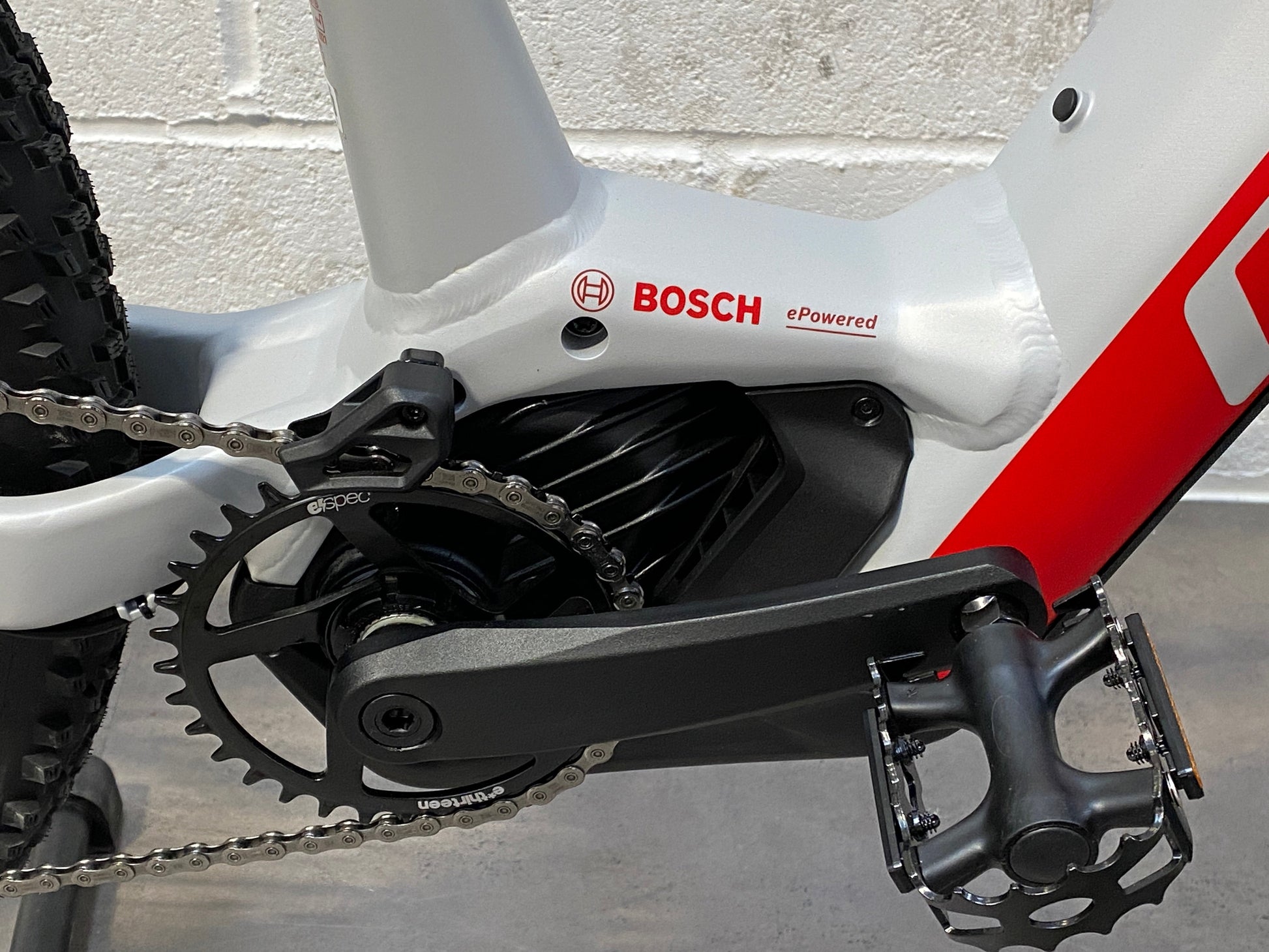

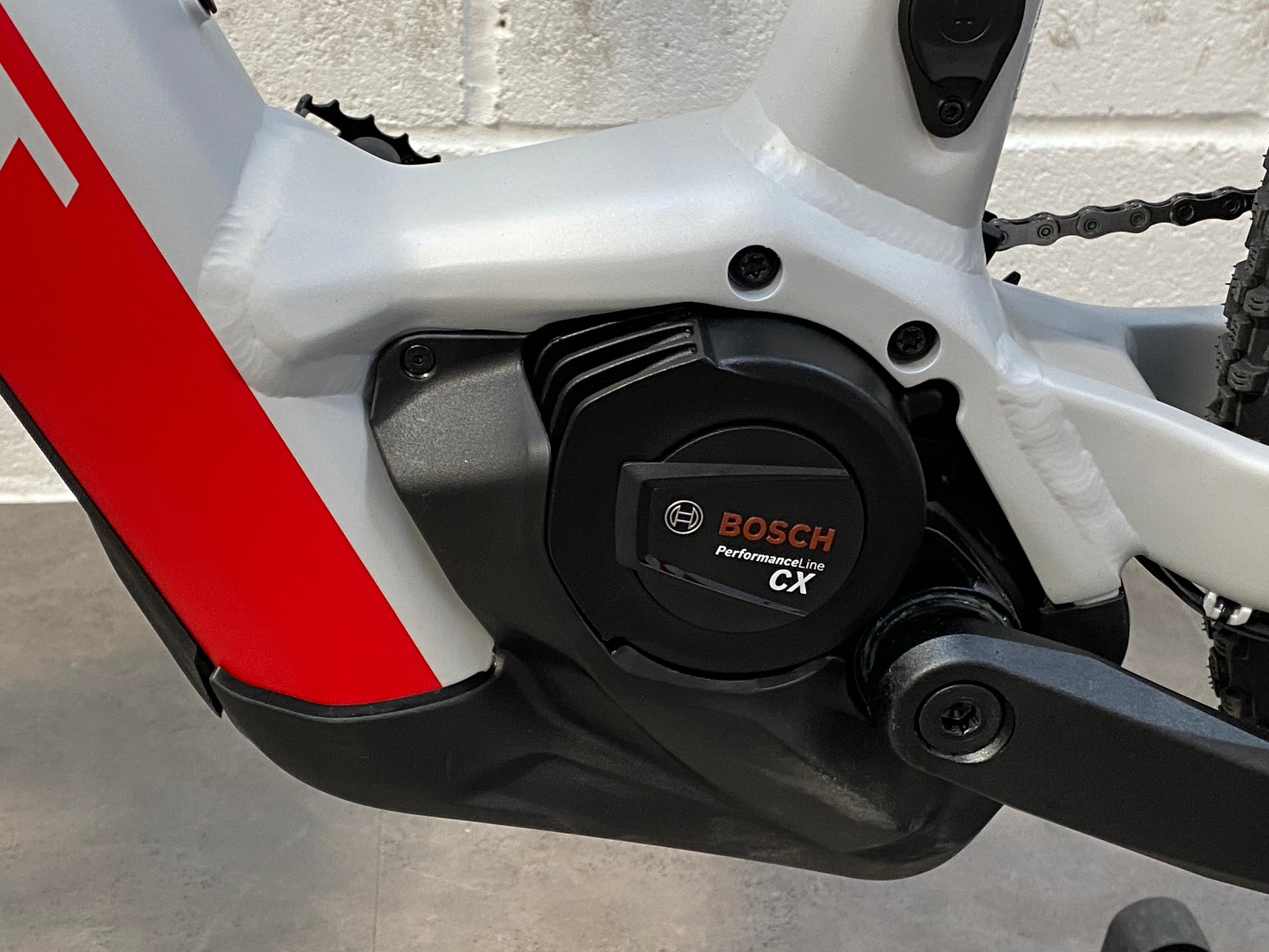

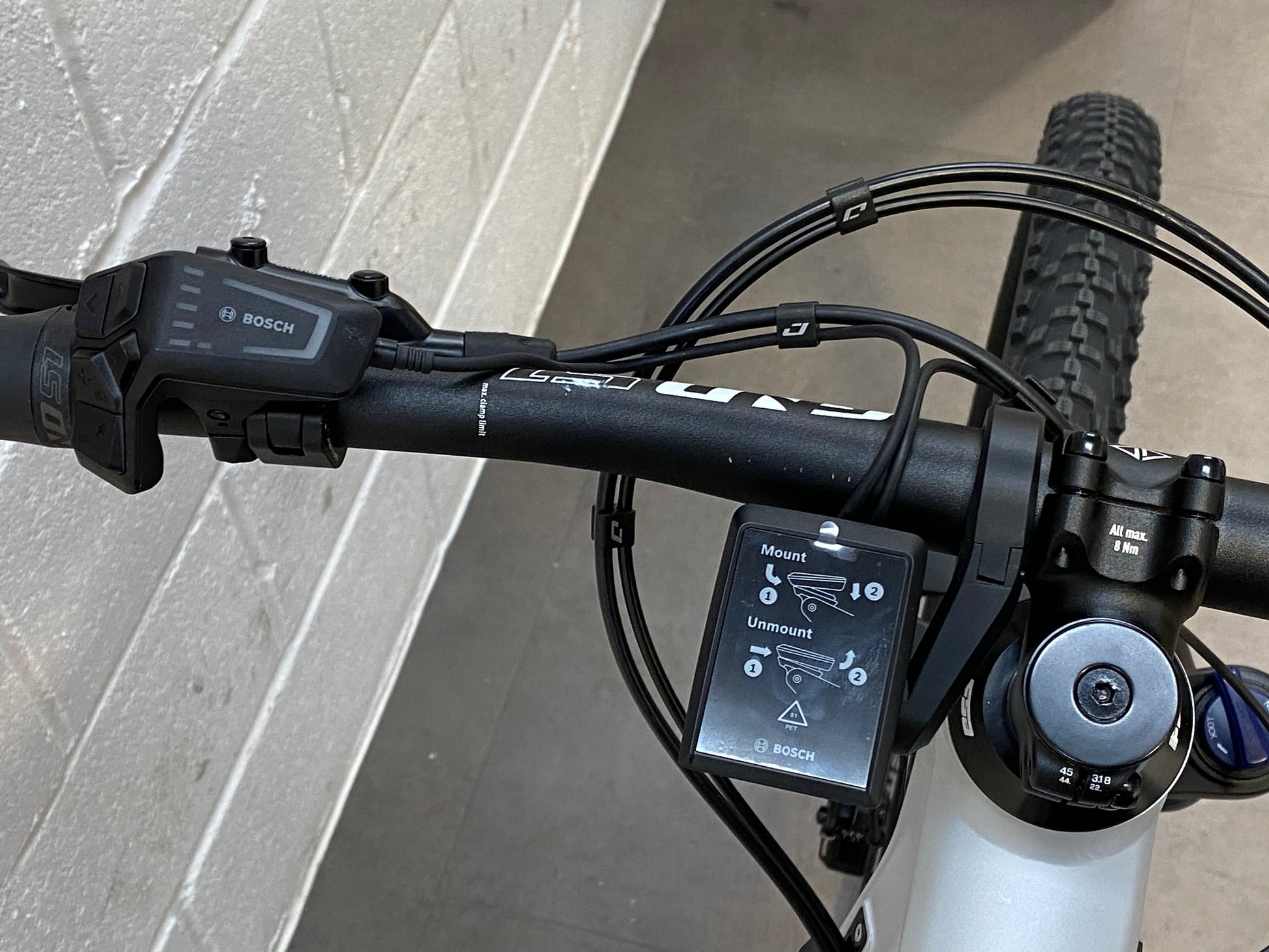

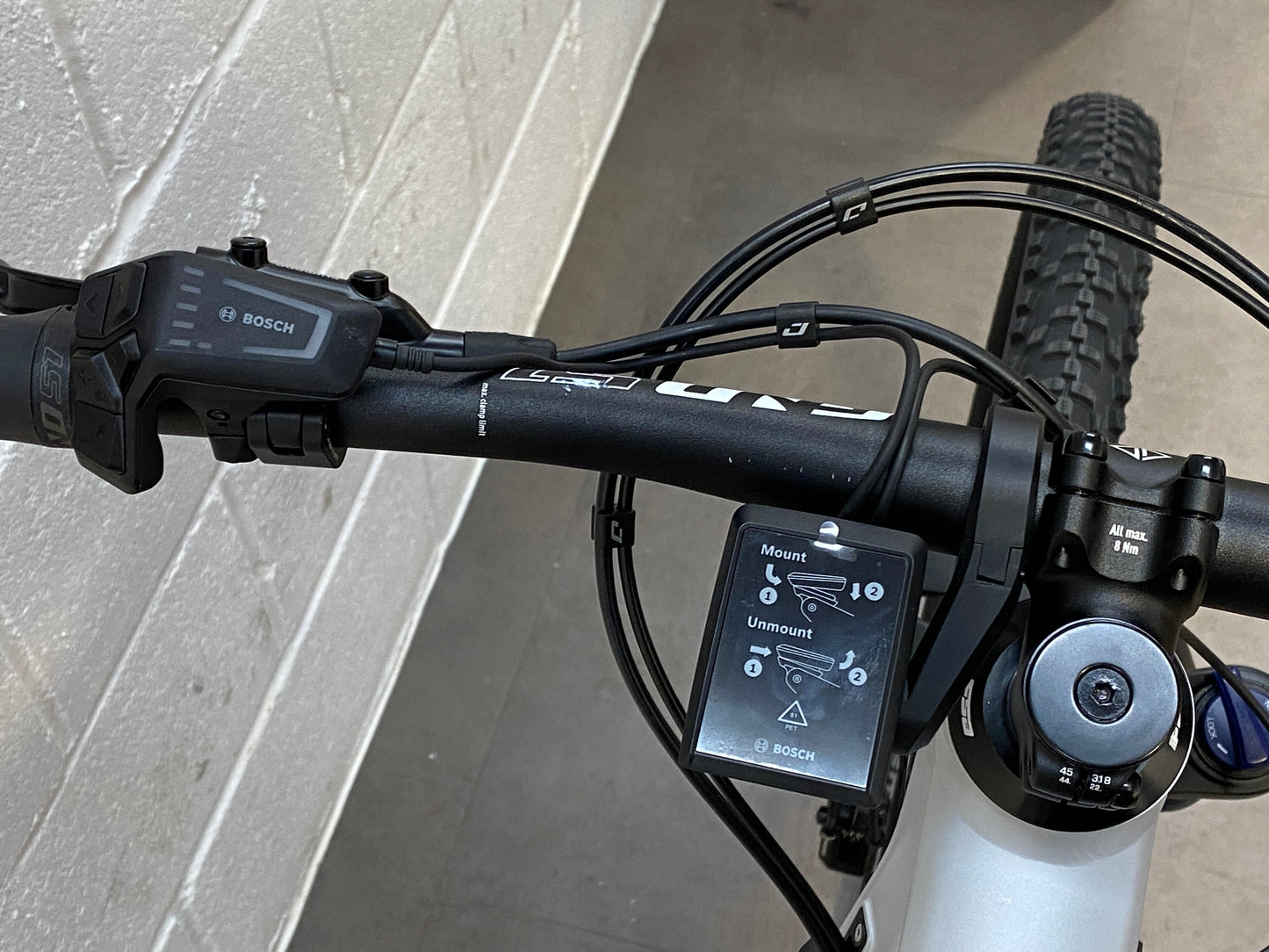

MOTOR: Bosch Performance Line CX, 85Nm with Bosch Kiox 300

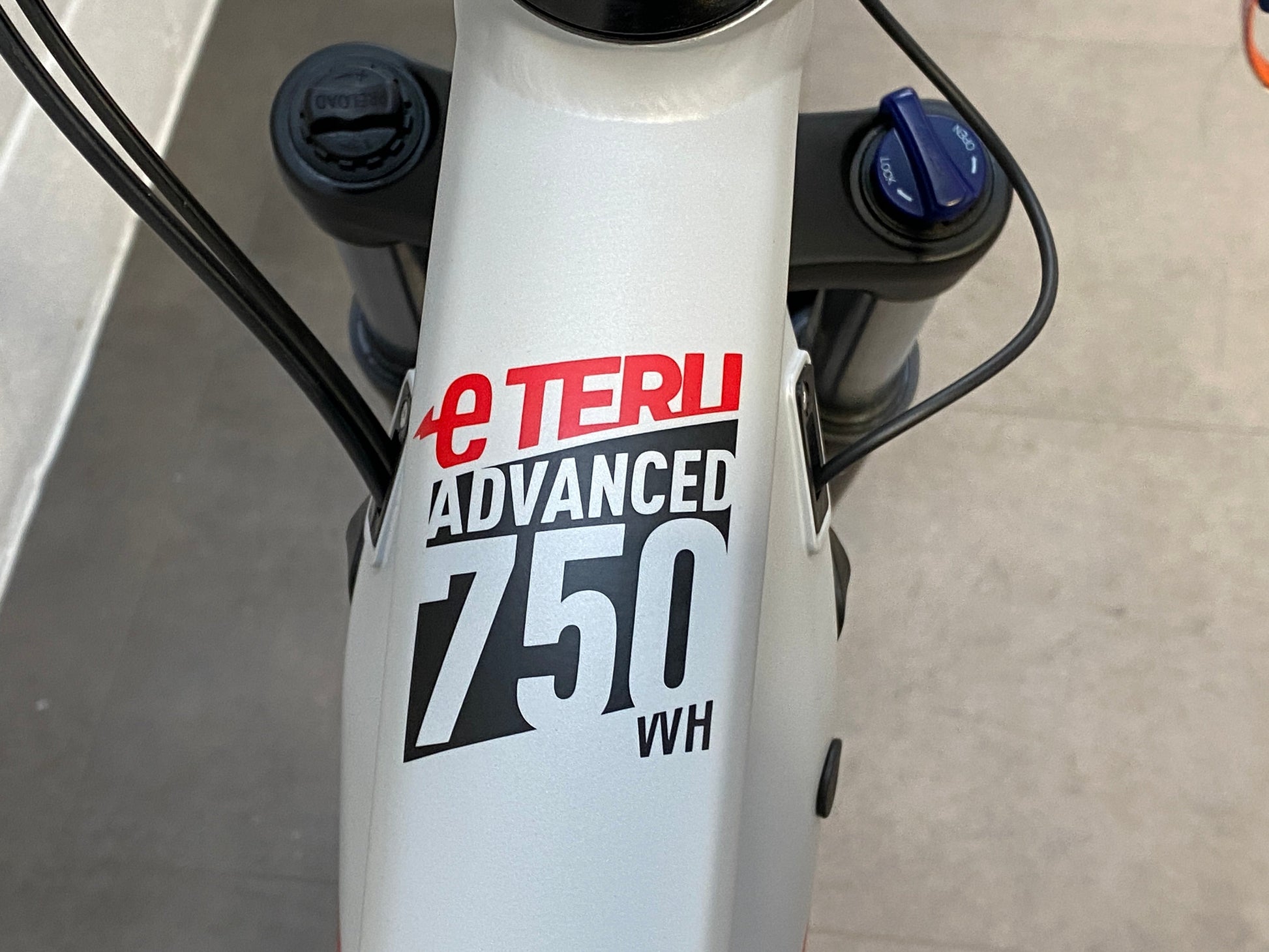

BATTERY: Bosch PowerTube 750Wh

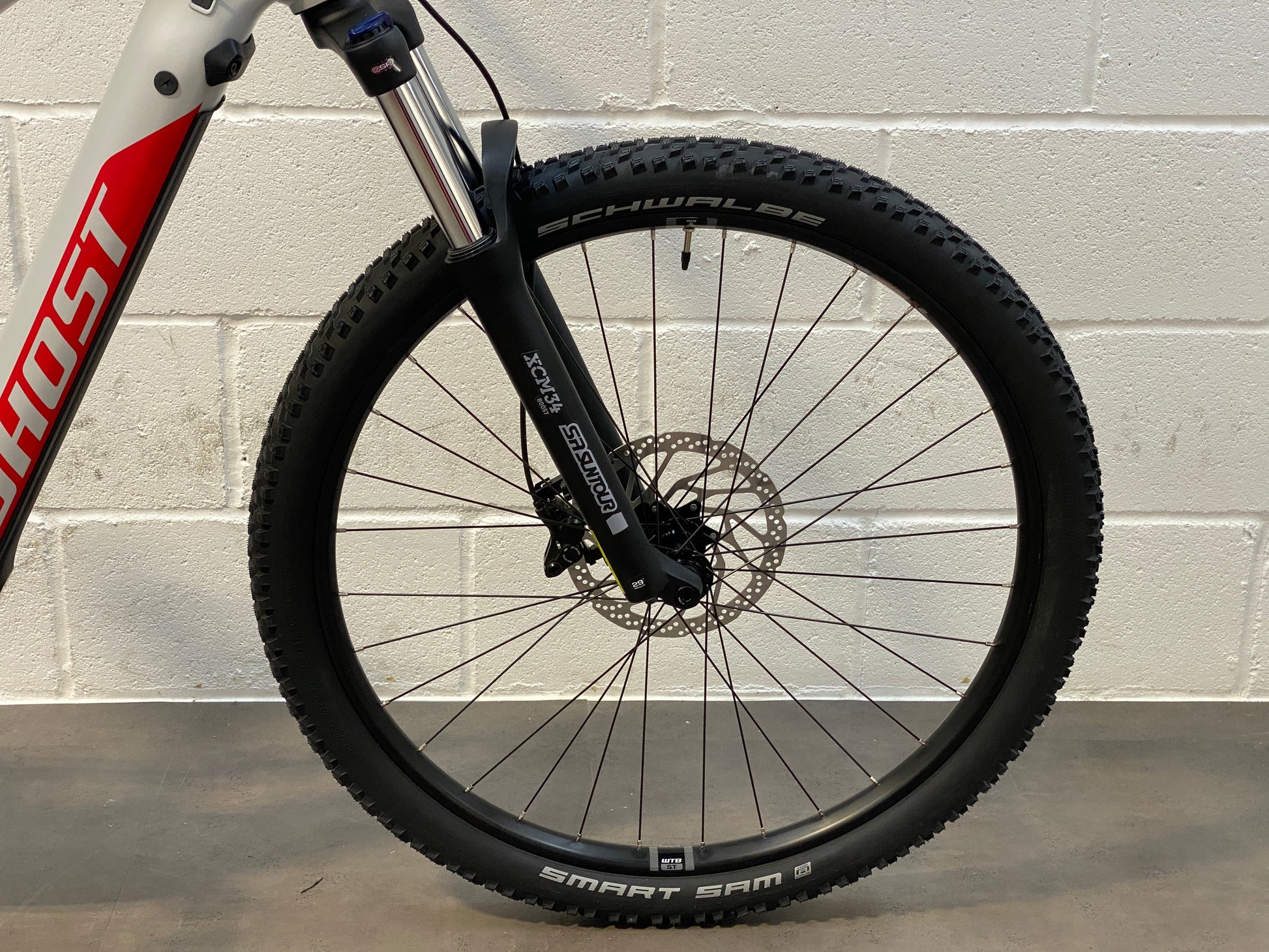

FORK: SR Suntour XCM34 Boost LO DS 120mm
WHEELS: WTB ST i30
TYRES: Schwalbe Smart Sam 2.35 (S 27.5"; M-XL 29")

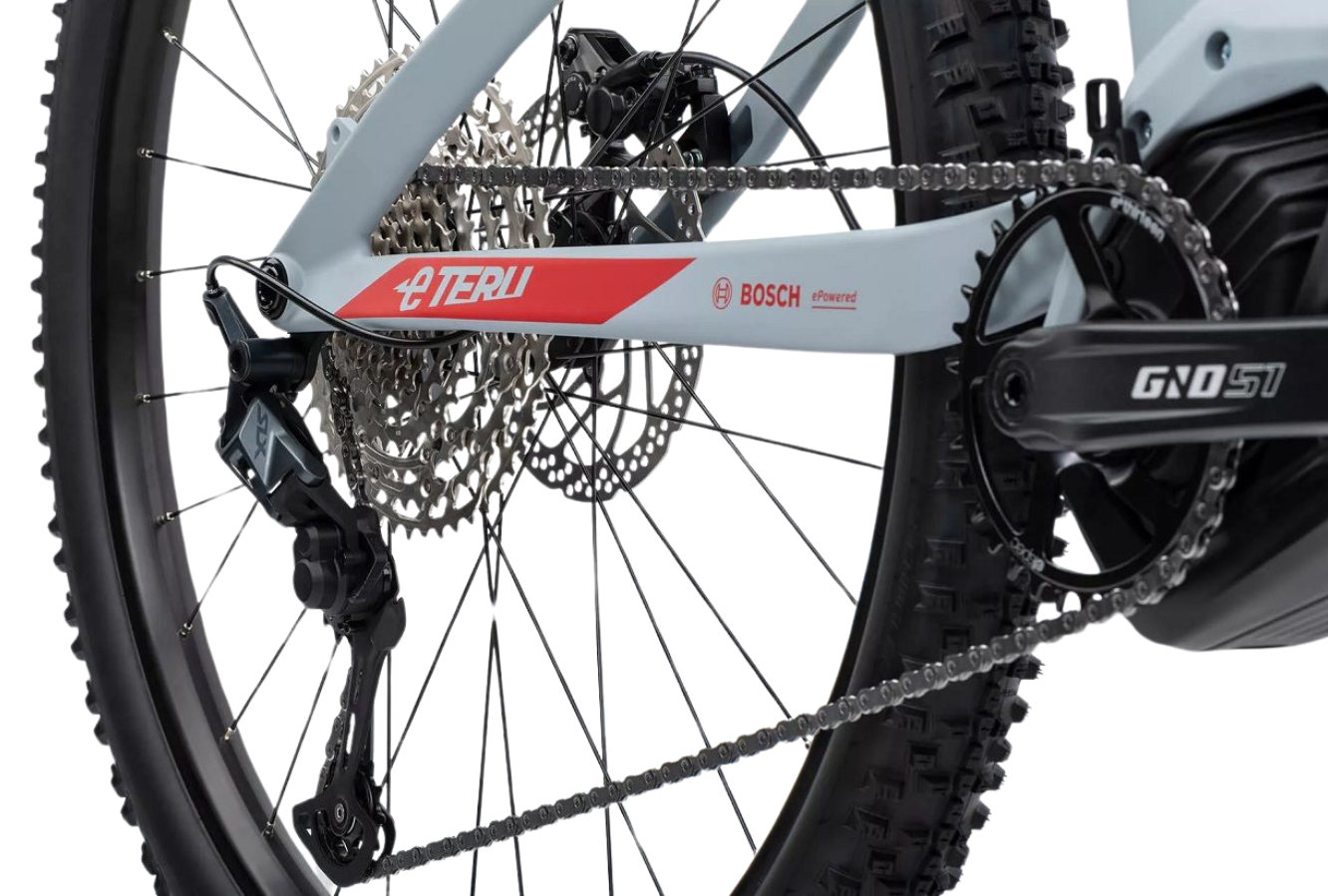

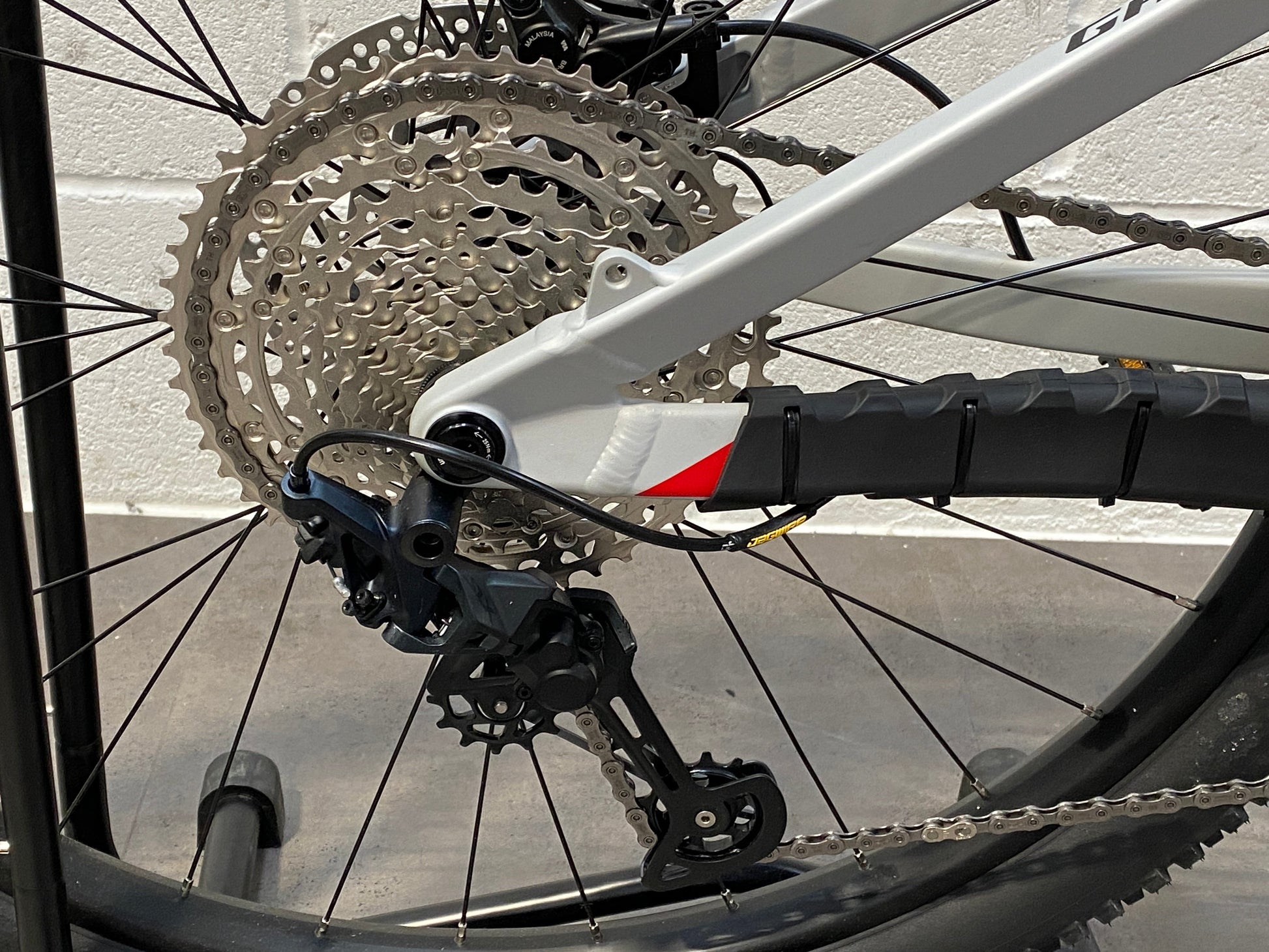

DERAILLEUR: Shimano SLX RD-M7100 12-S

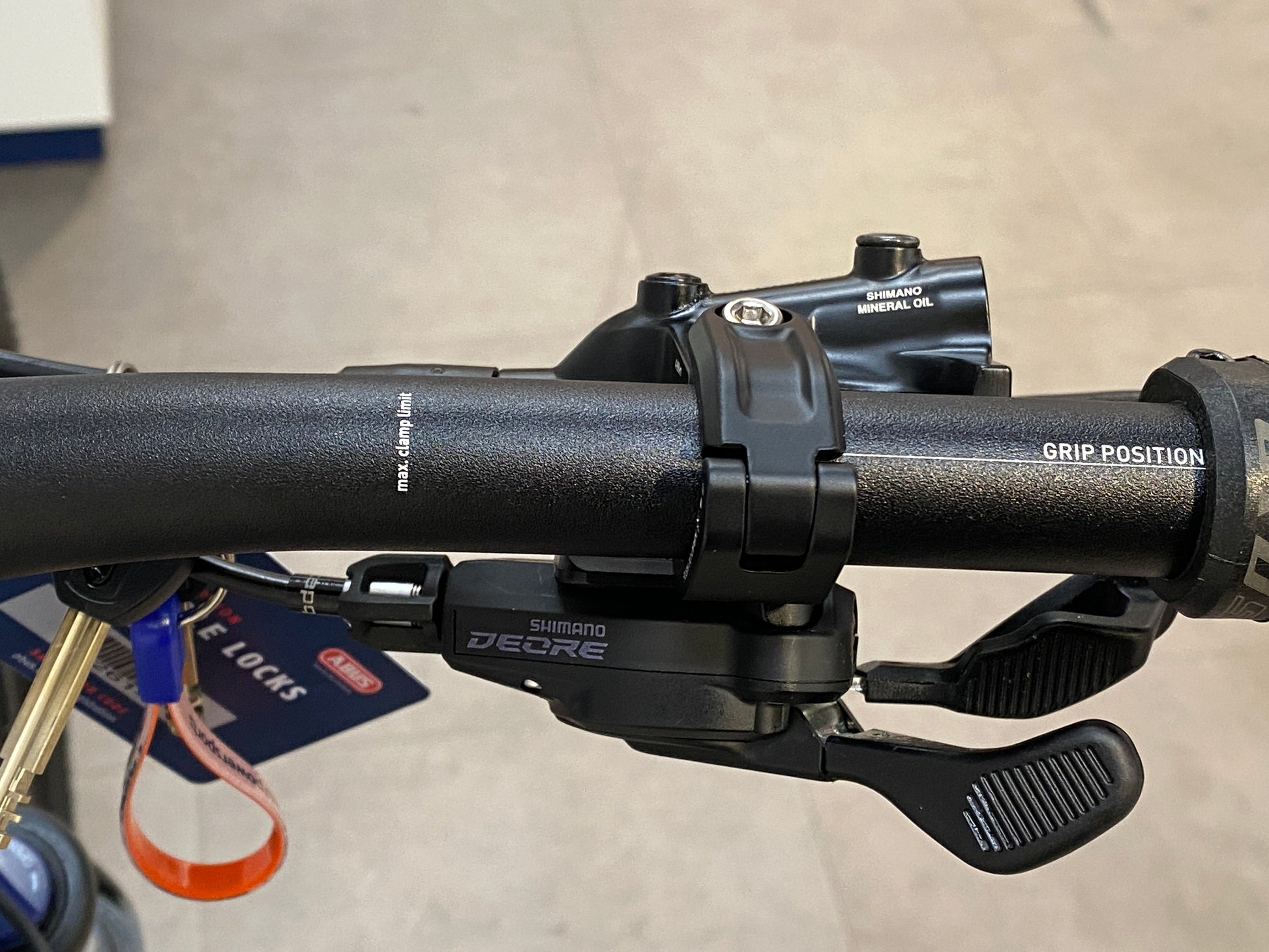

SHIFTER: Shimano Deore SL-M6100
CHAIN: Shimano Deore CN-M6100
CASSETTE: Shimano Deore CS-M6100 10-51

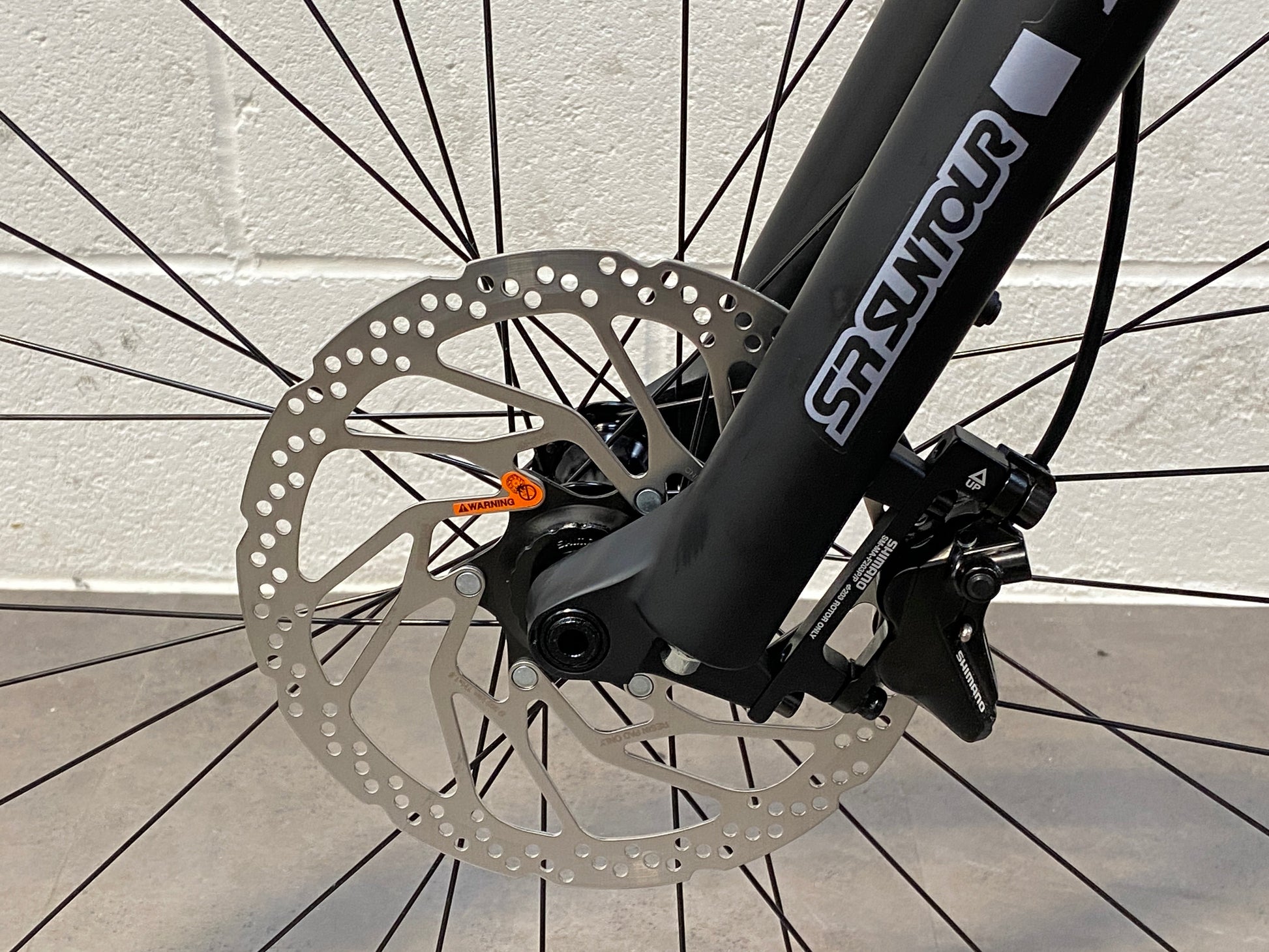

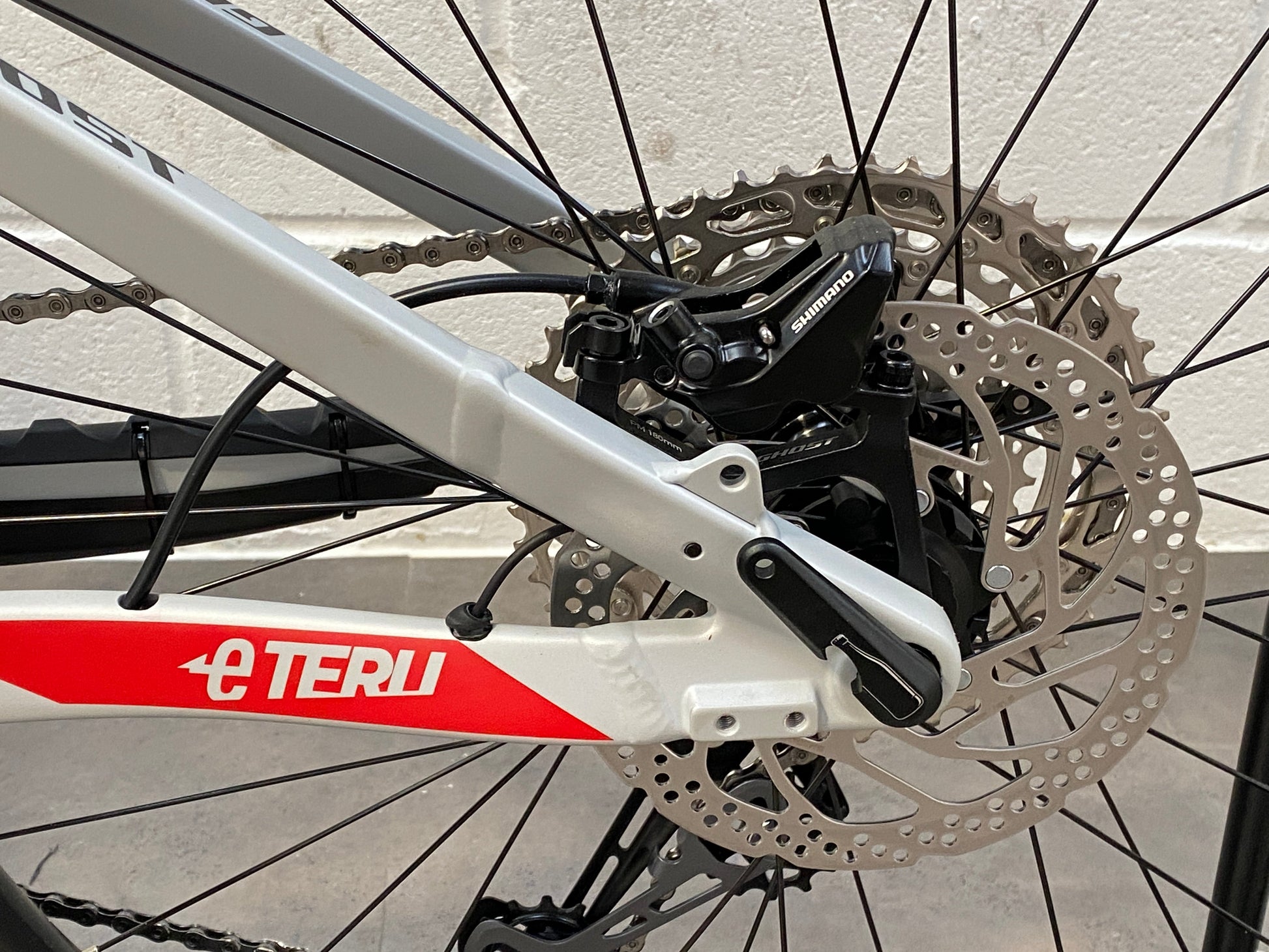

BRAKES: Shimano BR-MT420 203/180mm Disc
CRANKSET: Samox 34T

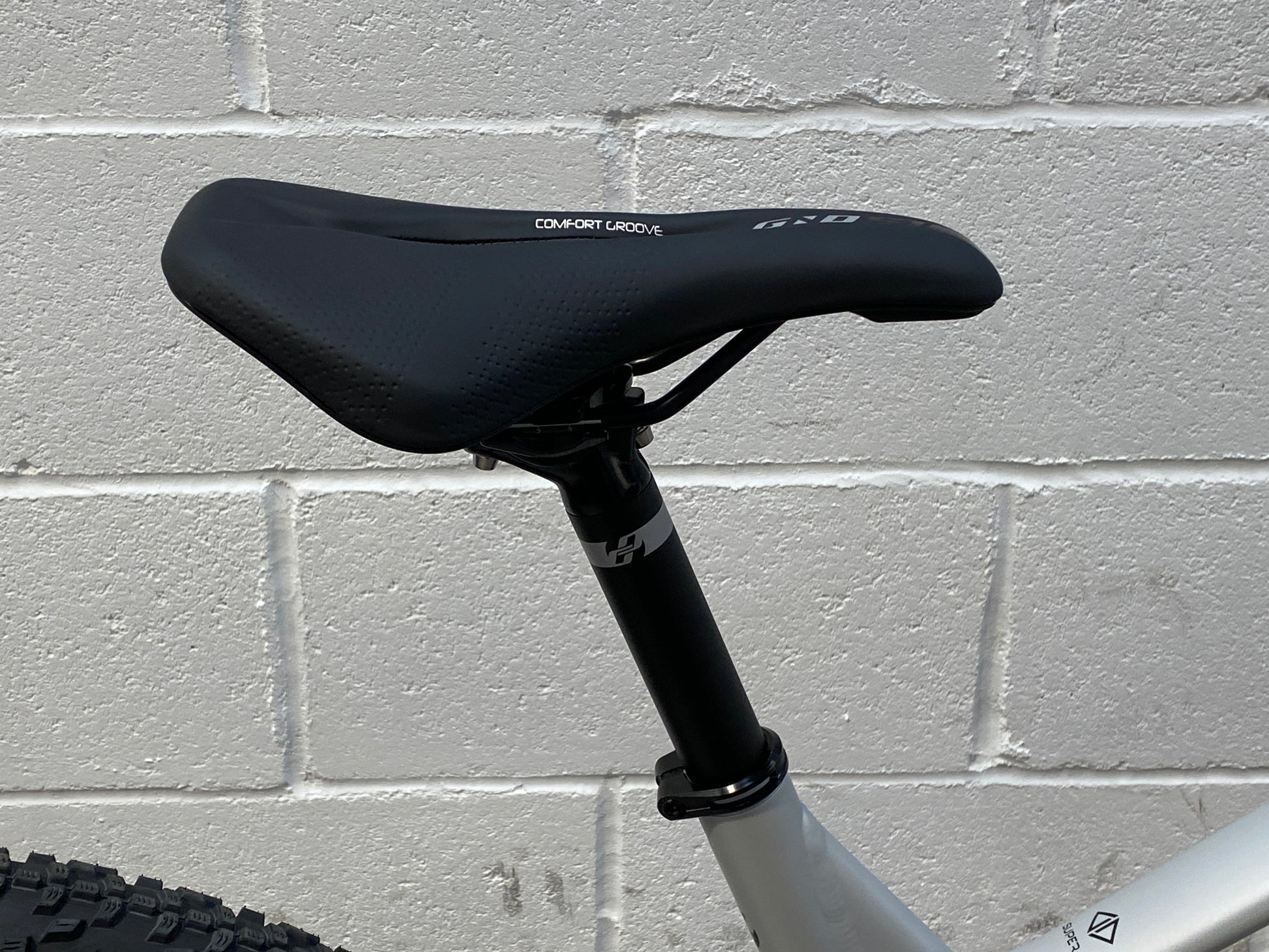

SADDLE: Selle Royal 2315 HRN
BARS: Ground Fiftyone
STEM: Ground Fiftyone
SEAT POST: GHOST SP DC1 31.6 mm
Bike Size |
Small |
Medium |
Large |
X-Large |
Rider hight |
5'2" - 5'6" |
5'6" - 5’10" |
5'10" - 6'1" |
6'1" - 6'4" |
Frame size |
S
|
M
|
L
|
XL
|
---|---|---|---|---|
Wheel Size | 27.5", 27.5" | 29", 29" | 29", 29" | 29", 29" |
Body height | 163-173cm 5'4"-5'8" |
171-181cm 5'7"-5'11" |
179-189cm 5'10"-6'2" |
187-201cm 6'2"-6'7" |
Seattube length (mm) | 390 | 430 | 470 | 510 |
Toptube length (mm) | 587 | 609 | 633 | 663 |
Headtube length (mm) | 100 | 110 | 130 | 150 |
Seattube angle (deg) | 76.5 | 76.5 | 76.5 | 76.5 |
Headtube angle (deg) | 64.5 | 65 | 65 | 65 |
Stack (mm) | 631 | 641 | 659 | 678 |
Reach (mm) | 435 | 455 | 475 | 500 |
BB Drop (mm) | 30 | 30 | 30 | 30 |
Wheelbase (mm) | 1230 | 1248 | 1276 | 1310 |
Chainstay length (mm) | 460 | 460 | 460 | 460 |
Standover height (mm) | 735 | 749 | 748 | 757 |
GHOST User Manual Part 1 (1-144)
GHOST User Manual Part 2 (145-288)
Please note, occasionally, manufacturers may change the specification without notice.
