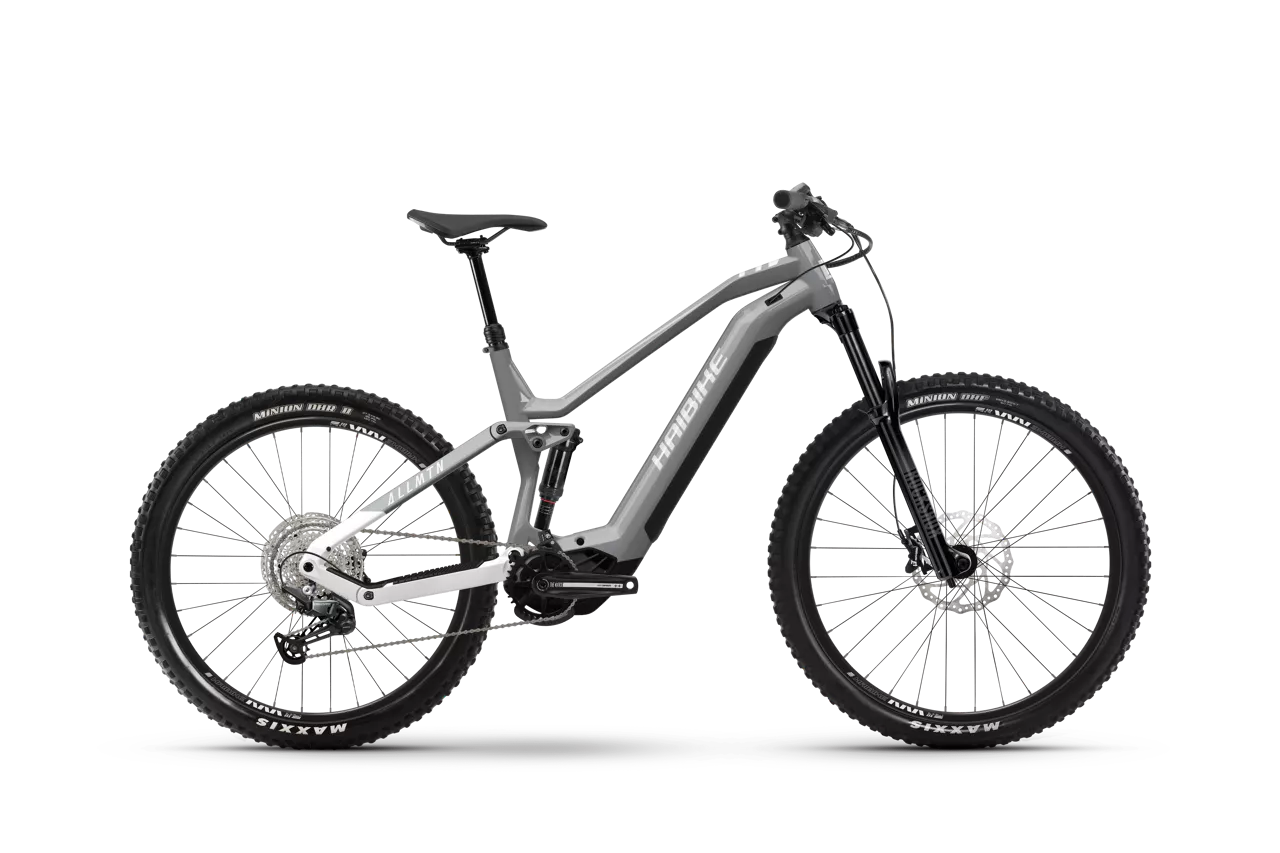

HAIBIKE ALLMTN 3
HAIBIKE ALLMTN 3
Couldn't load pickup availability
HAIBIKE ALLMTN 3
Are you looking for a robust eFully that takes on any terrain? Then our new ALLMTN 3 is the perfect all-rounder for you: With 160 mm travel front and rear, burly 4-piston disc brakes from Shimano and the powerful Yamaha PW-X3 drive, this eMTB takes you smoothly over all trails. Thanks to the mixed wheel sizes of 29" front / 27.5" rear, you will always enjoy perfect traction and master even the steepest uphills and downhills without a problem.
Specification
MOTOR: Yamaha PW-X3 Series
BATTERY: Yamaha InTube 750 Wh
FORK: RockShox 35 Gold RL, Travel: 160mm
SHOCK: Rockshox Air Deluxe Select 160 mm
WHEELS: WTB Hollow rim ST i30 TCS
TYRES: Maxxis Minion DHF II 63-622
DERAILLEUR: Shimano Deore M6100
SHIFTER: Shimano Triggershift Deore M6100
CHAIN: Shimano Chain CN-M6100
CASSETTE: Shimano M6100
BRAKES: Shimano Hydraulic Disc brake MT420
CRANKSET: Haibike The Crank ++
SADDLE: Selle Royal Vivo
BARS: Haibike TheBar +++ Dia. 31.8 mm
PEDDLES: Freeridepedal
GRIPS: Haibike MTB grips
SEAT POST: Haibike Dropperpost
PERMISSIBLE TOTAL VEHICLE WEIGHT: 130KG
| Frame size | S | M | L | XL | |
|---|---|---|---|---|---|
| Chainstay length (mm) | 460 | 460 | 460 | 460 | |
| Wheel size | 29" | 29" | 29" | 29" | |
| wheelbase (mm) | 1220 | 1250 | 1279 | 1313 | |
| Top tube length in millimeters | 570 | 600 | 627 | 659 | |
| Seat tube length (mm) | 410 | 440 | 465 | 495 | |
| Bottom bracket drop (mm) | -20 | -20 | -20 | -20 | |
| Seat tube angle | 75 | 75 | 75 | 75 | |
| Stack height (mm) | 646 | 646 | 655 | 664 | |
| Reach (mm) | 421 | 451 | 475 | 505 | |
| Head tube length (mm) | 120 | 120 | 130 | 140 | |
| Head tube angle | 64.5 | 64.5 | 64.5 | 64.5 |
