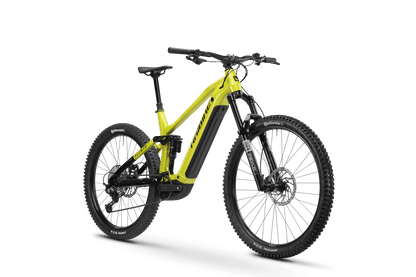

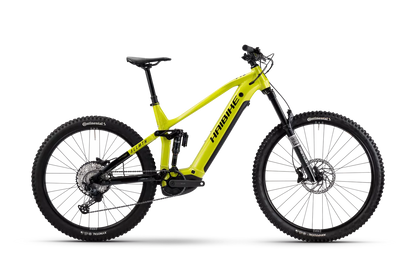

HAIBIKE ALLMTN 6

HAIBIKE ALLMTN 6

£4,699.00 GBP
£4,699.01 GBP £4,699.00 GBP
Sale Sold out
Tax included.
Size

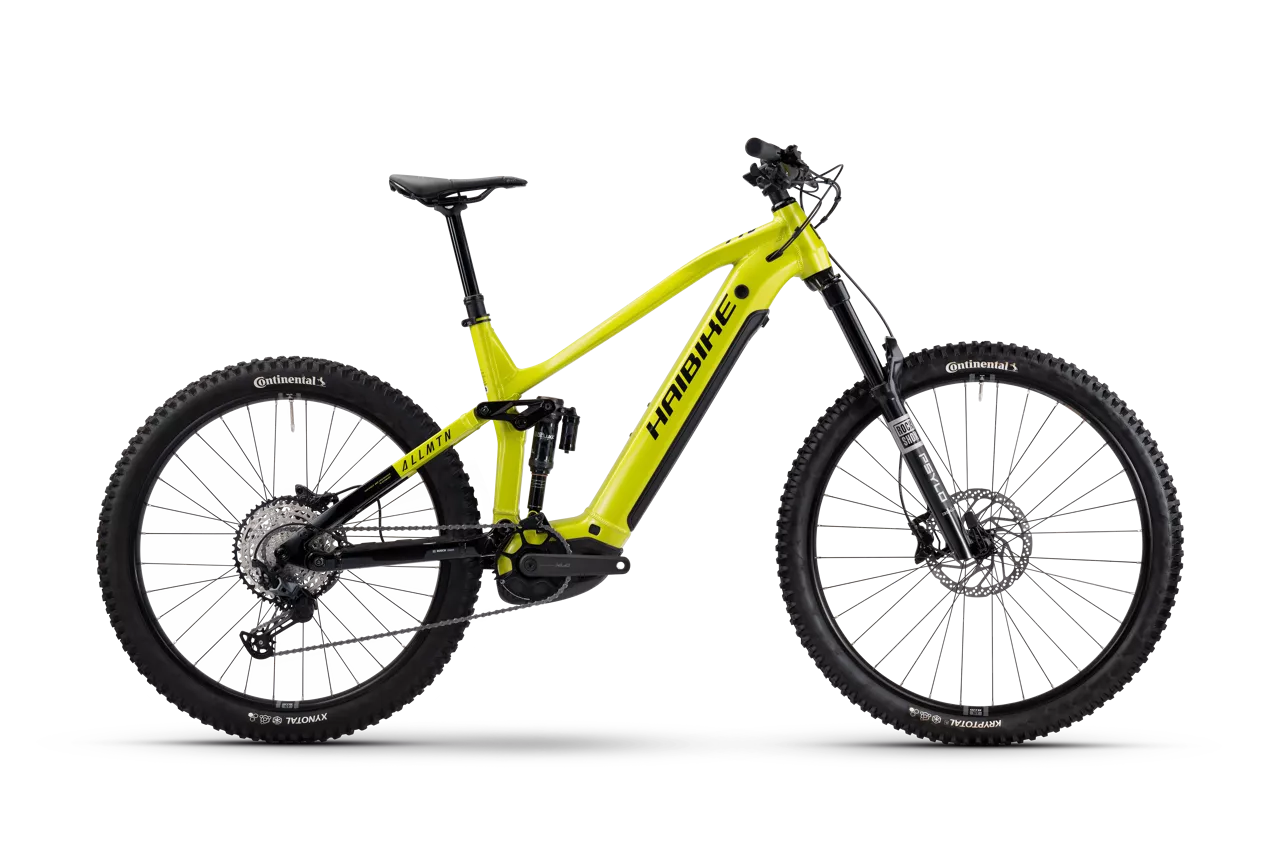

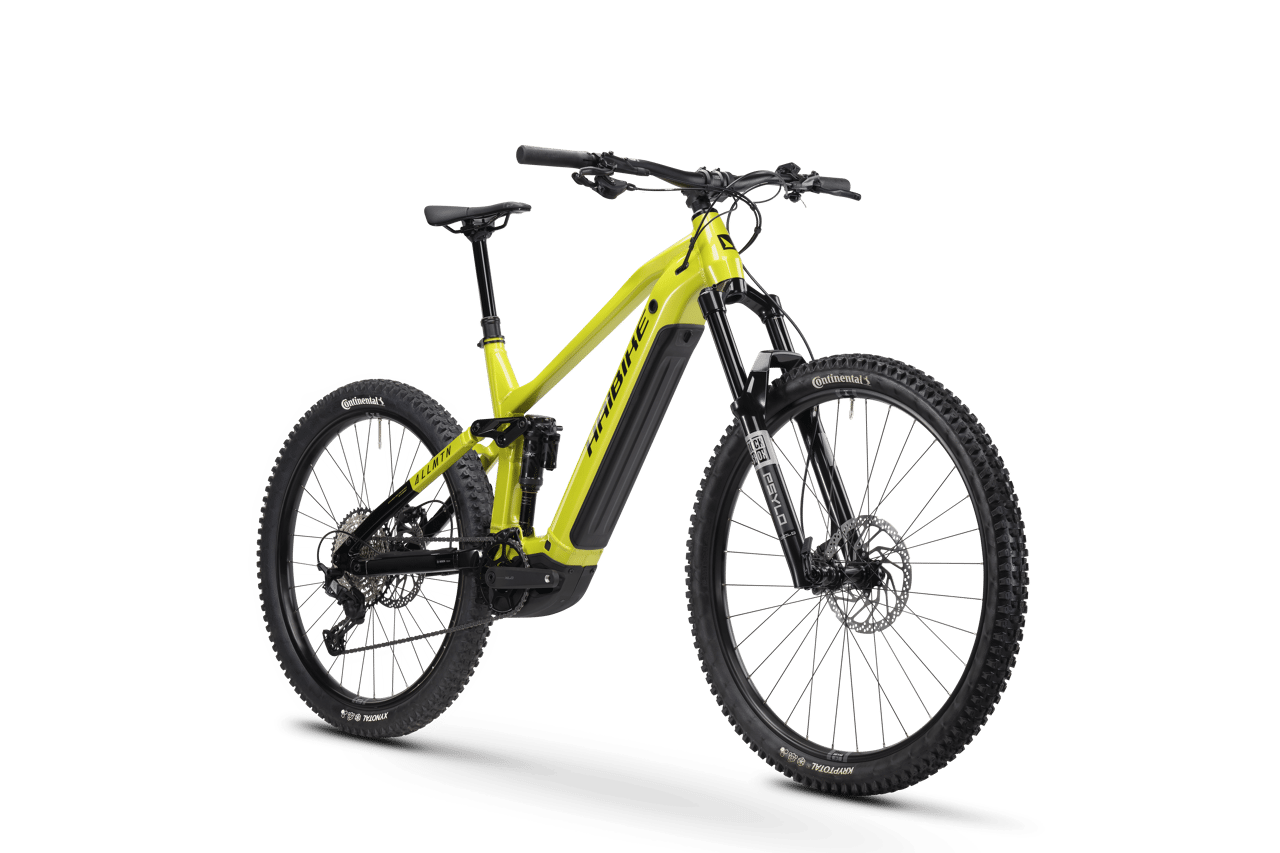

Climb every peak, enjoy every valley. With our new ALLMTN 6, you’re perfectly equipped for any mountain adventure – uphill, downhill, and even when the terrain gets rough. The foundation of this versatility is our specially developed all-mountain frame platform, paired with the powerful Bosch Performance CX motor, making no trail too steep. The rest of the setup also delivers, featuring a mullet wheel mix, 160mm front travel, 150mm rear travel and sharp Shimano disc brakes. The 800Wh battery ensures you have plenty of endurance for those long climbs, and with the optional Range Extender, you can take your range even further. Ideal conditions to experience the best of both the peaks and valleys – anywhere you ride.

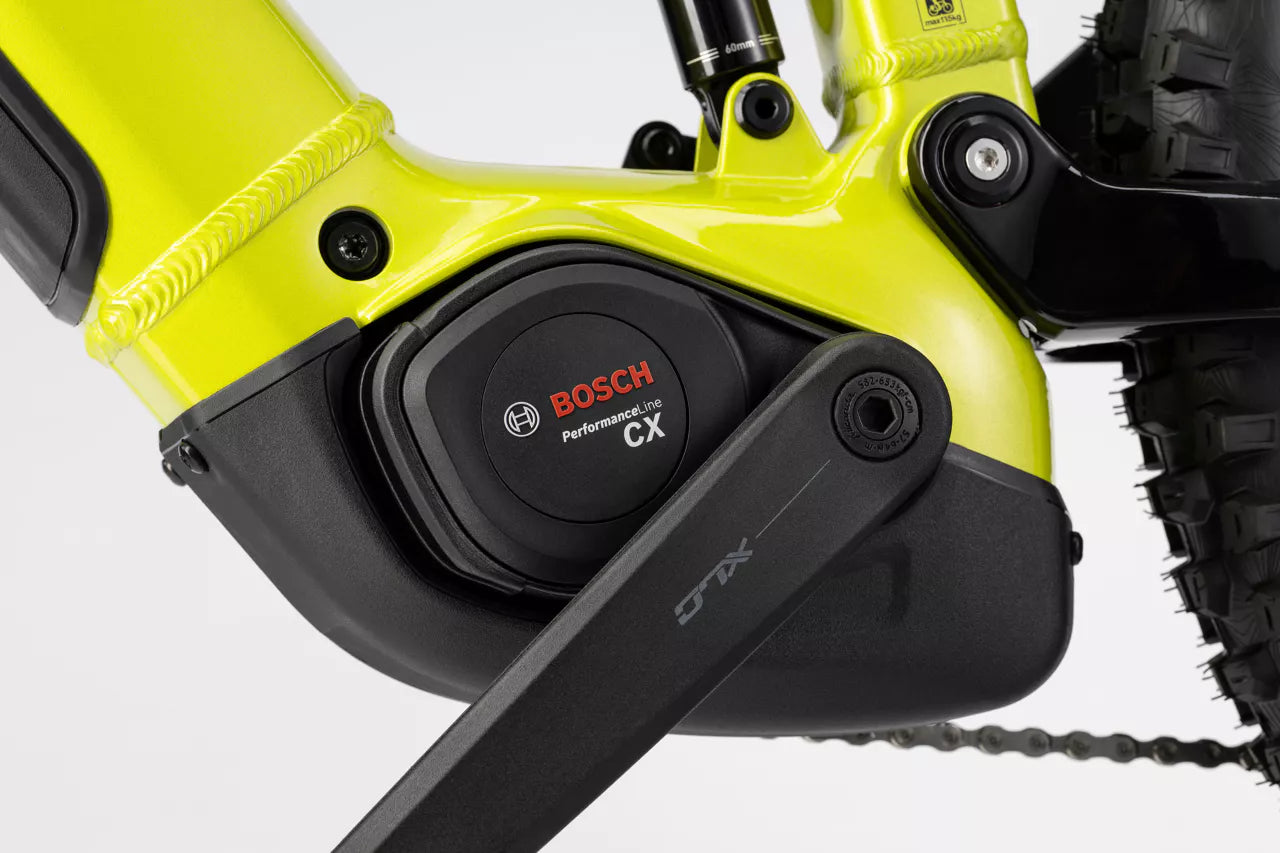

MOTOR: Bosch Performance Line CX Gen 5
BATTERY: Bosch InTube 800 Wh

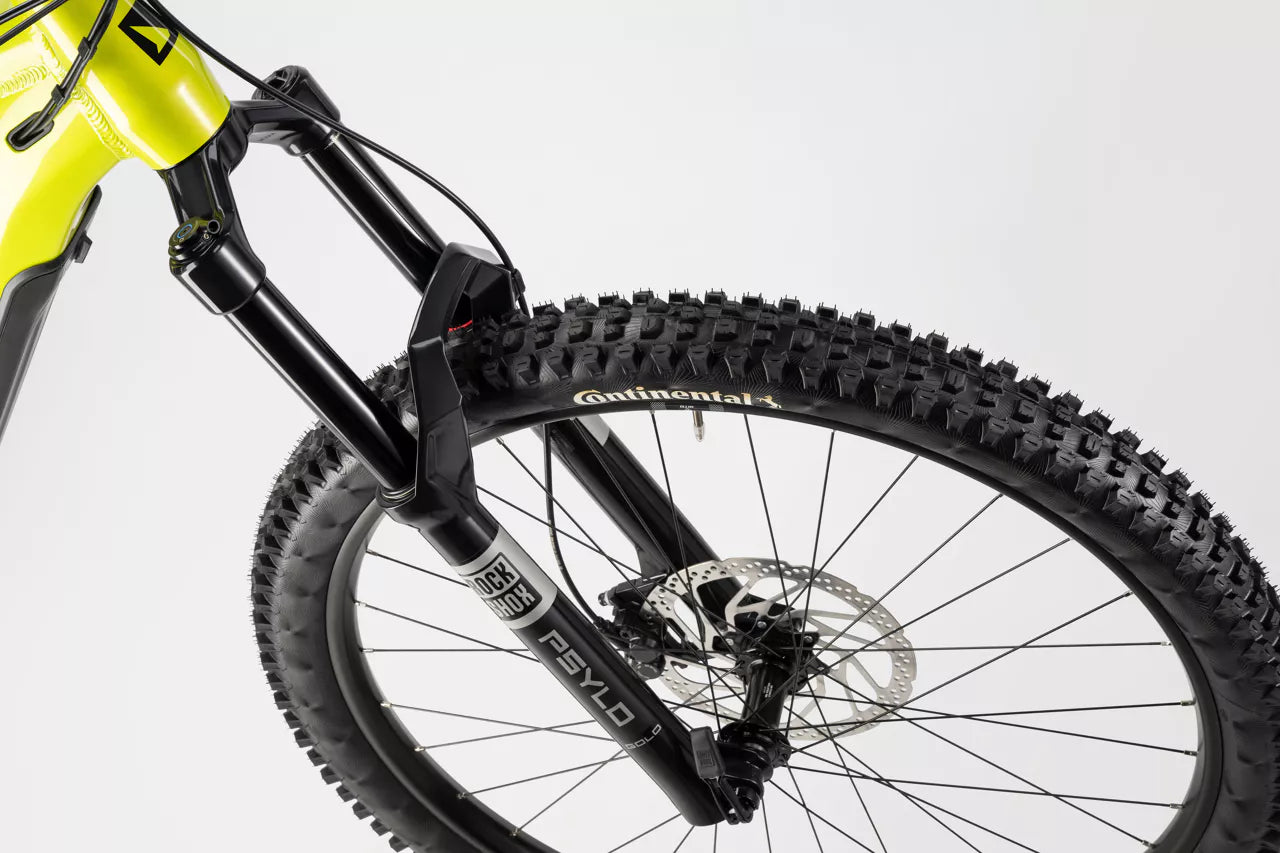

FORK: Rockshox Psylo Gold RC, Crown Adj, DebonAir 160 mm

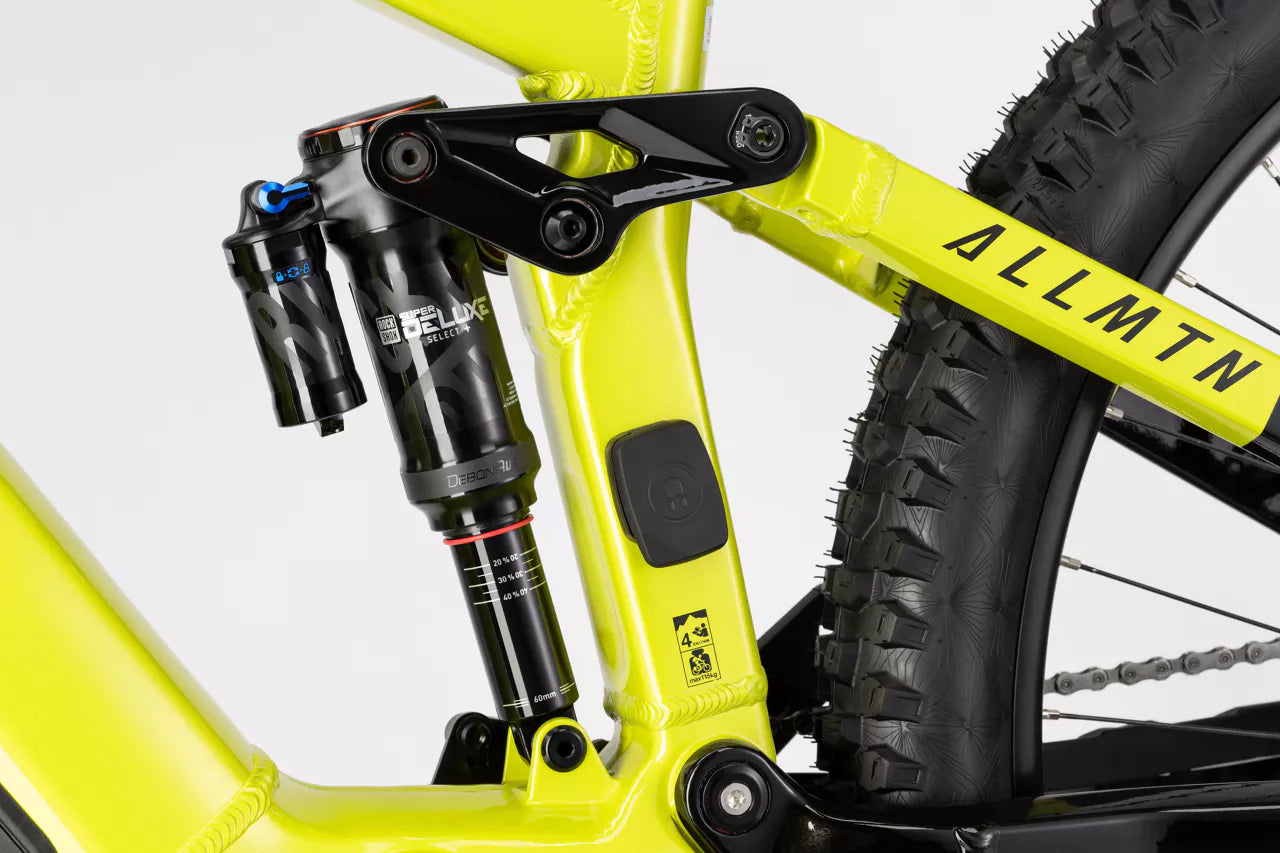

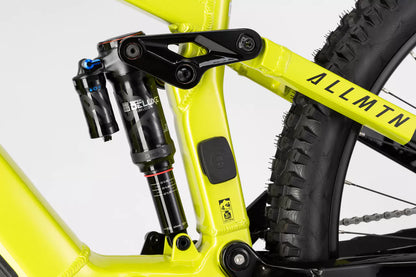

SHOCK: Rockshox Deluxe Select+ RT 205x65mm, Trunnion, DebonAir+
WHEELS: WTB ST i30 TCS 2.0, 28” +27.5”
TYRES: Continental Kryptotal-Fr, Trail Endurance, foldable skin SL 2.4

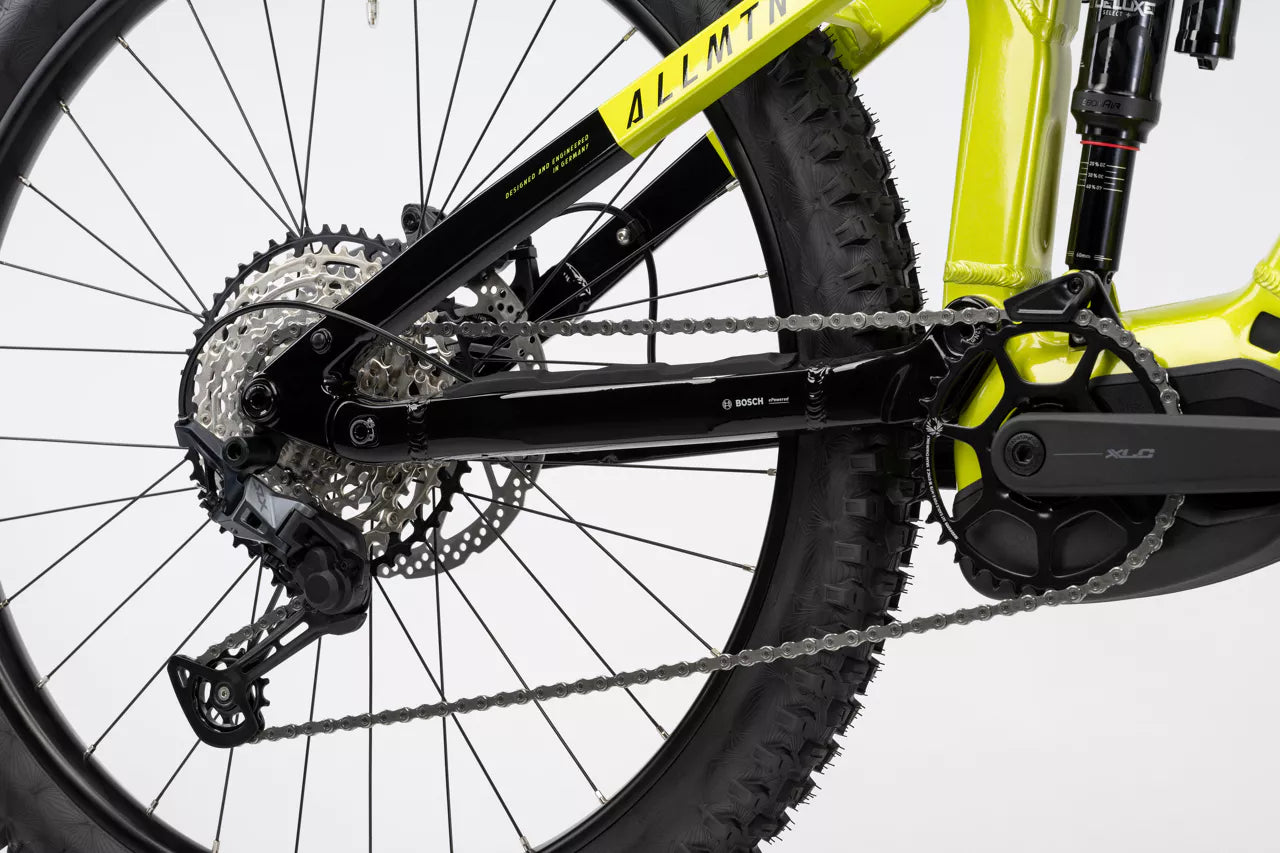

DERAILLEUR: Shimano SLX RD-M7100-SGS 12s, Shadow+
SHIFTER: Shimano Triggershift Deore SL-M6100-R, Rapidfire+
CHAIN: Shimano Chain Deore CN-M6100 12s
CASSETTE: Shimano SLX CS-M7100-12, MICRO SPLINE
BRAKES: Shimano Hydraulic Disc brake Deore BR-MT420
CRANKSET: Miranda Crius ISIS Crankset + Chainring for Bosch BDU38 160

SADDLE: Prologo Proxim W400 T2.0 153 mm

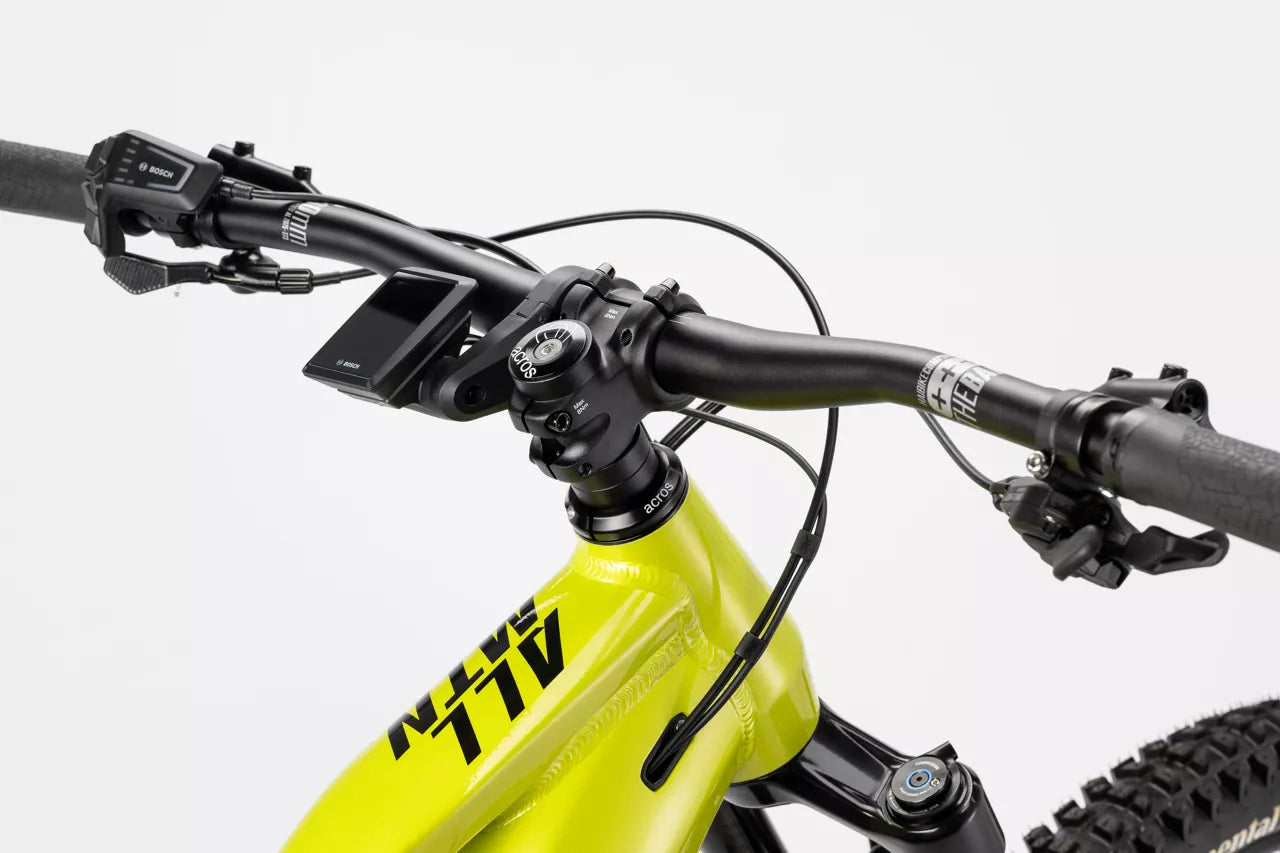

BARS: Haibike Flat bar TheBar++ Dia. 31.8 mm
PEDDLES: VP VPE-527
GRIPS: XLC VLG-1751D2
SEAT POST: Limotec Dropperpost A1H Dropper, Dia. 34.9 mm, Travel: 125 mm

PERMISSIBLE TOTAL VEHICLE WEIGHT: 130KG


Frame size S M L XL
Stack height (mm) 651 651 656 660
Bottom bracket drop (mm) 20 20 20 20
Wheel size 29" 29" 29" 29"
Seat tube length (mm) 405 435 465 485
wheelbase (mm) 1206 1233 1268 1303
Reach (mm) 408 435 468 501
Head tube length (mm) 130 130 135 140
Top tube length in millimeters 567 594 628 662
Chainstay length (mm) 455 455 455 455
Seat tube angle 75 75 75 75
Head tube angle 64.5 64.5 64.5 64.5



Please note, occasionally, manufacturers may change the specification without notice.
