Husqvarna Gran City GC3
Husqvarna Gran City GC3
Couldn't load pickup availability

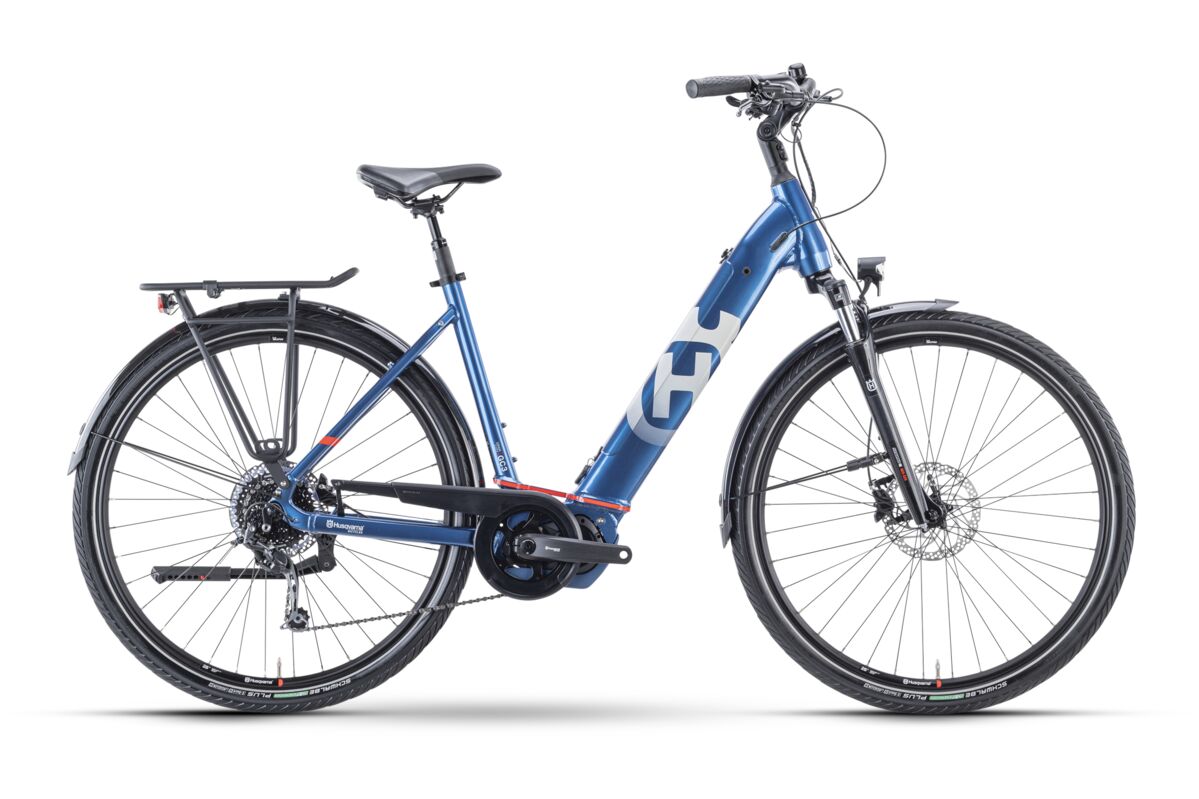

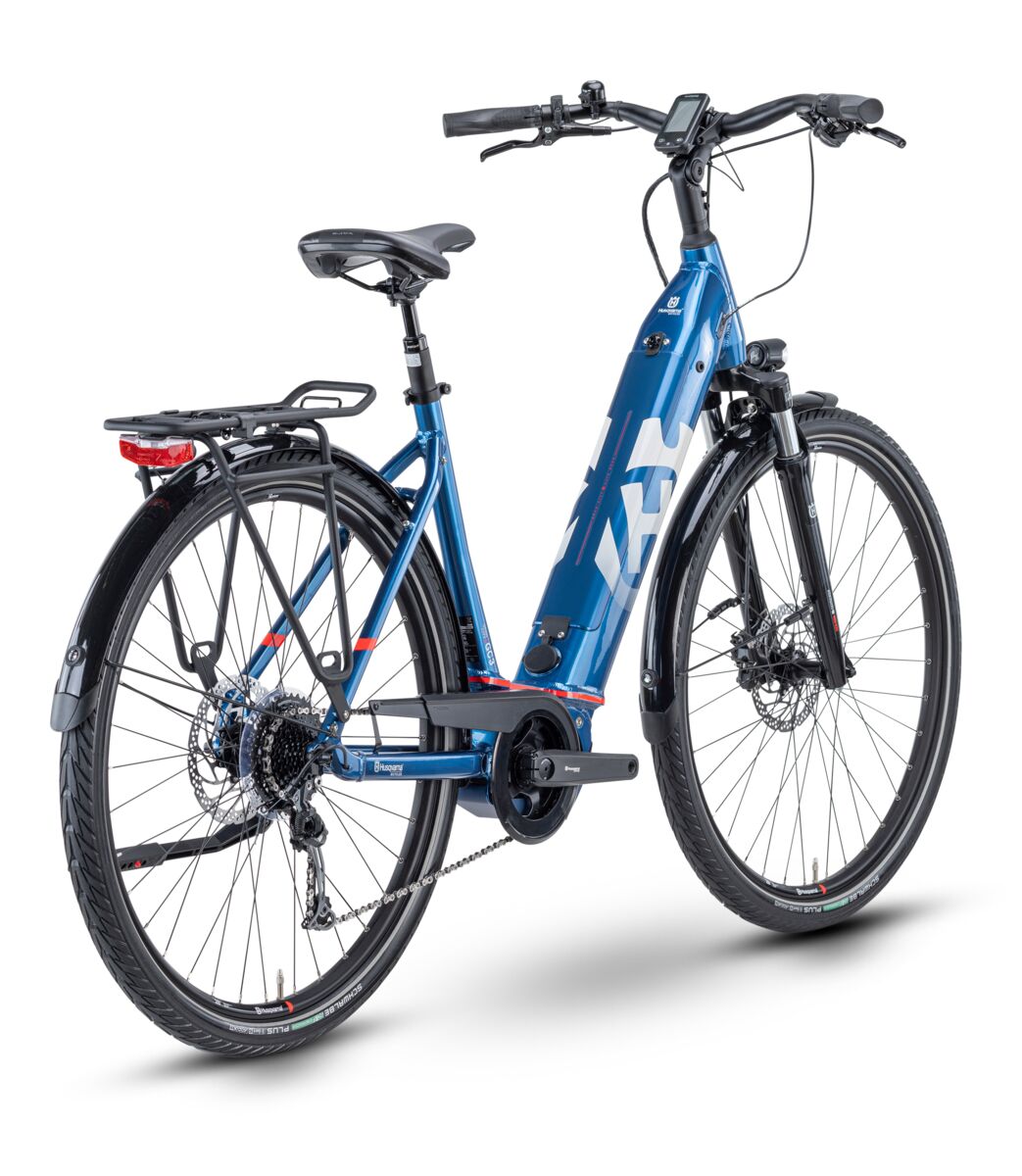

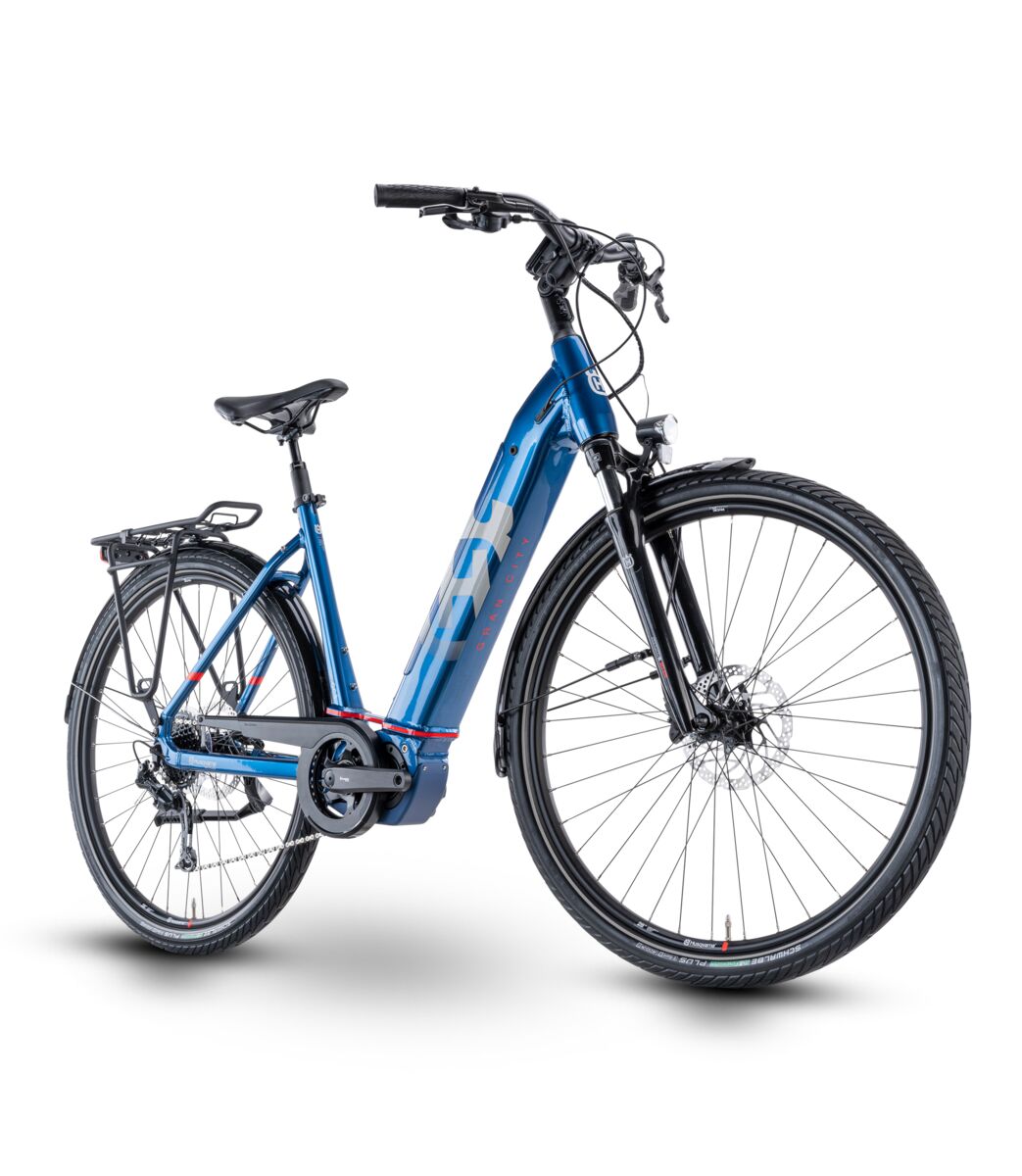

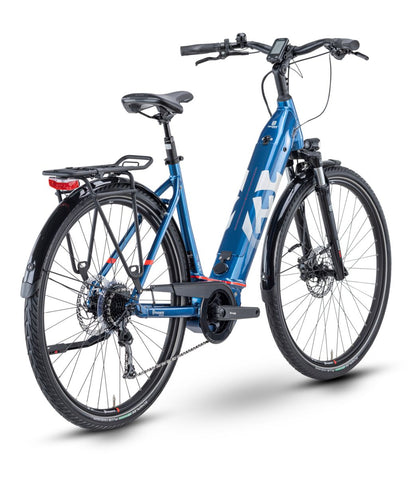

Gran City 3
With 60 Nm torque, the GC3 allows you to cruise through traffic without breaking a sweat. Light and easy to ride, it is the best E-Bike to reacquaint yourself with your city – stress-free.
Specification
MOTOR: Shimano E6100, DU-E6100, 250 W, 60 Nm
BATTERY: Core S1, 630 Wh
FORK: SR SUNTOUR NEX-E25, Coil, 63 mm
WHEELS: Ryde Disc21
TYRES: Schwalbe Delta Cruiser/Energizer Plus
DERAILLEUR: Tektro RD-T350, 9-S
SHIFTER: Tektro SL-M350R
CHAIN: KMC e9S
CASSETTE: Tektro CS-M350, 11-46 T
BRAKES: Tektro Vela, 2-piston, Hydraulic disc brake
CRANKSET: Husqvarna, 38 T
SADDLE: Husqvarna
BARS: Husqvarna Ergo 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm
STEM: Husqvarna 31.8, Ahead, adjustable
PEDDLES: Husqvarna, aluminum
GRIPS:Husqvarna Ergo, Lock-on grips
SEAT POST: Husqvarna, 31.6 mm, Suspension post
GEOMETRIES
| SIZE | XS | S | M | L |
| A - Top Tube Length | 655mm | 645mm | 654mm | 662mm |
| B - Seat Tube Length | 420mm | 460mm | 500mm | 540mm |
| C - Seat Tube Angle | 73° | 73° | 73° | 73° |
| D - Head Tube Length | 155mm | 155mm | 170mm | 180mm |
| E - Steering Angle | 69.5° | 69.5° | 69.5° | 69.5° |
| F - Chain Stay Length | 425mm | 455mm | 455mm | 455mm |
| G - Wheel Base | 1142mm | 1164mm | 1174mm | 1183mm |
| I - BB-Drop | 60mm | 60mm | 60mm | 60mm |
| K - Stack | 621mm | 652mm | 659mm | 676mm |
| L - Reach | 470mm | 450mm | 455mm | 460mm |
