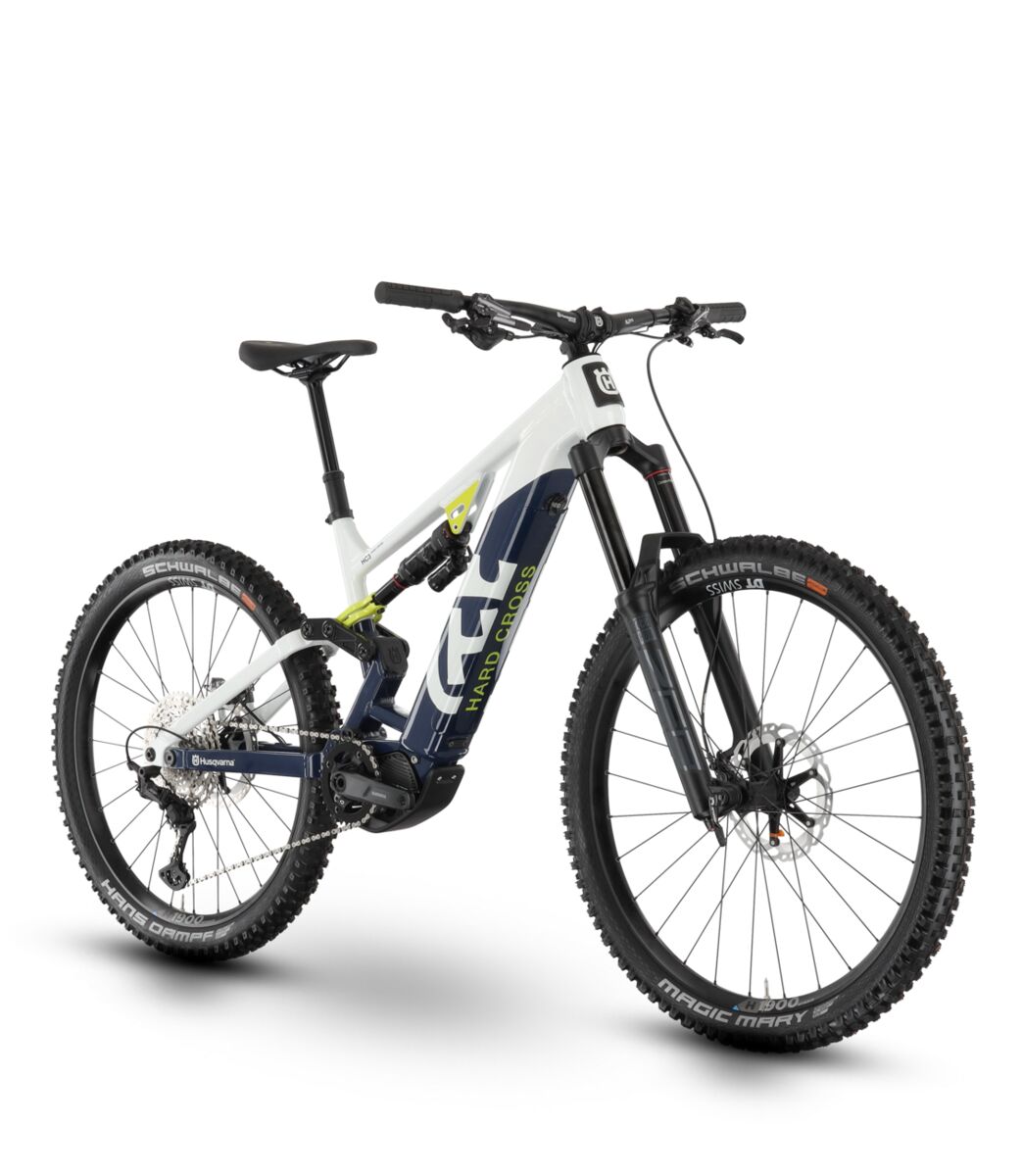

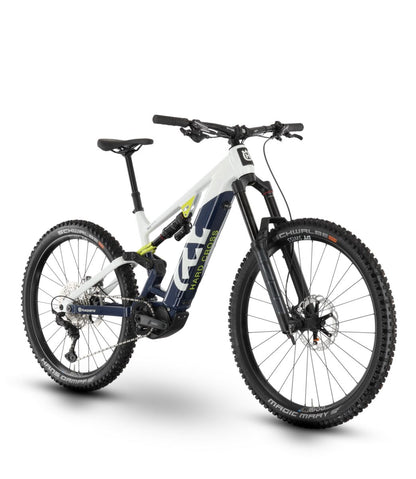

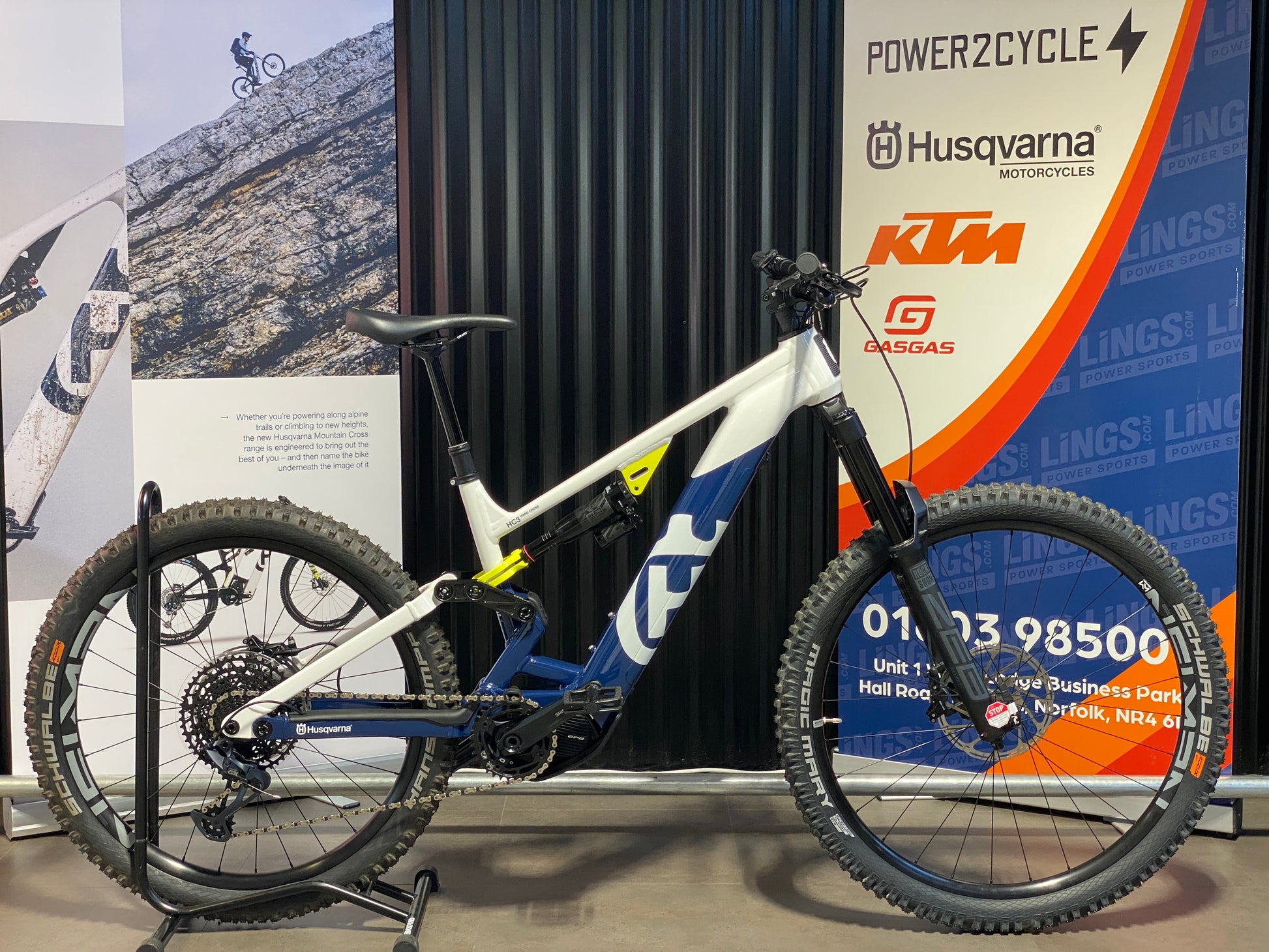

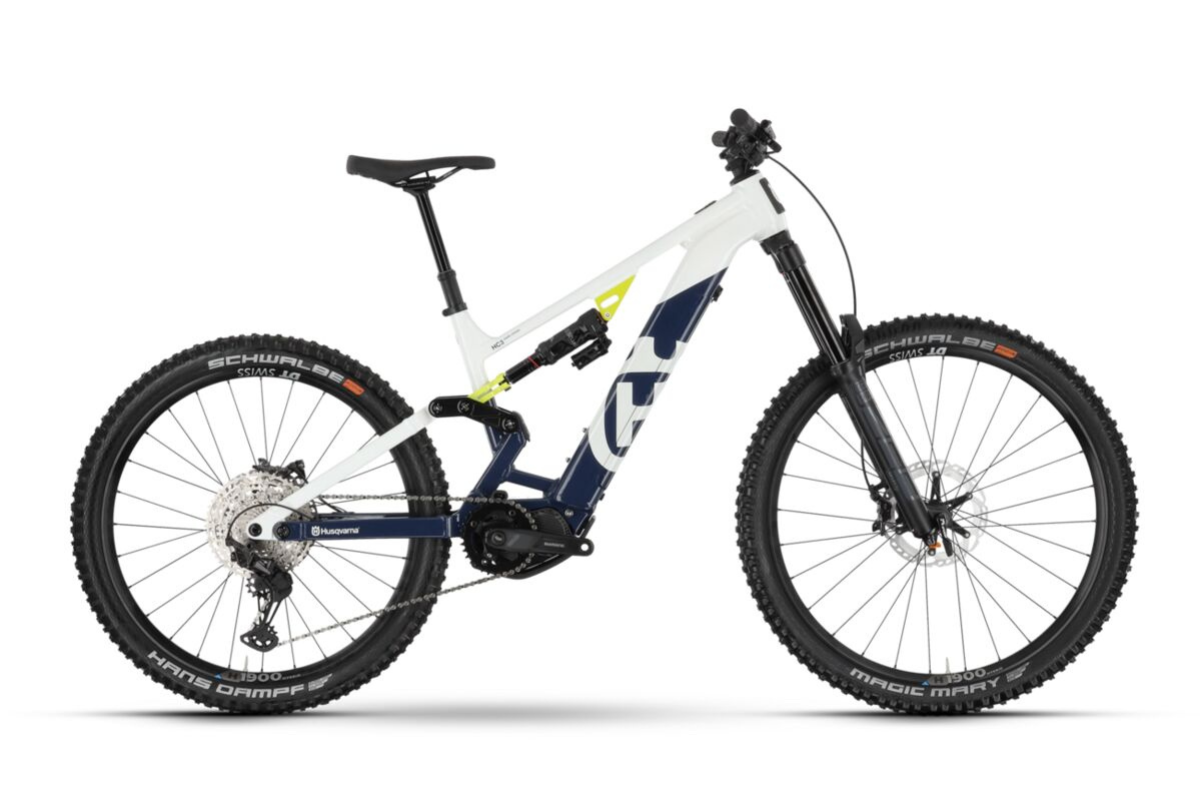

Husqvarna Hard Cross HC3
Husqvarna Hard Cross HC3
Couldn't load pickup availability
Hard Cross 3
Climb uphill as confidently as you would shred downhill. The ride dynamics of the HC3 is enhanced by its new centralised seating position; enabling rides to be smoother, and handling par none.
Specification
MOTOR: Shimano EP6, DU-EP600, 250 W, 85 Nm
BATTERY: Core S1+, 630 Wh, 36 V, 17.5 Ah

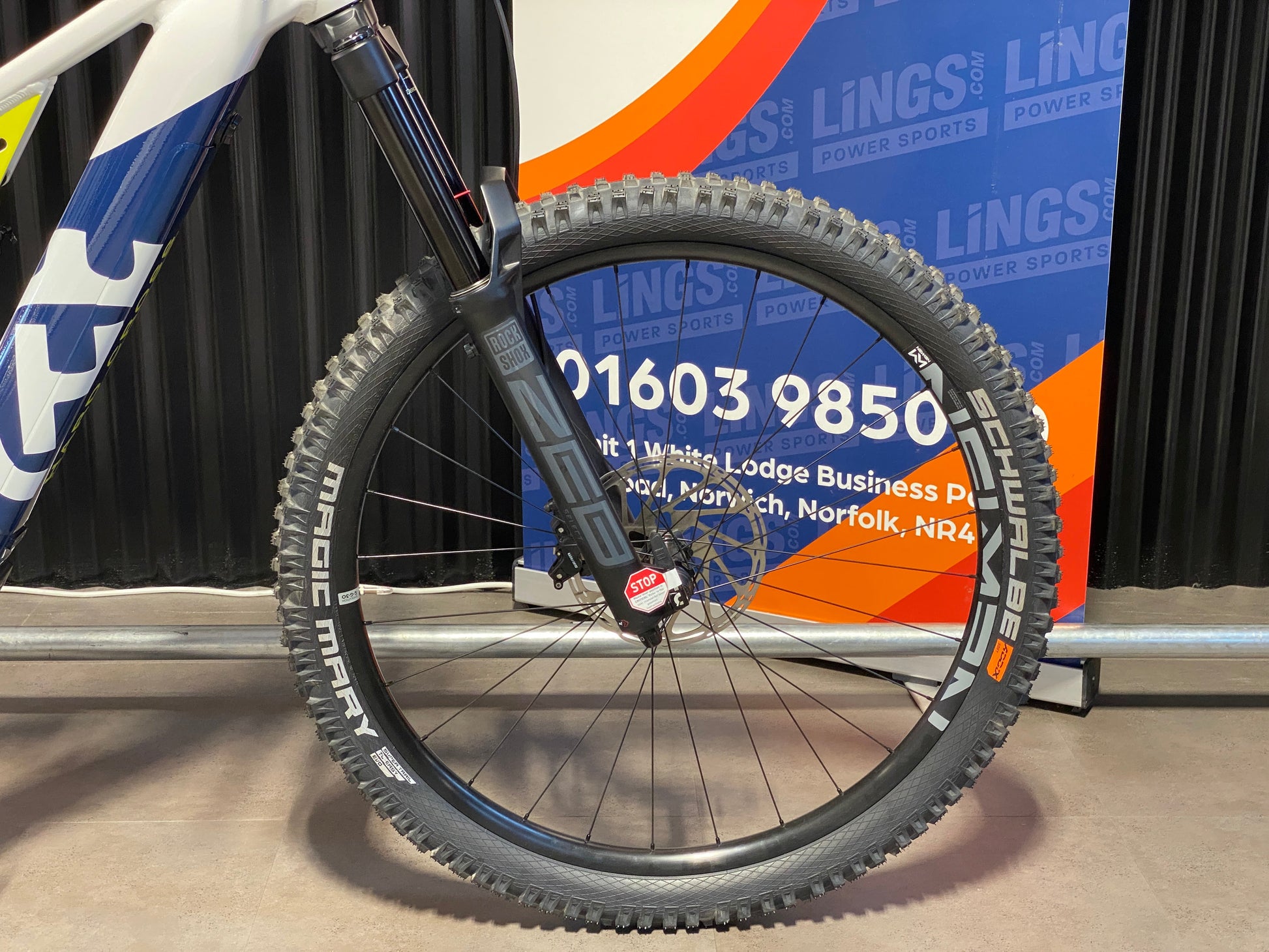

FORK: RockShox ZEB Select, DebonAir, Air, 180 mm, tapered

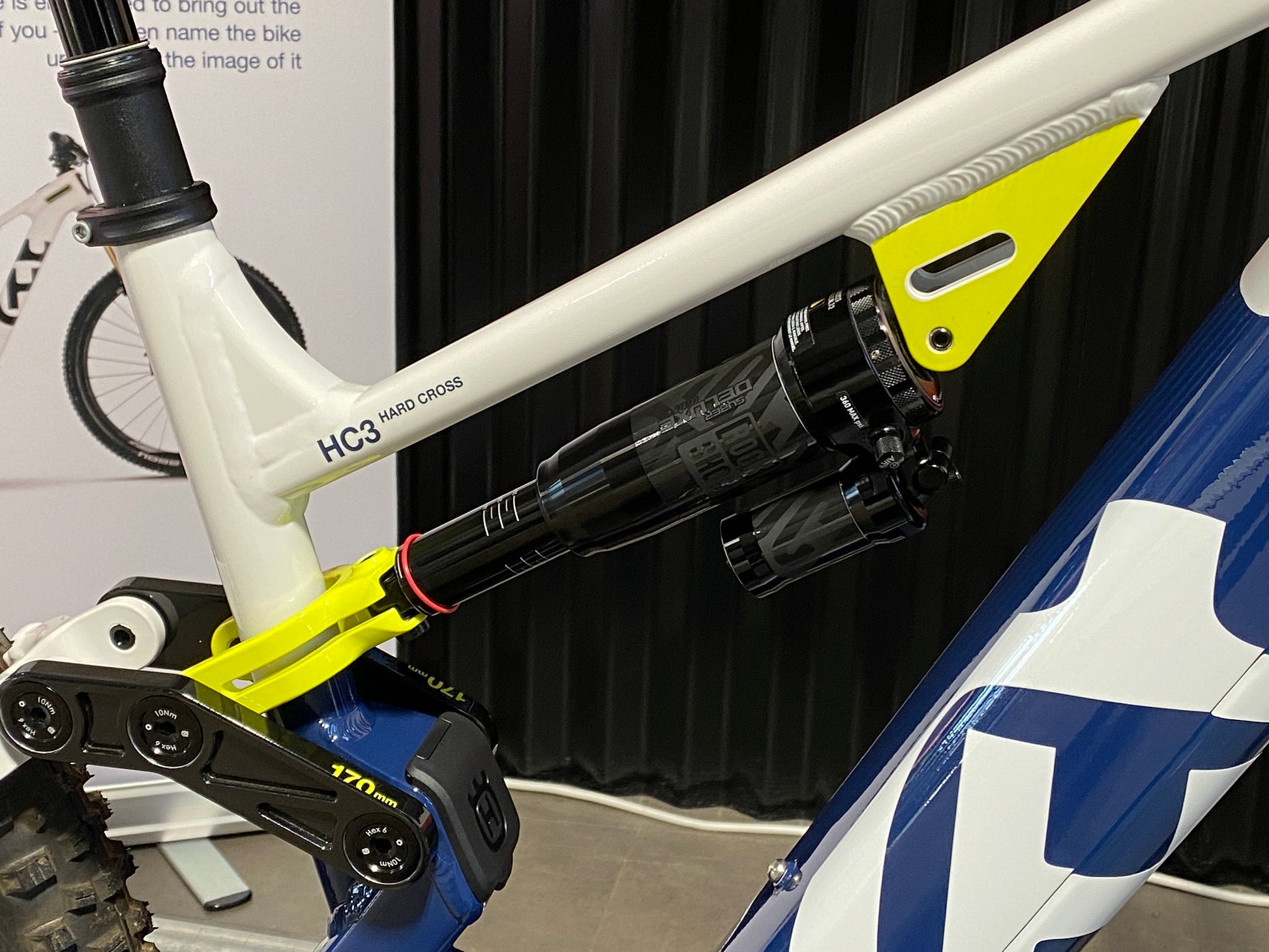

SHOCK: RockShox Super Deluxe Select+, Air, 230x65 mm
WHEELS: NEWMEN Evolution E.G (29", 27.5")
TYRES: Schwalbe: Magic Mary Evolution 2.4, Hans Dampf Evolution 2.6
Derailleur: SRAM GX Eagle, 12-S
SHIFTER: RockShox Super Deluxe Select+, Air, 230x65 mm
CHAIN: SRAM GX Eagle
CASSETTE: Shimano FC-EM600
BRAKES: SRAM G2 R, 4-piston
CRANKSET: Shimano FC-EM600, SRAM X-Sync Eagle 34 T
SADDLE: Husqvarna MTB

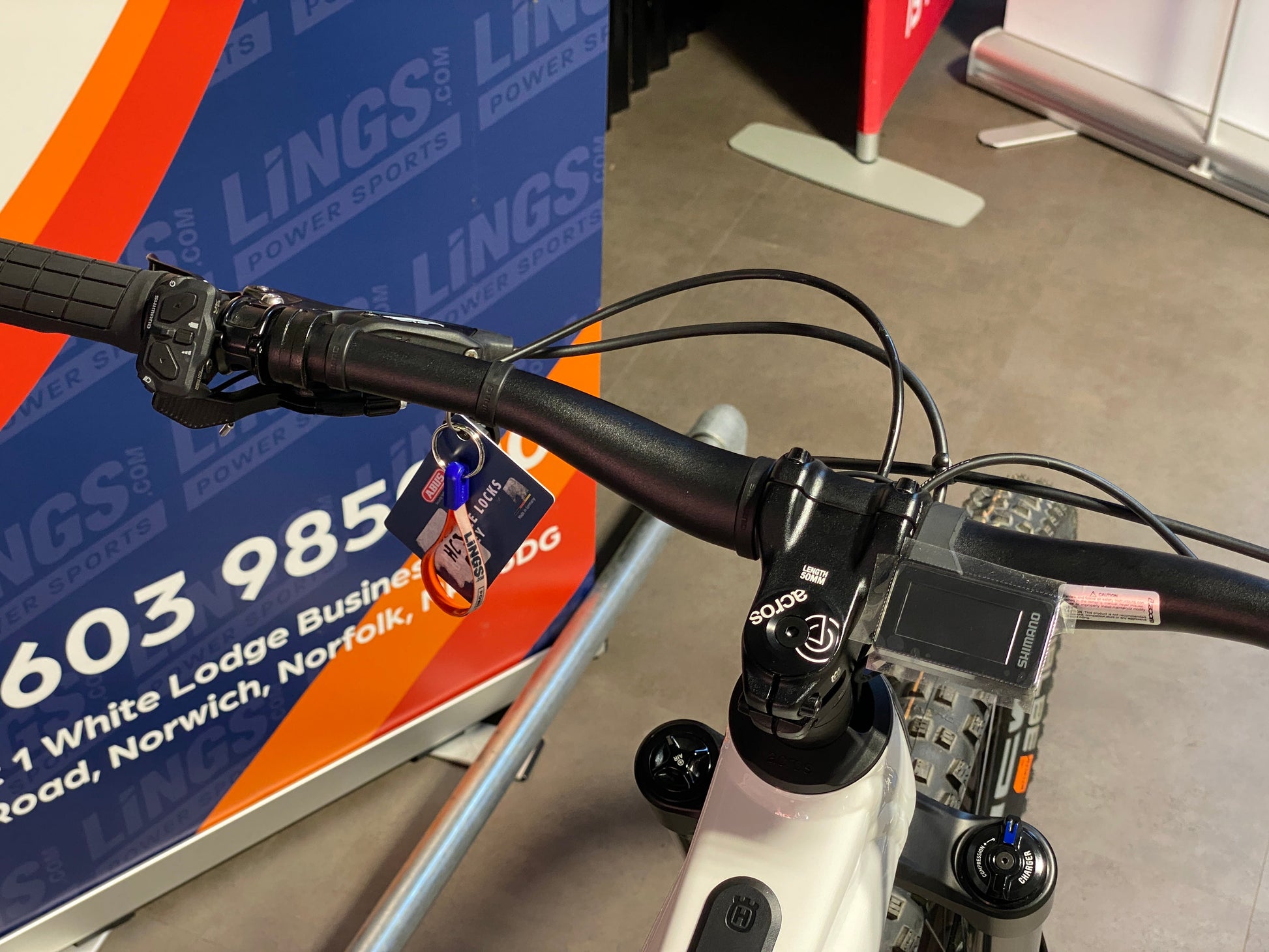

BARS: Husqvarna Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm
STEM: Husqvarna 35, 0 °, Ahead
PEDDLES: Husqvarna, aluminium
GRIPS: Husqvarna MTB, Lock-on grips

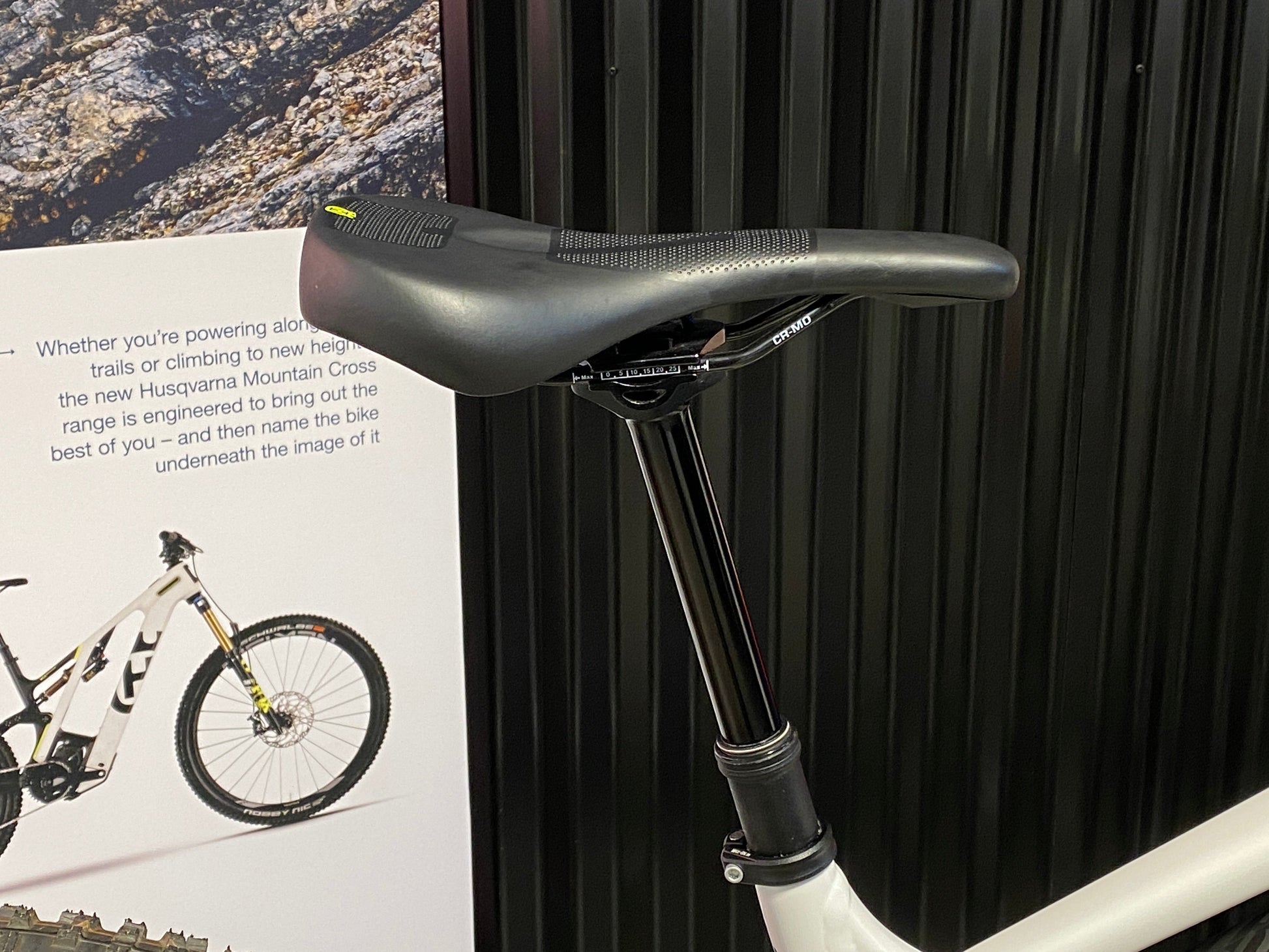

SEAT POST: Husqvarna Pro, 31.6 mm, Dropper post
PERMISSIBLE TOTAL VEHICLE WEIGHT: 130KG
GEOMETRIES
|
Bike Size |
Small |
Medium |
Large |
X-Large |
|
Rider height |
5'3" - 5'6" |
5'7" - 5'9" |
5'10" - 6'0" |
6'1" - 6'4" |
| SIZE | S | M | L | XL |
| A - Top Tube Length | 574mm | 604mm | 632mm | 661mm |
| B - Seat Tube Length | 410m | 435mm | 460mm | 485mm |
| C - Seat Tube Angle | 77.4° | 77.3° | 77.2° | 77.2° |
| D - Head Tube Length | 100mm | 115mm | 130mm | 145mm |
| E - Steering Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| F - Chain Stay Length | 445mm | 445mm | 445mm | 445mm |
| G - Wheel Base | 1215mm | 1248mm | 1277mm | 1309mm |
| I - BB-Drop | 18mm | 18mm | 18mm | 18mm |
| K - Stack | 647mm | 661mm | 674mm | 687mm |
| L - Reach | 430mm | 455mm | 480mm | 505mm |
Please note, occasionally, manufacturers may change the specification without notice.
