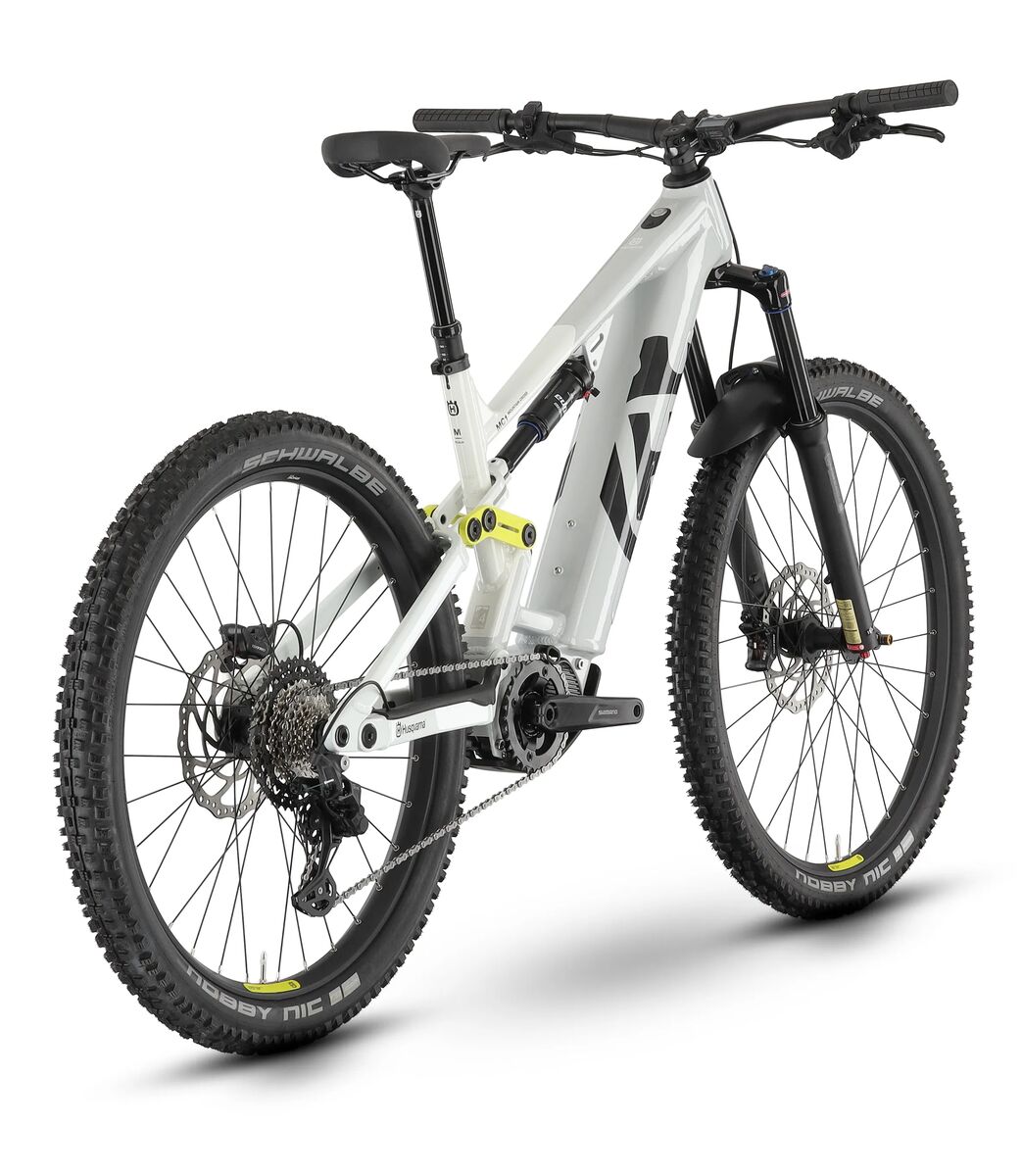

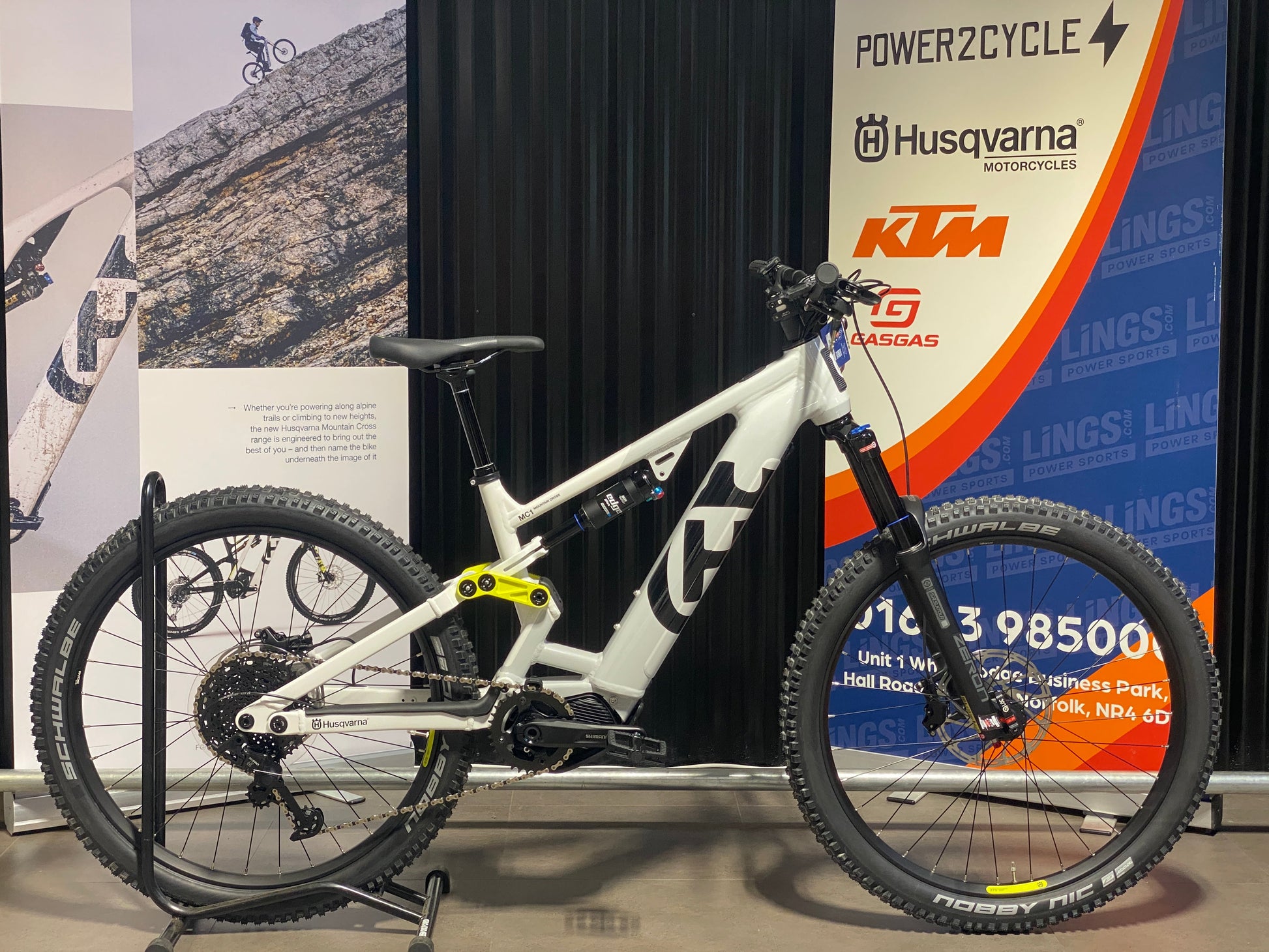

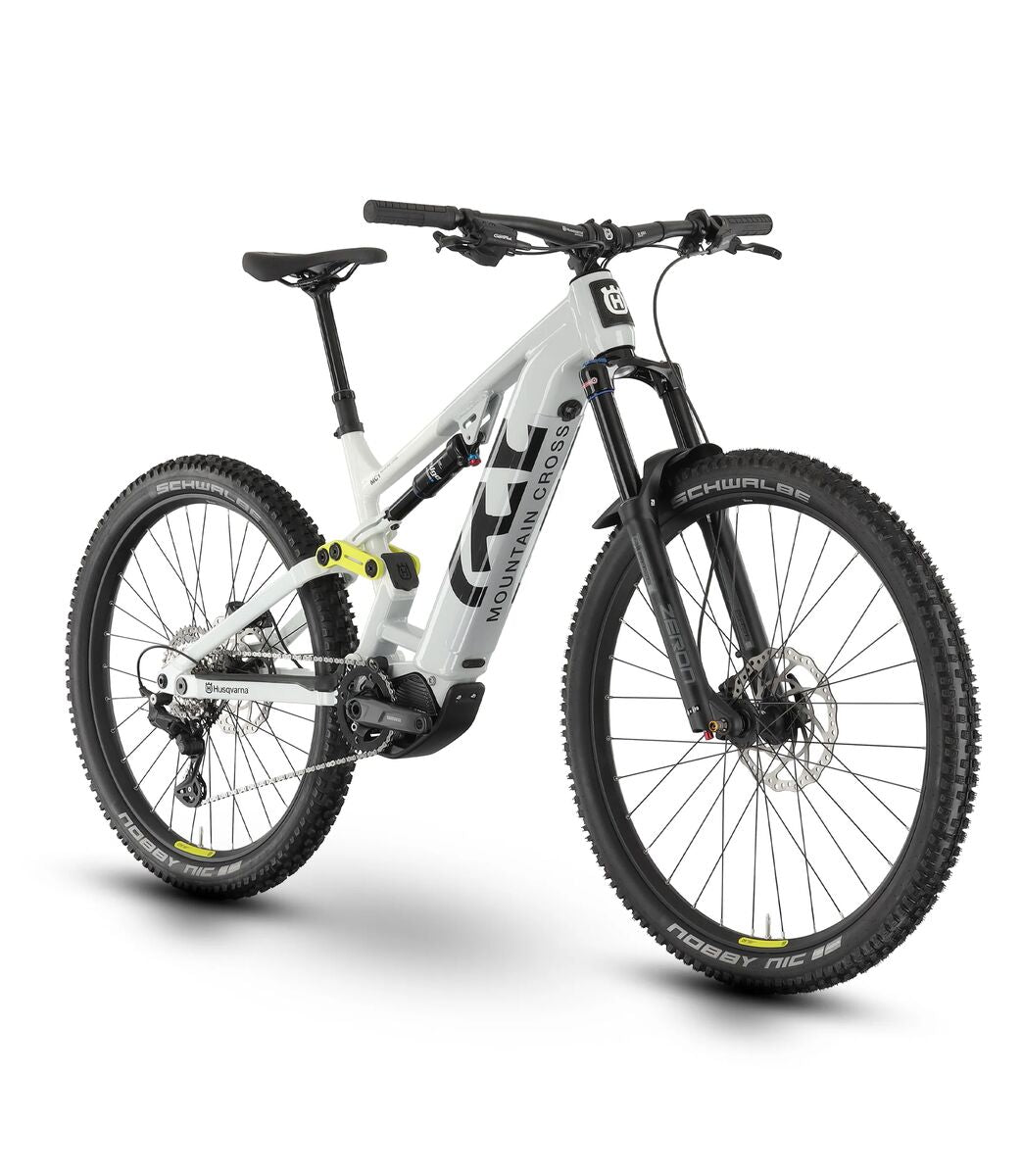

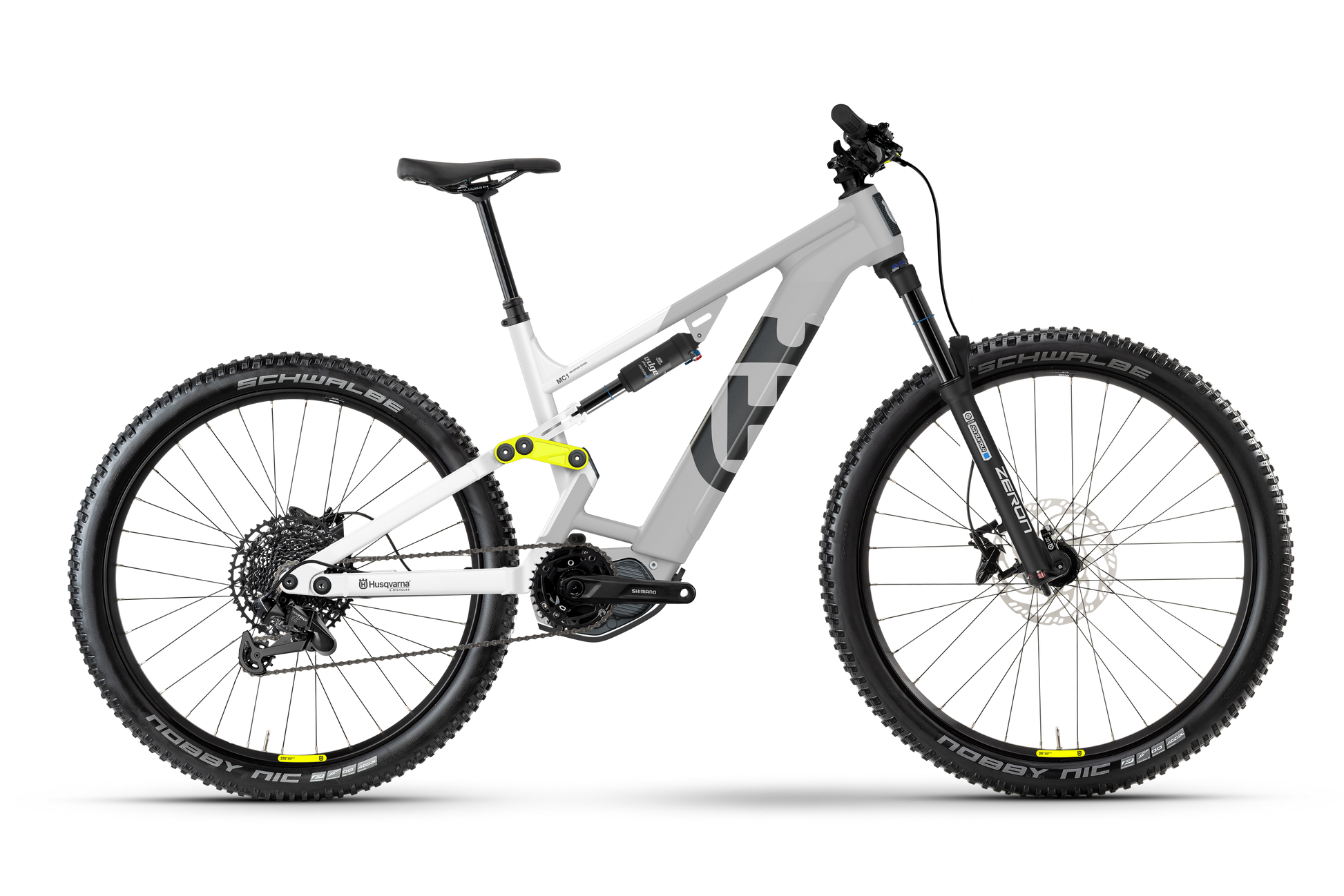

Husqvarna Mountain Cross MC1
Husqvarna Mountain Cross MC1
Couldn't load pickup availability

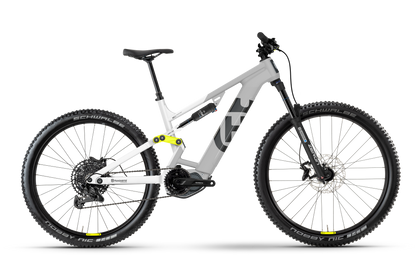

Mountain Cross 1
An all-rounder by design, the MC1 empowers you with the certainty to calmly master mountains, flow down hills, and cruise through scenic tours – thanks to its supportive dynamic chassis, new geometry and motor.
Specification
MOTOR: Shimano EP6, DU-EP600, 250 W, 85 Nm
BATTERY: Core S1+, 630 Wh, 36 V, 17.5 Ah

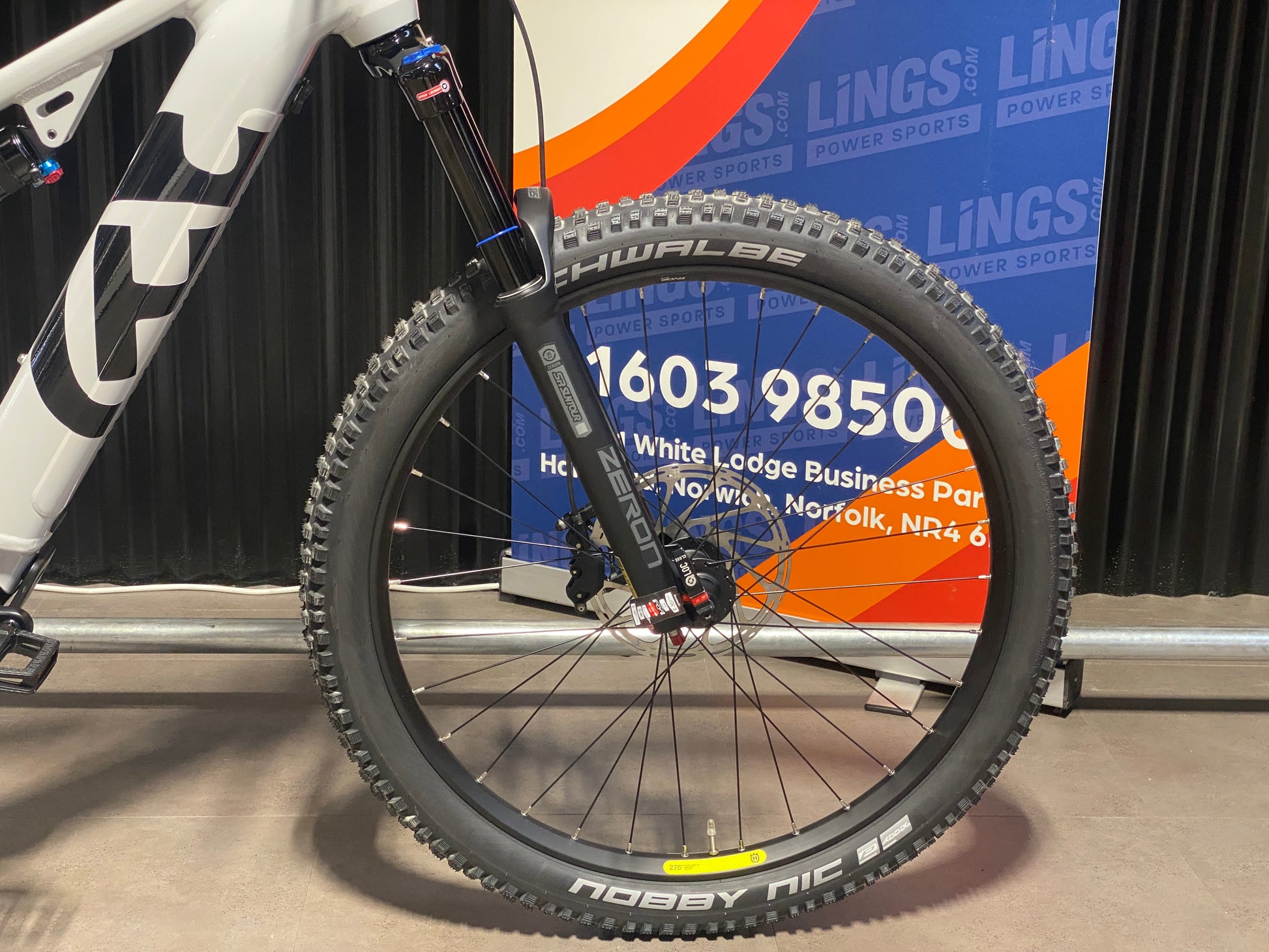

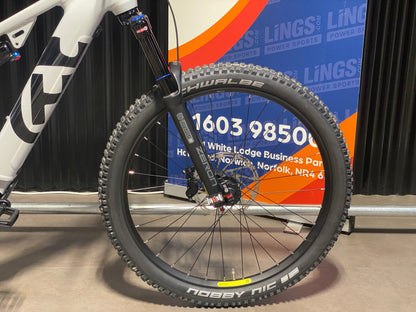

FORK: SR SUNTOUR Zeron35 Boost AIR LOR, Air, 150 mm, tapered

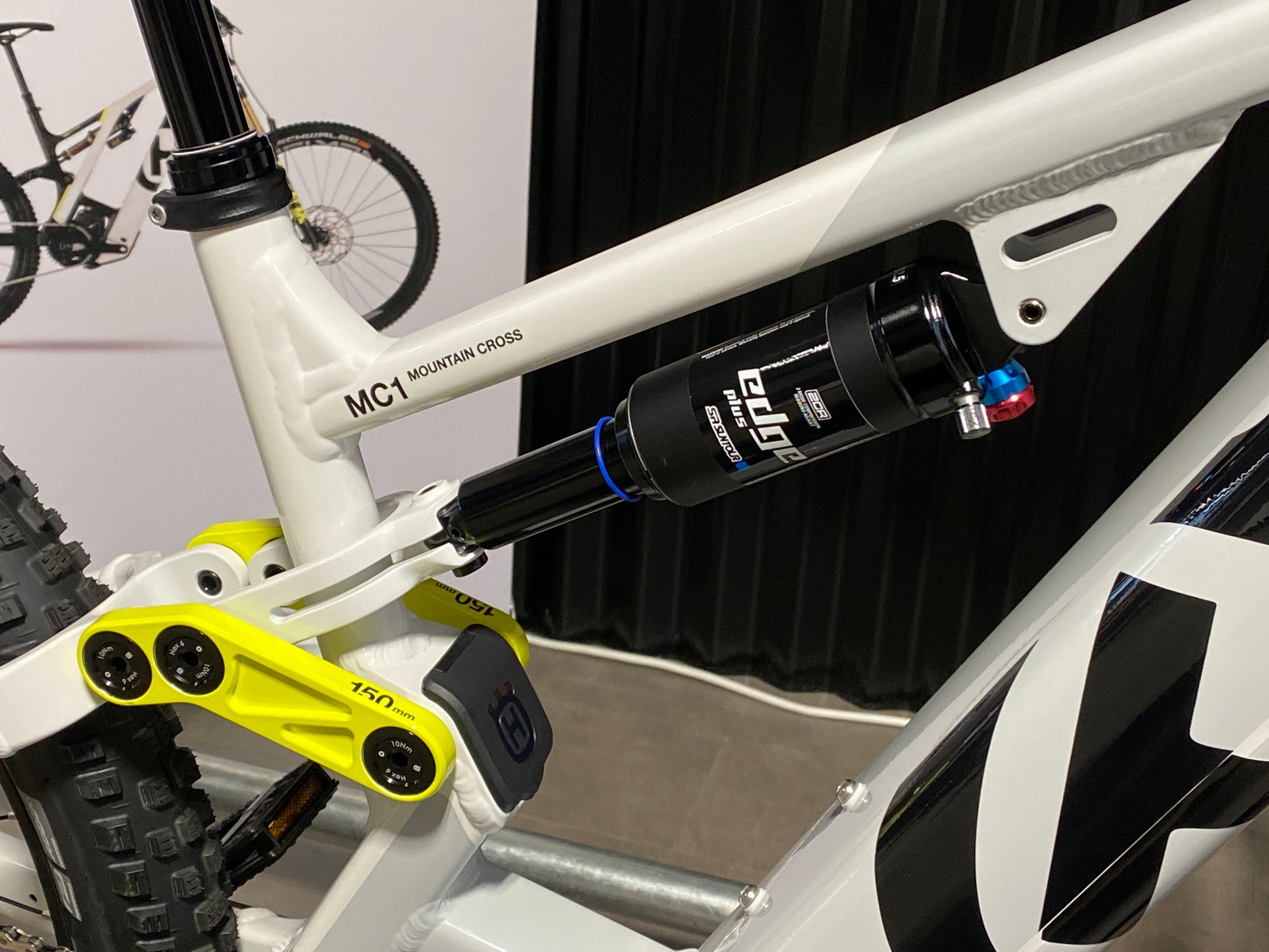

SHOCK: SR SUNTOUR EDGE PLUS 2CR, Air, 230x62.5 mm
WHEELS: Ryde Disc30, Ryde Disc35 (29",27.5")
TYRES: Schwalbe Nobby Nic Performance (29",27.5")

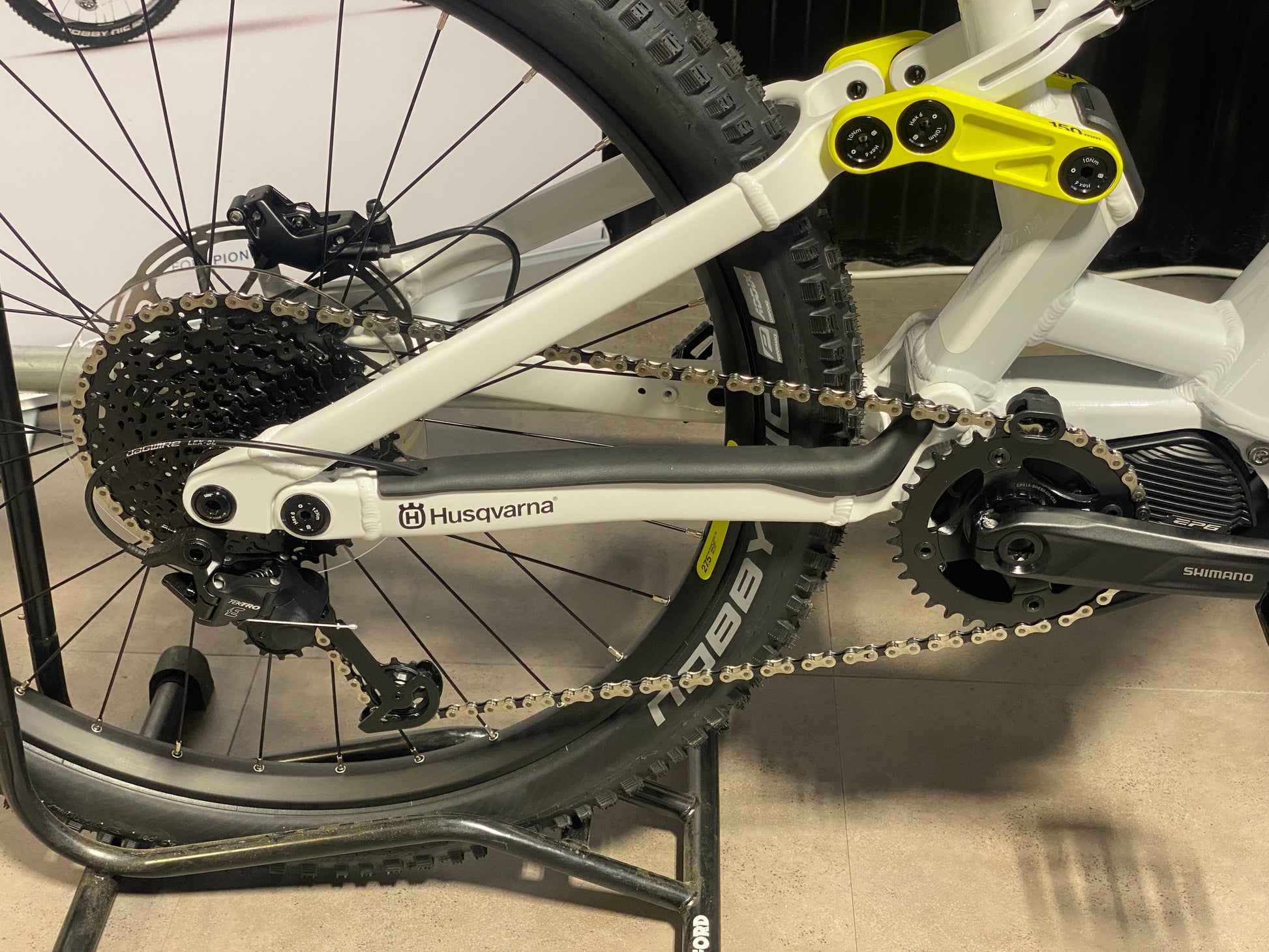

DERAILLEUR: Tektro RD-M350, 9-S
SHIFTER: Tektro SL-M350R
CHAIN: KMC e9S
CASSETTE: Tektro CS-M350, 11-46 T
BRAKES: SRAM DB8, 4-piston
CRANKSET: Shimano FC-EM600, Husqvarna Narrow Wide 34 T

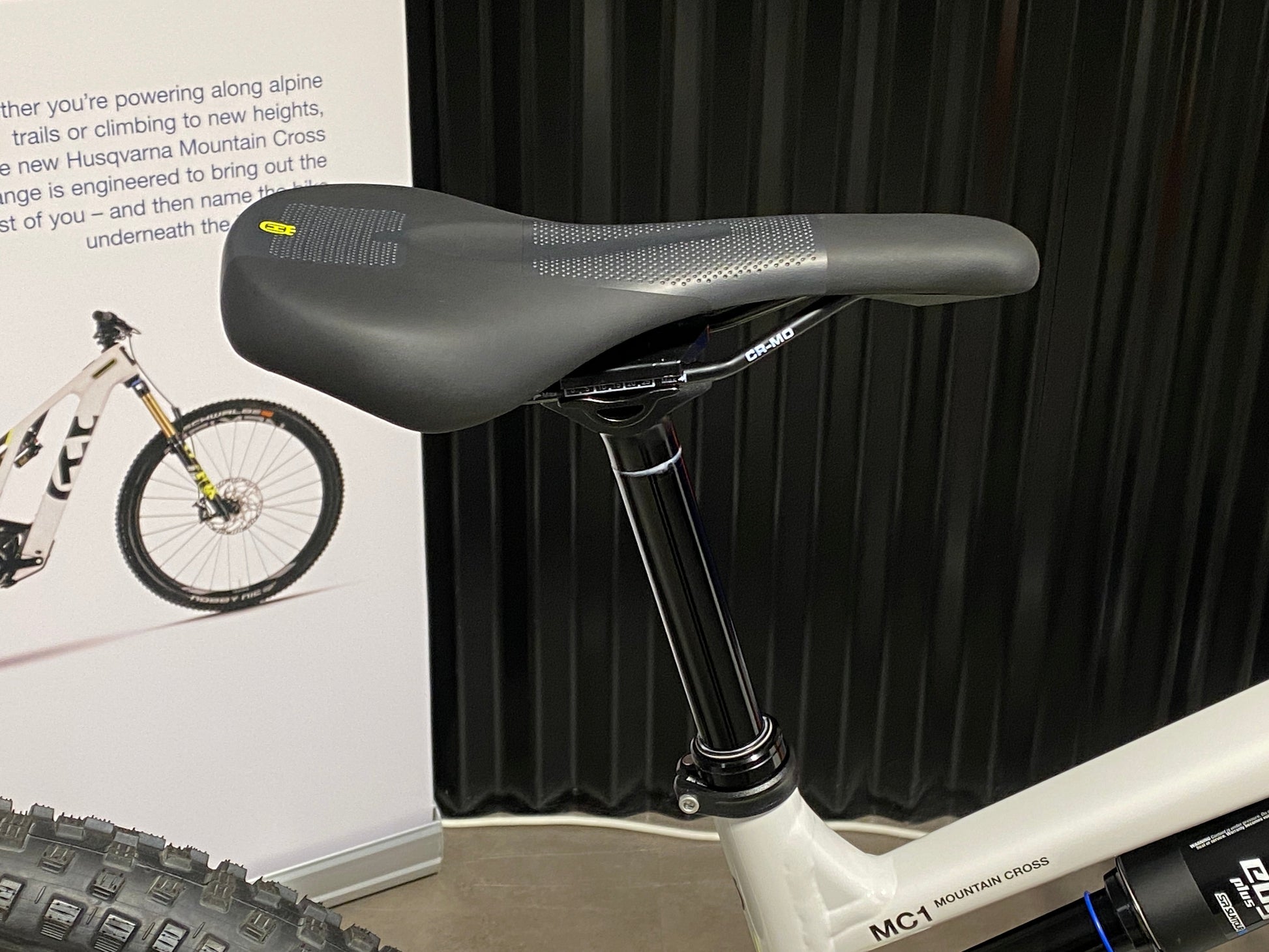

SADDLE: Husqvarna MTB

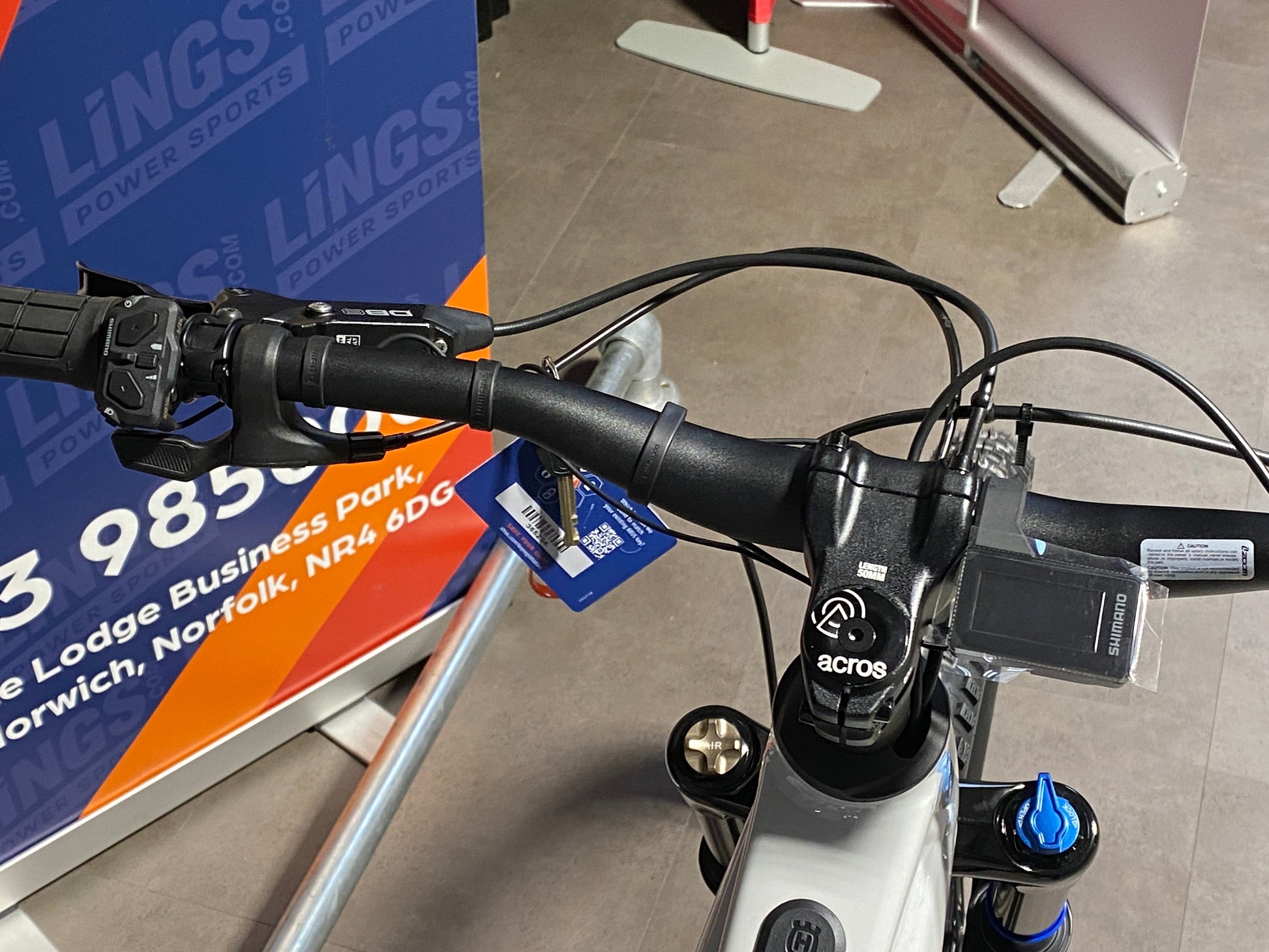

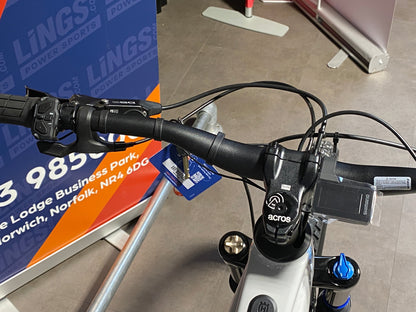

BARS: Husqvarna Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm
STEM: Husqvarna 35, 0 °, Ahead
PEDDLES: Husqvarna, aluminium
GRIPS: Husqvarna MTB, Lock-on grips
SEAT POST: Husqvarna Pro, 31.6 mm, Dropper post
PERMISSIBLE TOTAL VEHICLE WEIGHT: 130KG
GEOMETRIES
|
Bike Size |
Small |
Medium |
Large |
X-Large |
|
Rider height |
5'3" - 5'6" |
5'7" - 5'9" |
5'10" - 6'0" |
6'1" - 6'4" |
| SIZE | S | M | L | XL |
| A - Top Tube Length | 567mm | 596mm | 626mm | 655mm |
| B - Seat Tube Length | 410mm | 435mm | 460mm | 485mm |
| C - Seat Tube Angle | 77.1° | 77° | 76.9° | 76.8° |
| D - Head Tube Length | 130mm | 115mm | 130mm | 145mm |
| E - Steering Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| F - Chain Stay Length | 445mm | 445mm | 445mm | 445mm |
| G - Wheel Base | 1184mm | 1216mm | 1247mm | 1279mm |
| I - BB-Drop | 18mm | 18mm | 18mm | 18mm |
| K - Stack | 619mm | 633mm | 646mm | 660mm |
| L - Reach | 425mm | 450mm | 475mm | 500mm |
