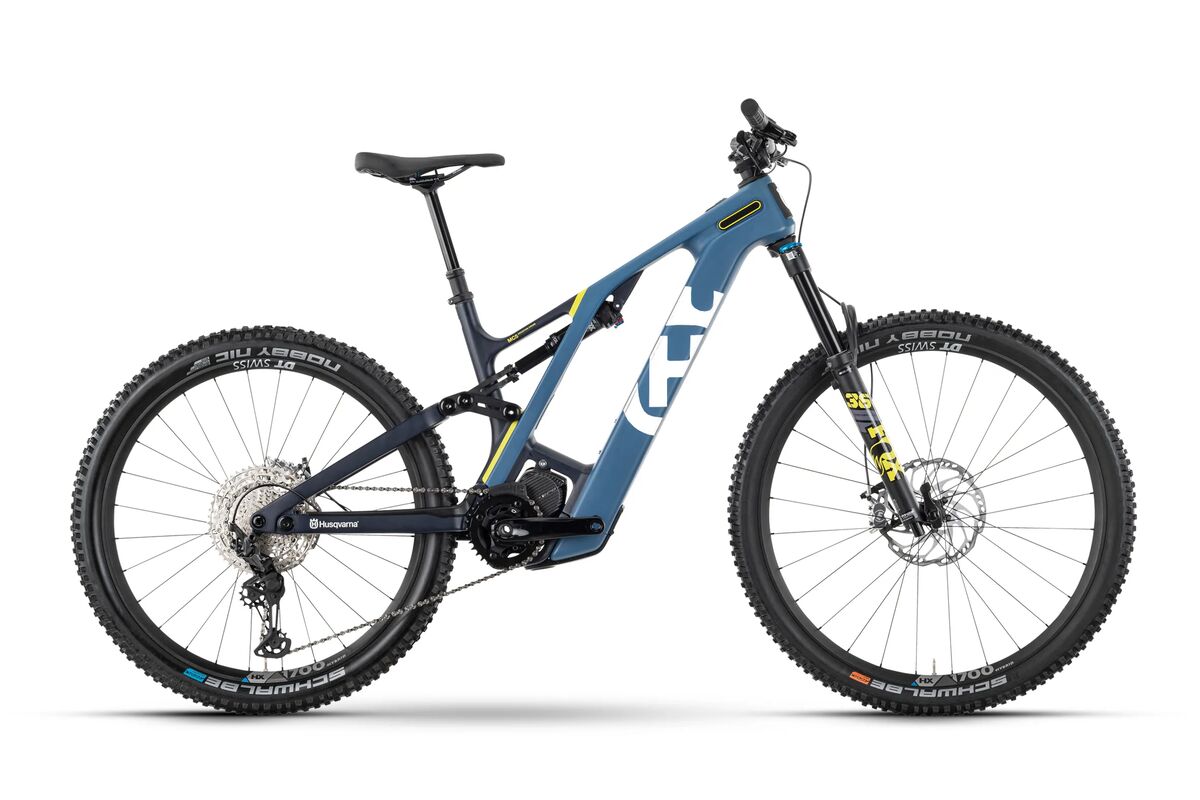

Husqvarna Mountain Cross MC5
Husqvarna Mountain Cross MC5
Couldn't load pickup availability

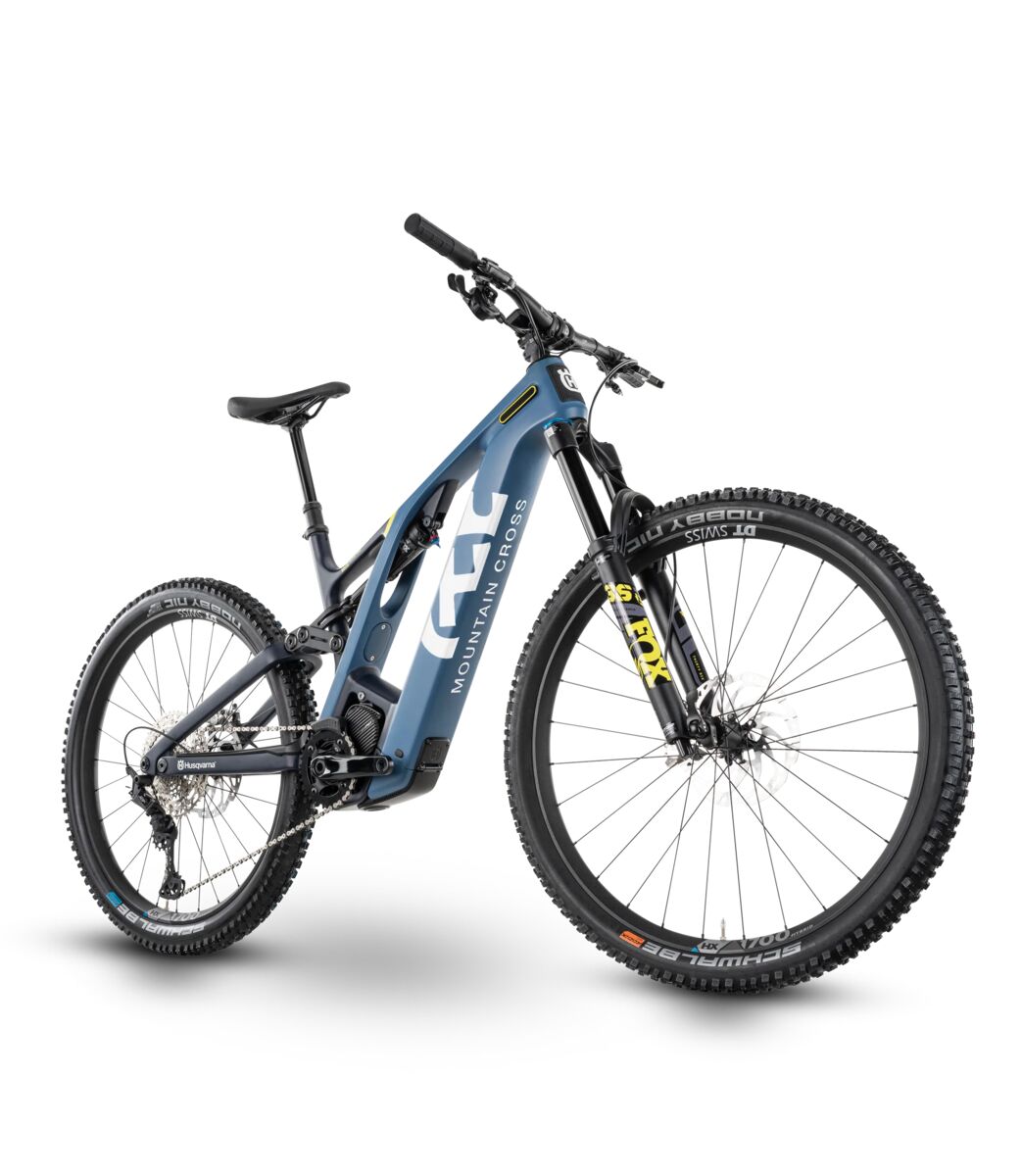

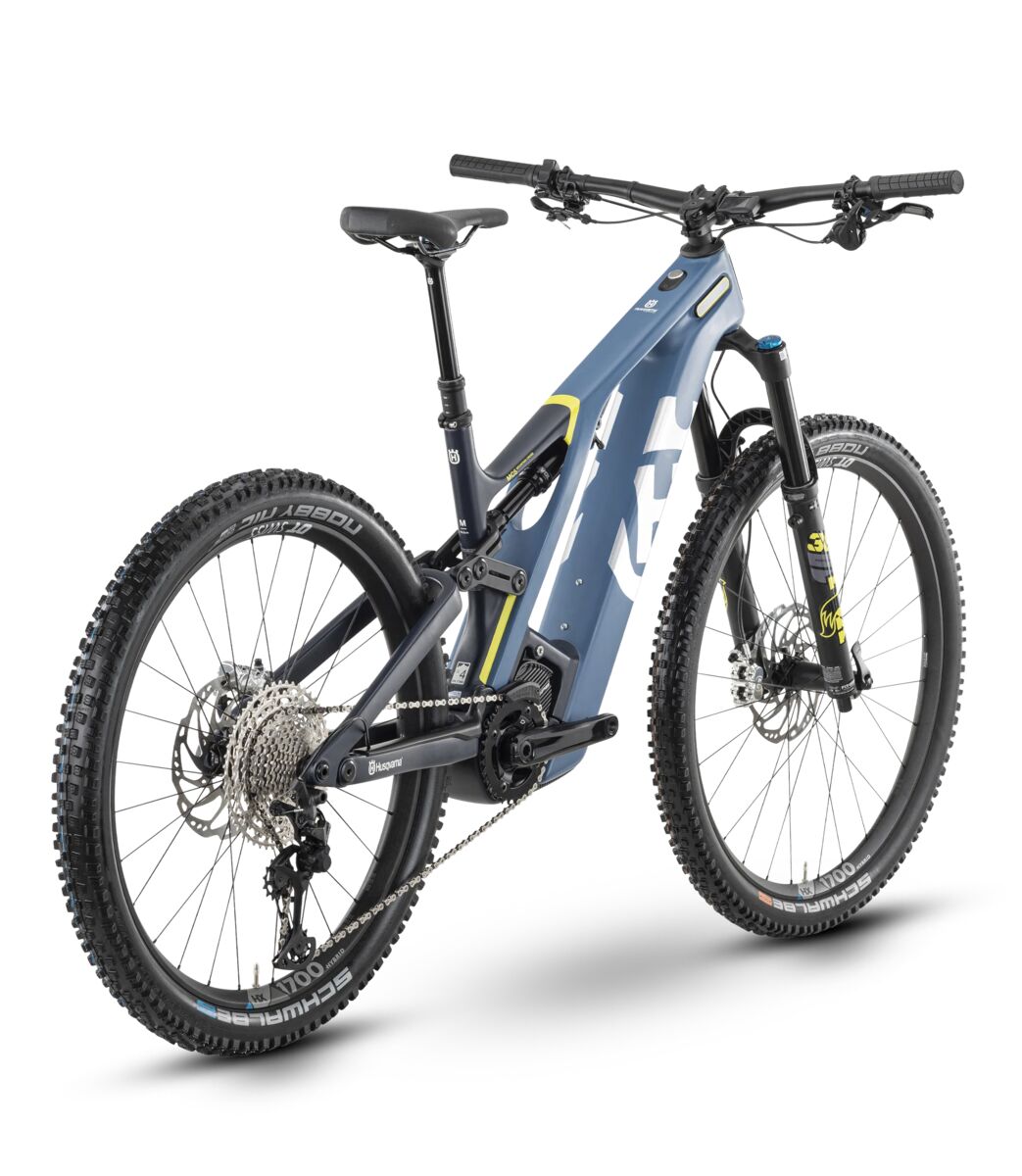

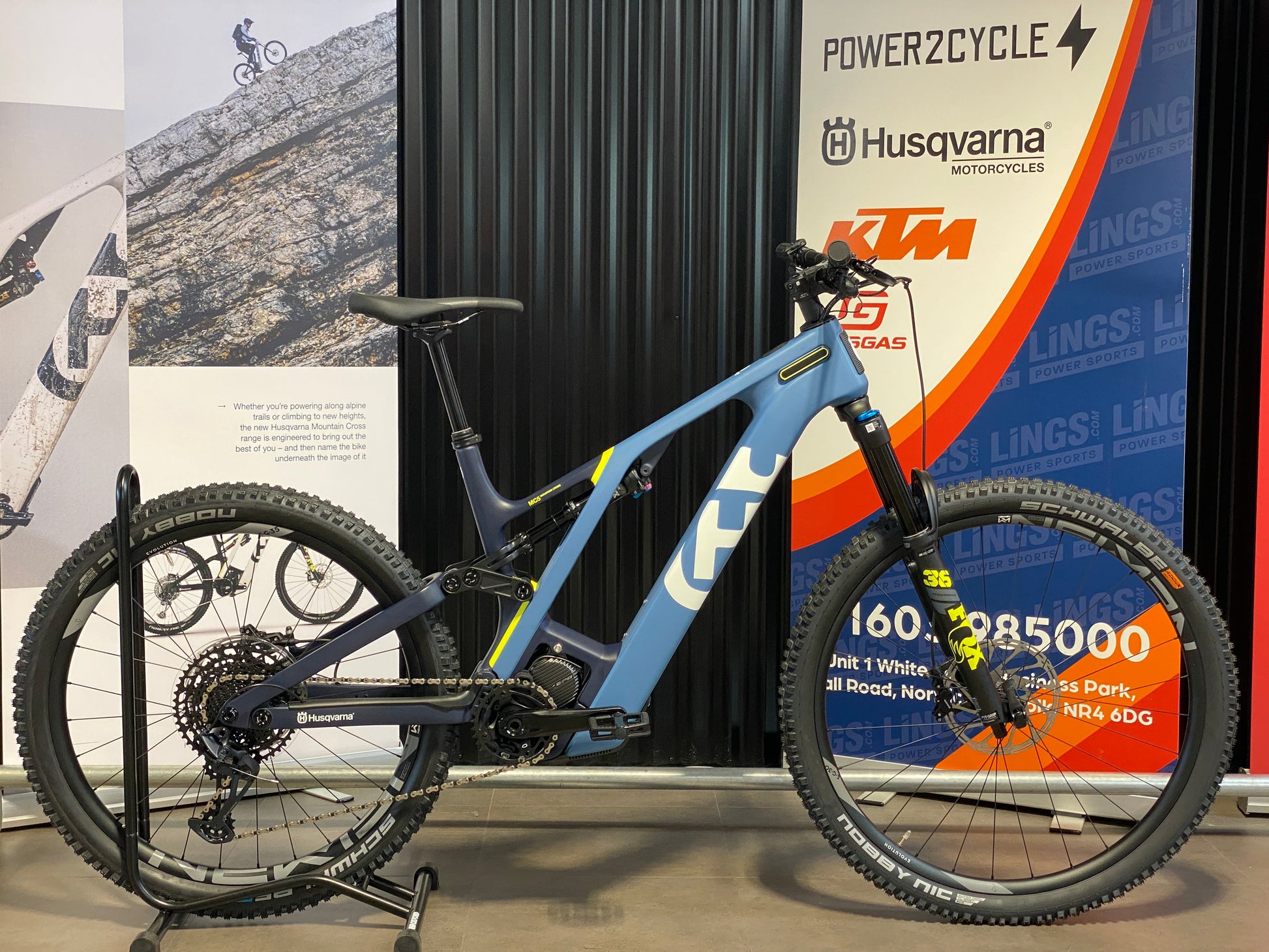

Mountain Cross 5
Indulge in riding mountain passes and high alpine terrain on the MC5. The carbon frame delivers impeccable support on the trails, both uphill and down. Together, the 150mm suspension travel, mixed wheel sizes, Shimano EP801 motor and Core S3+ 720Wh battery make it the ideal bike to pursue the unknown.
Specification
MOTOR: Shimano EP8, DU-EP801, 250 W, 85 Nm
BATTERY: Core S3+, 720 Wh, 36 V

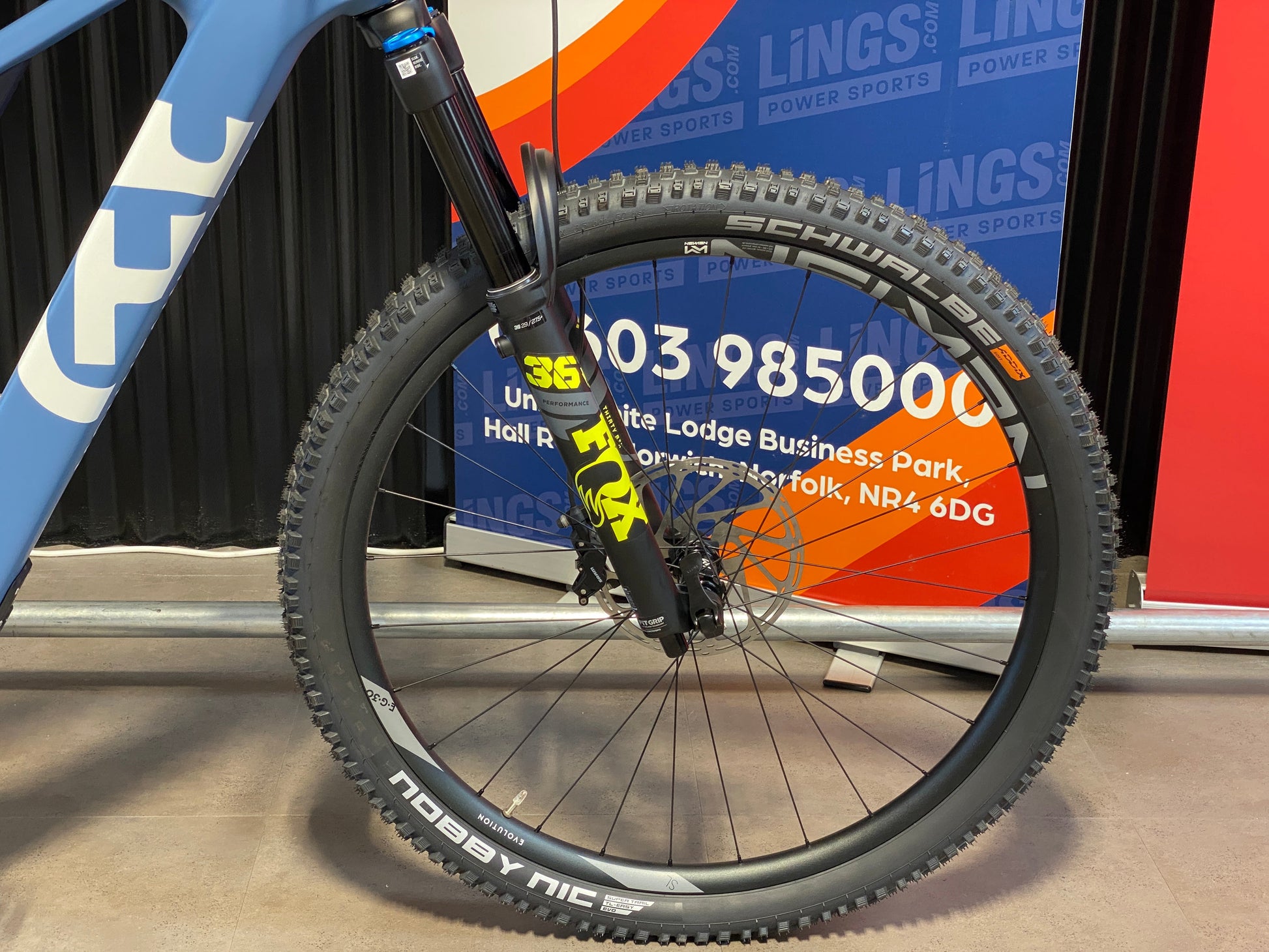

FORK: Fox Float 36 Performance, Air, 150 mm, tapered

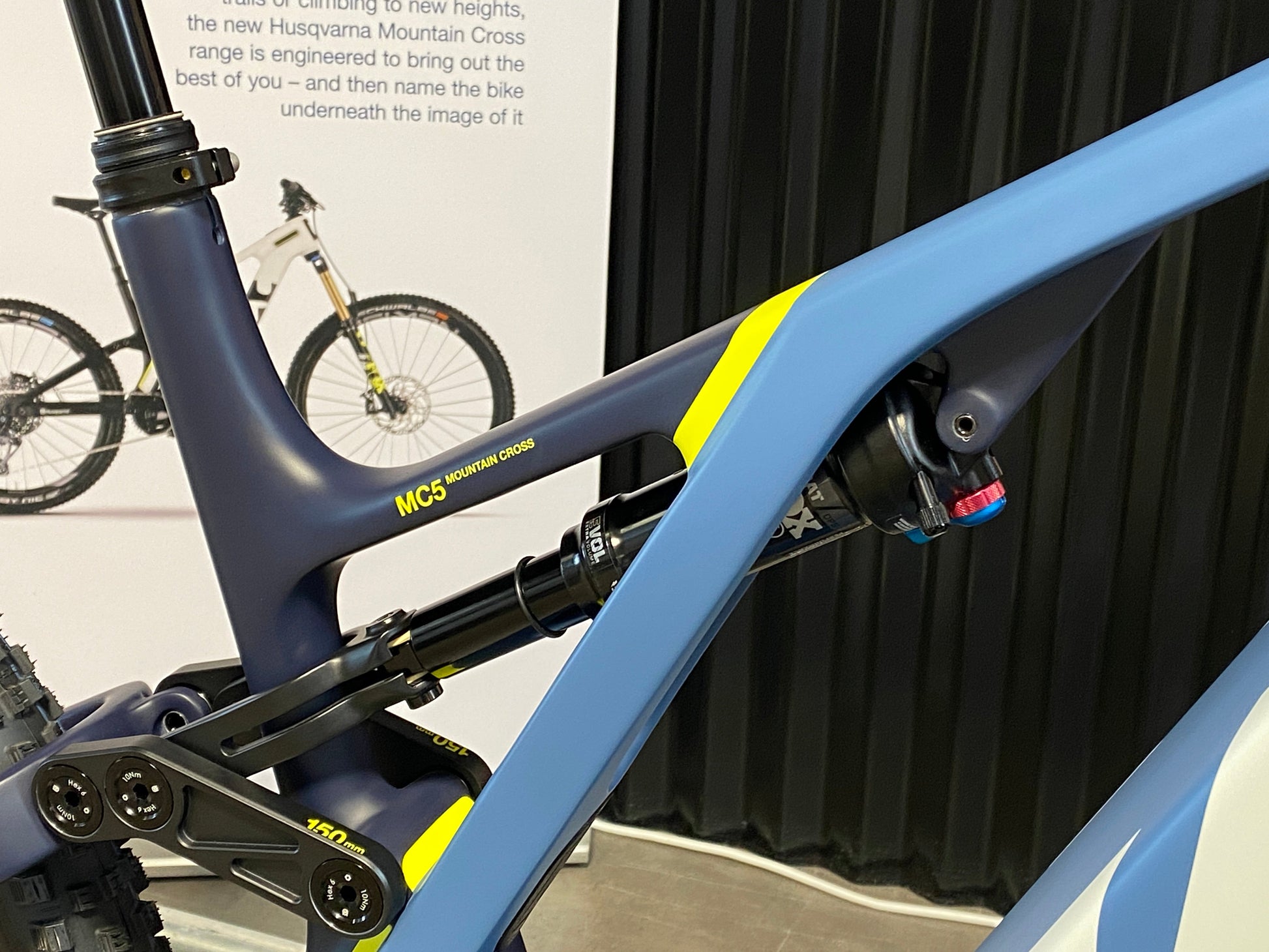

SHOCK: Fox Float DPS Performance, Air, 230x62.5 mm
WHEELS: NEWMEN Evolution SL E.G (29", 27.5")
TYRES: Schwalbe Nobby Nic 2.4 (29"), Nobby Nic 2.6 (27.5")

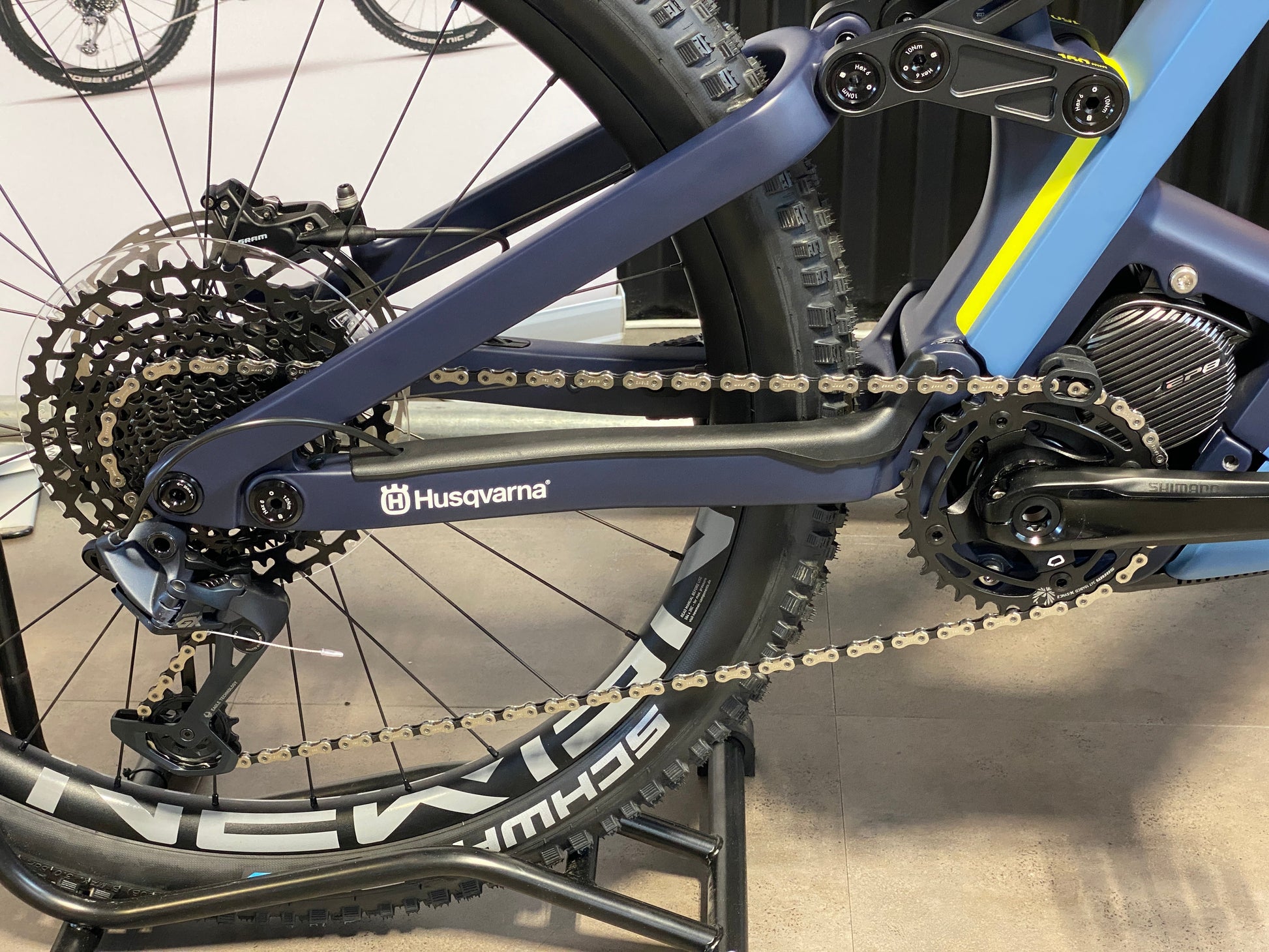

DERAILLEUR: SRAM GX Eagle, Single Click
SHIFTER: SRAM GX Eagle, 12-S
CHAIN: SRAM GX Eagle
CASSETTE: SRAM PG-1230, 11-50 T
BRAKES: SRAM G2 R, 4-piston
CRANKSET: Shimano FC-EM900, SRAM X-Sync Eagle 34 T

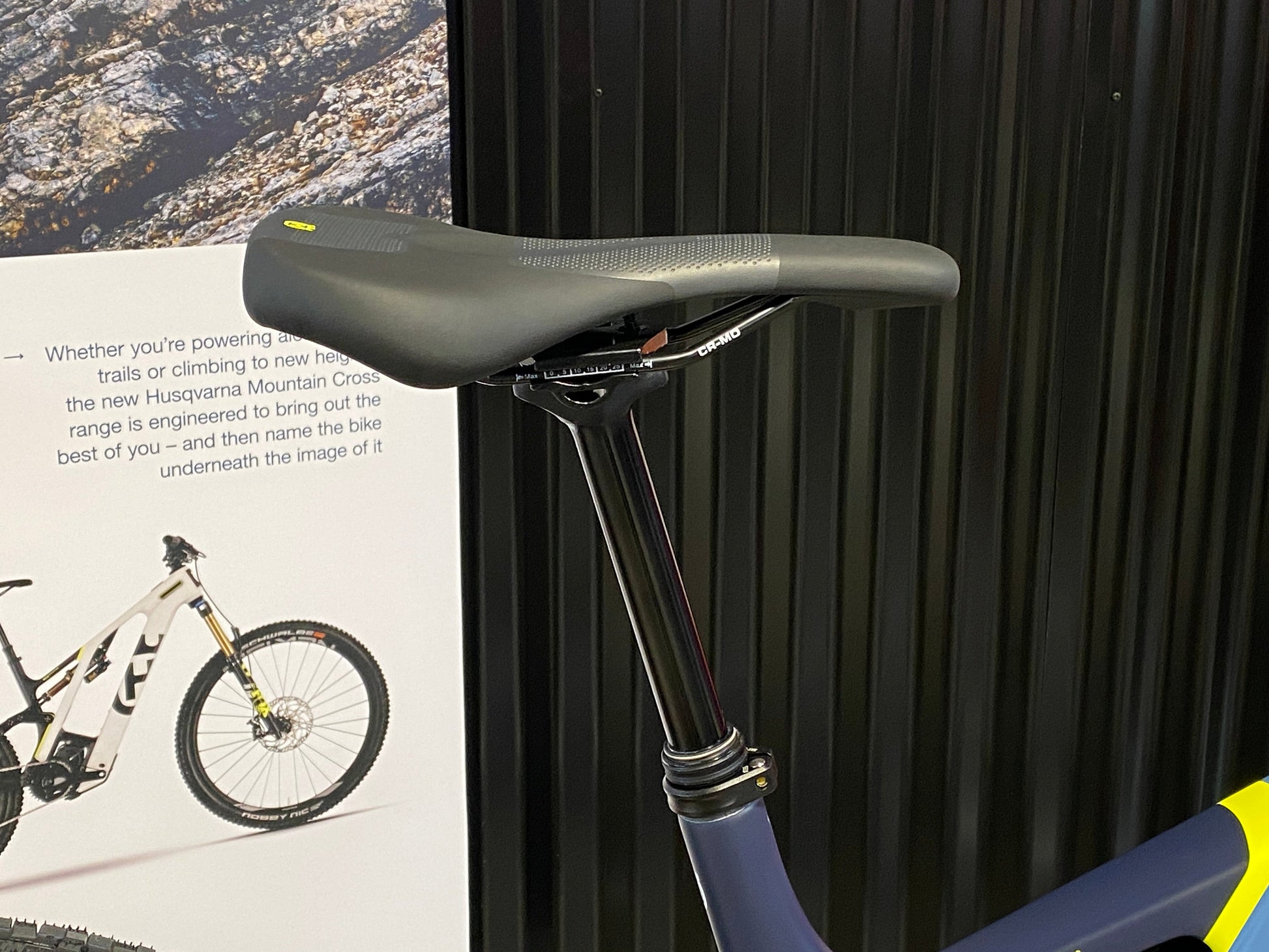

SADDLE: Husqvarna MTB

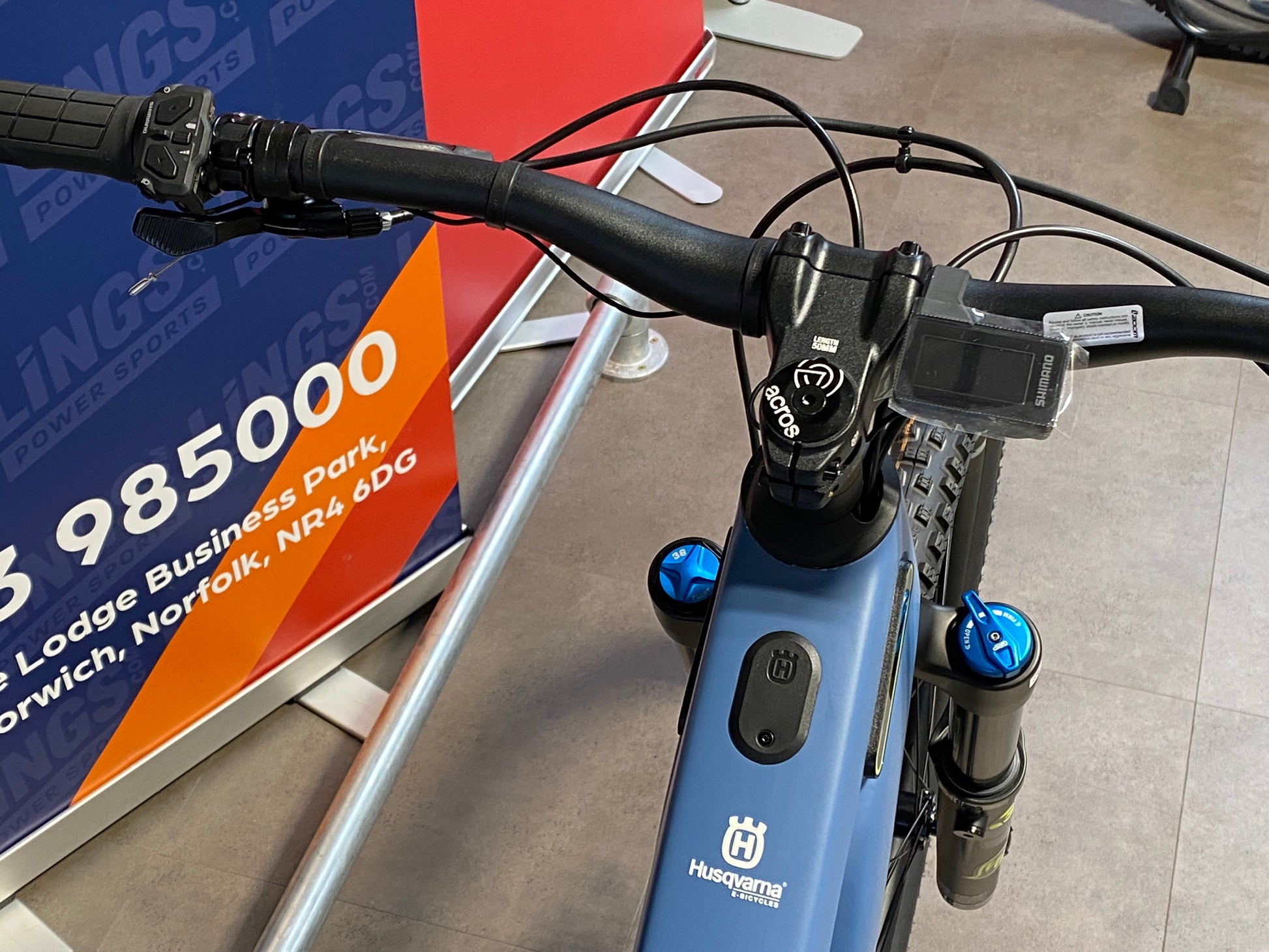

BARS: Husqvarna Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm
STEM: Husqvarna 35, 0 °, Ahead
PEDDLES: Husqvarna, aluminium
GRIPS: Husqvarna MTB, Lock-on grips
SEAT POST: Husqvarna Pro, 31.6 mm, Dropper post
PERMISSIBLE TOTAL VEHICLE WEIGHT: 130KG
GEOMETRIES
|
Bike Size |
Small |
Medium |
Large |
X-Large |
|
Rider height |
5'3" - 5'6" |
5'7" - 5'9" |
5'10" - 6'0" |
6'1" - 6'4" |
| SIZE | S | M | L | XL |
| A - Top Tube Length | 567mm | 596mm | 626mm | 655mm |
| B - Seat Tube Length | 410mm | 435mm | 460mm | 485mm |
| C - Seat Tube Angle | 77.1° | 77° | 76.9° | 76.8° |
| D - Head Tube Length | 130mm | 115mm | 130mm | 145mm |
| E - Steering Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| F - Chain Stay Length | 445mm | 445mm | 445mm | 445mm |
| G - Wheel Base | 1184mm | 1216mm | 1247mm | 1279mm |
| I - BB-Drop | 18mm | 18mm | 18mm | 18mm |
| K - Stack | 619mm | 633mm | 646mm | 660mm |
| L - Reach | 425mm | 450mm | 475mm | 500mm |
