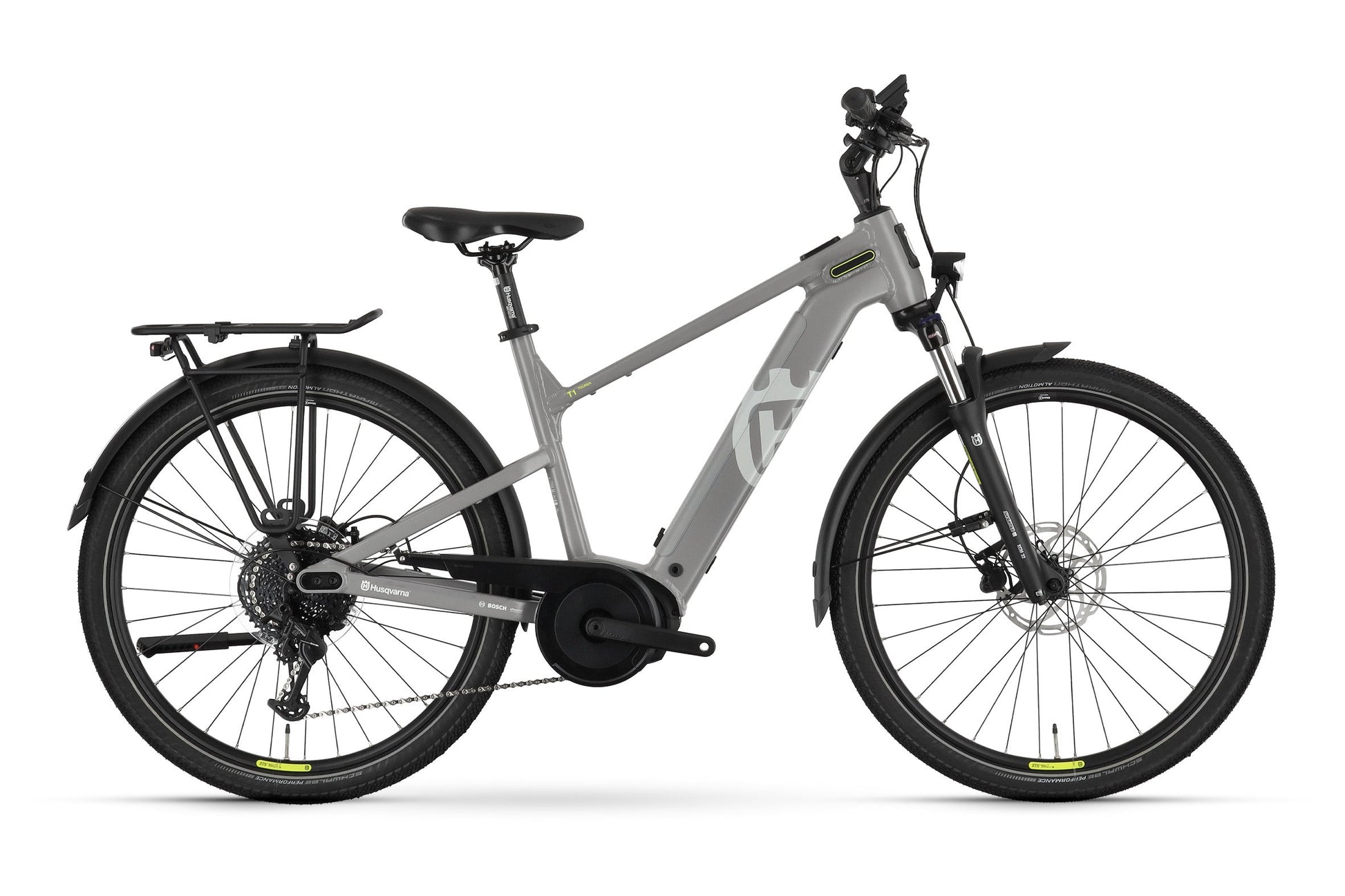

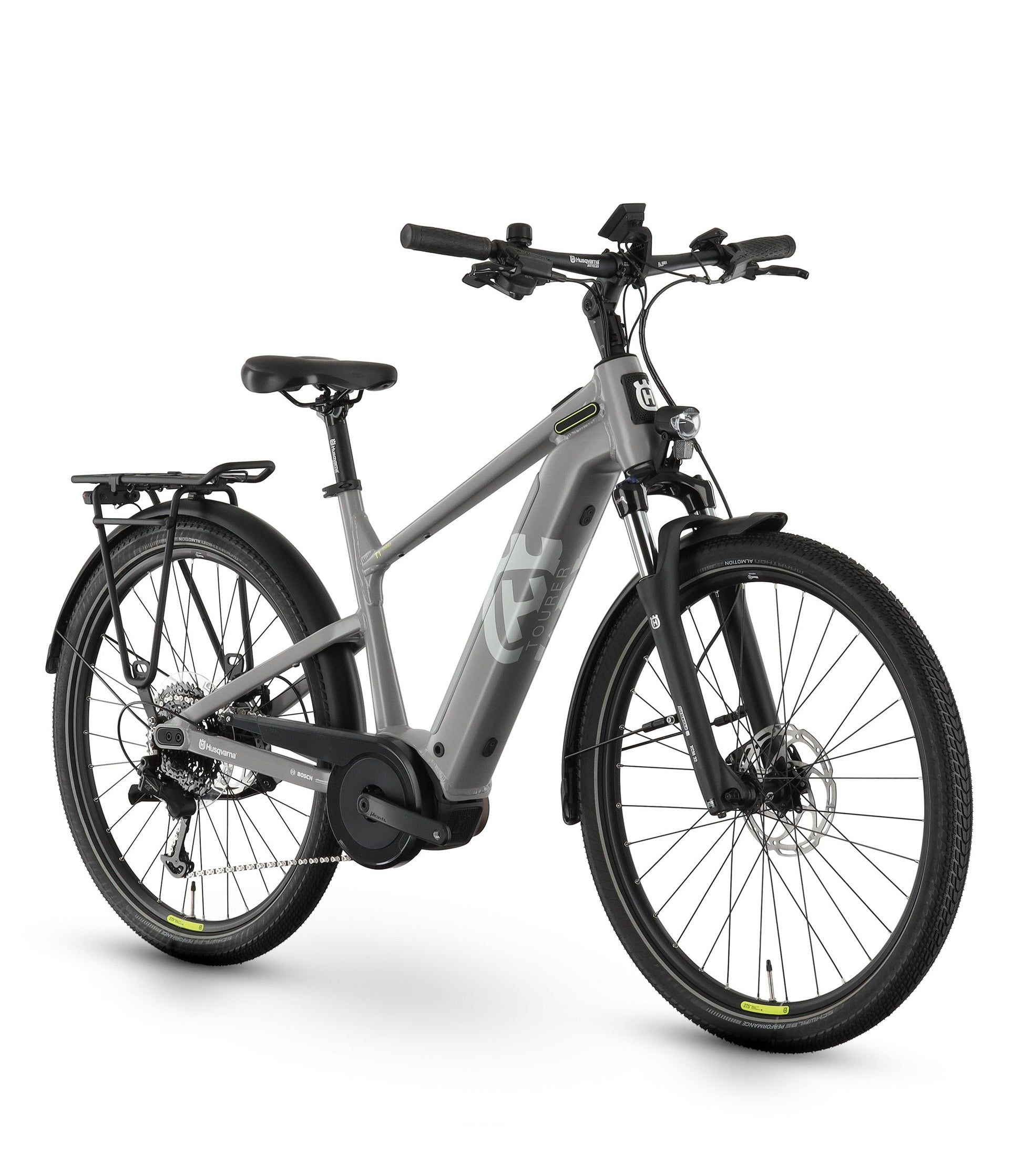

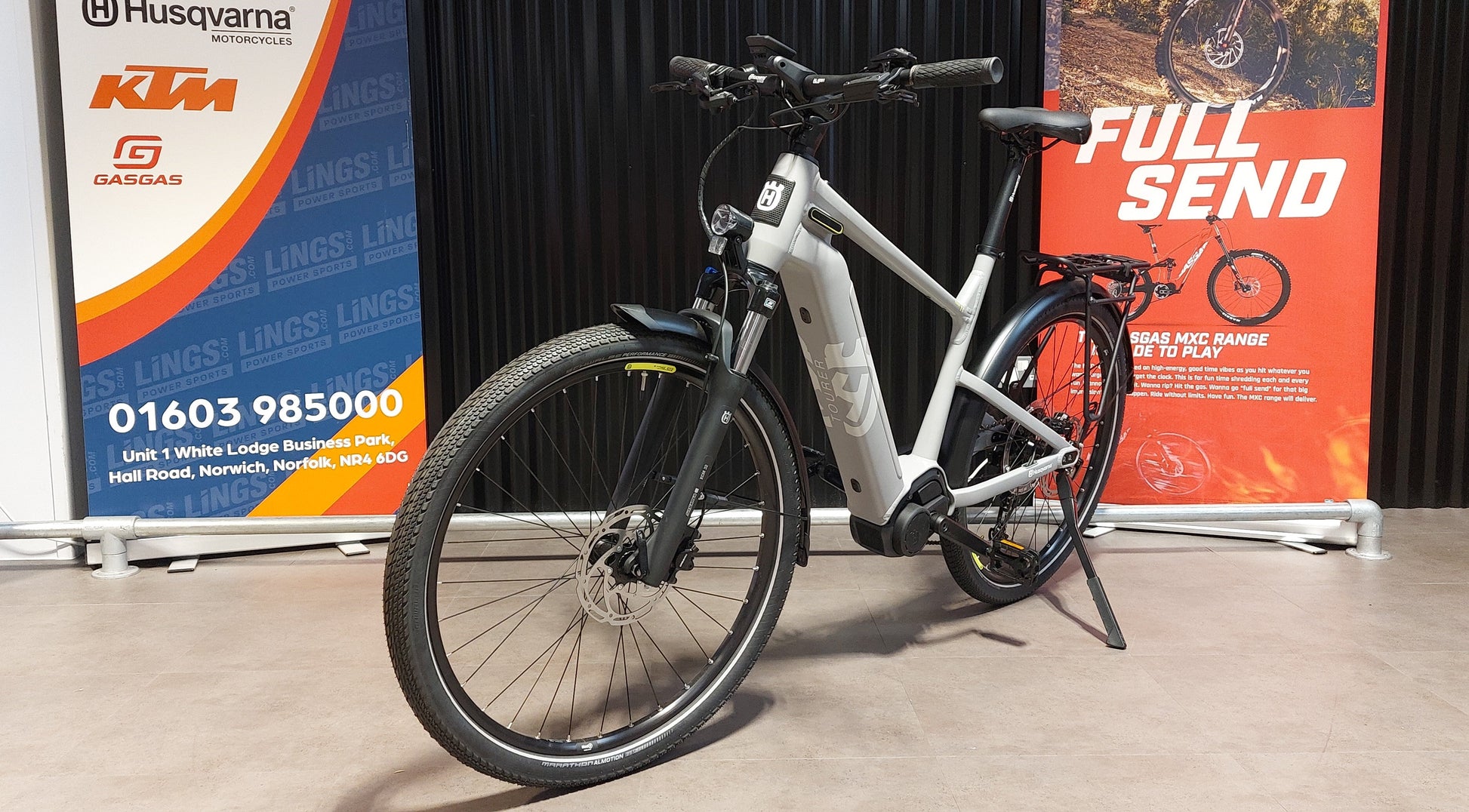

Husqvarna Tourer T1 High Cross Bar
Husqvarna Tourer T1 High Cross Bar
Couldn't load pickup availability
Tourer T1 Low Cross Bar
Switch from city streets to rural escapism with ease. Get away from the hustle and bustle and relax in the tranquillity of the countryside. Explore meandering paths, enjoy riverside trails, but always stop for coffee. Sturdy and dependable for every eventuality, the Tourer is your gateway to the downtime you crave.
Specification

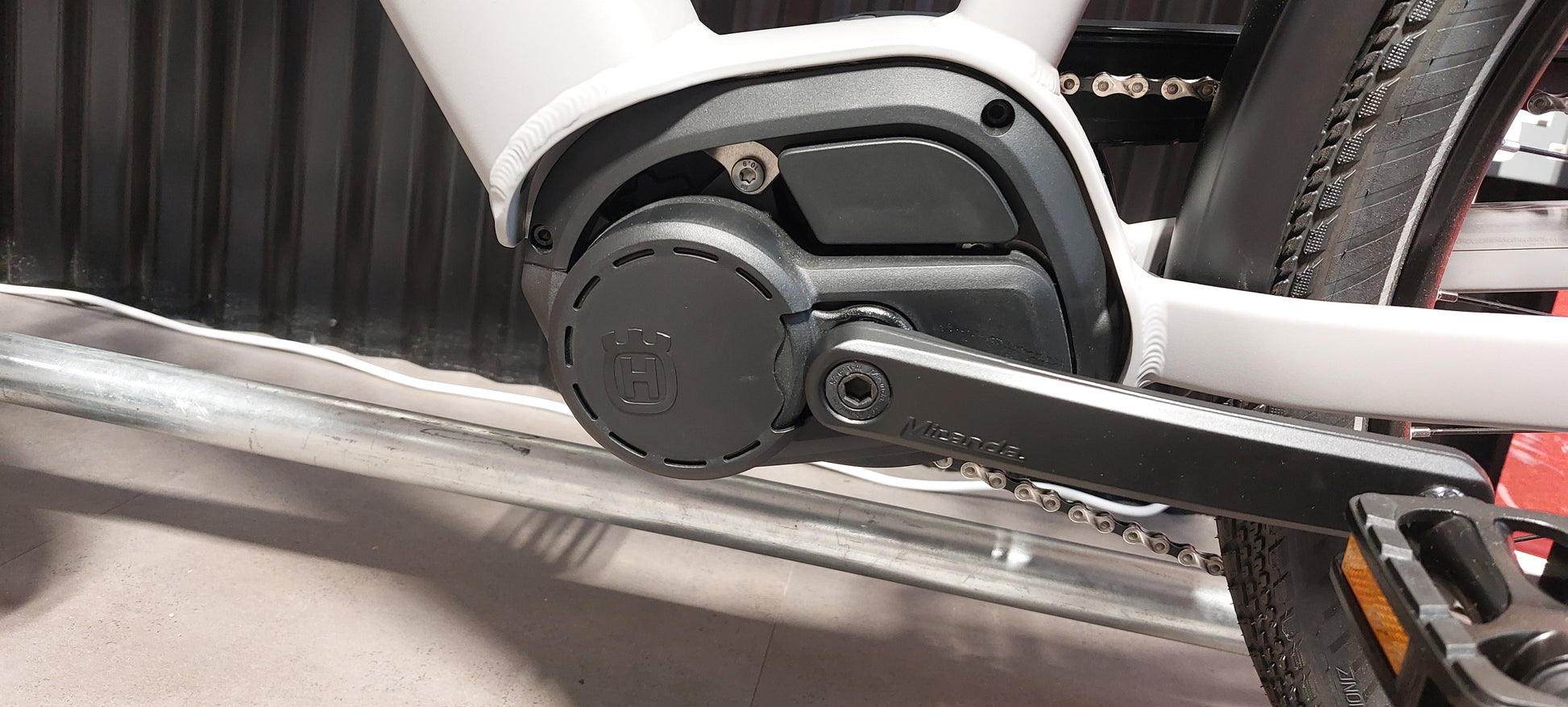

MOTOR: Bosch Performance Line, 250 W, 75 Nm
BATTERY: Bosch PowerTube, 500 Wh, 36 V

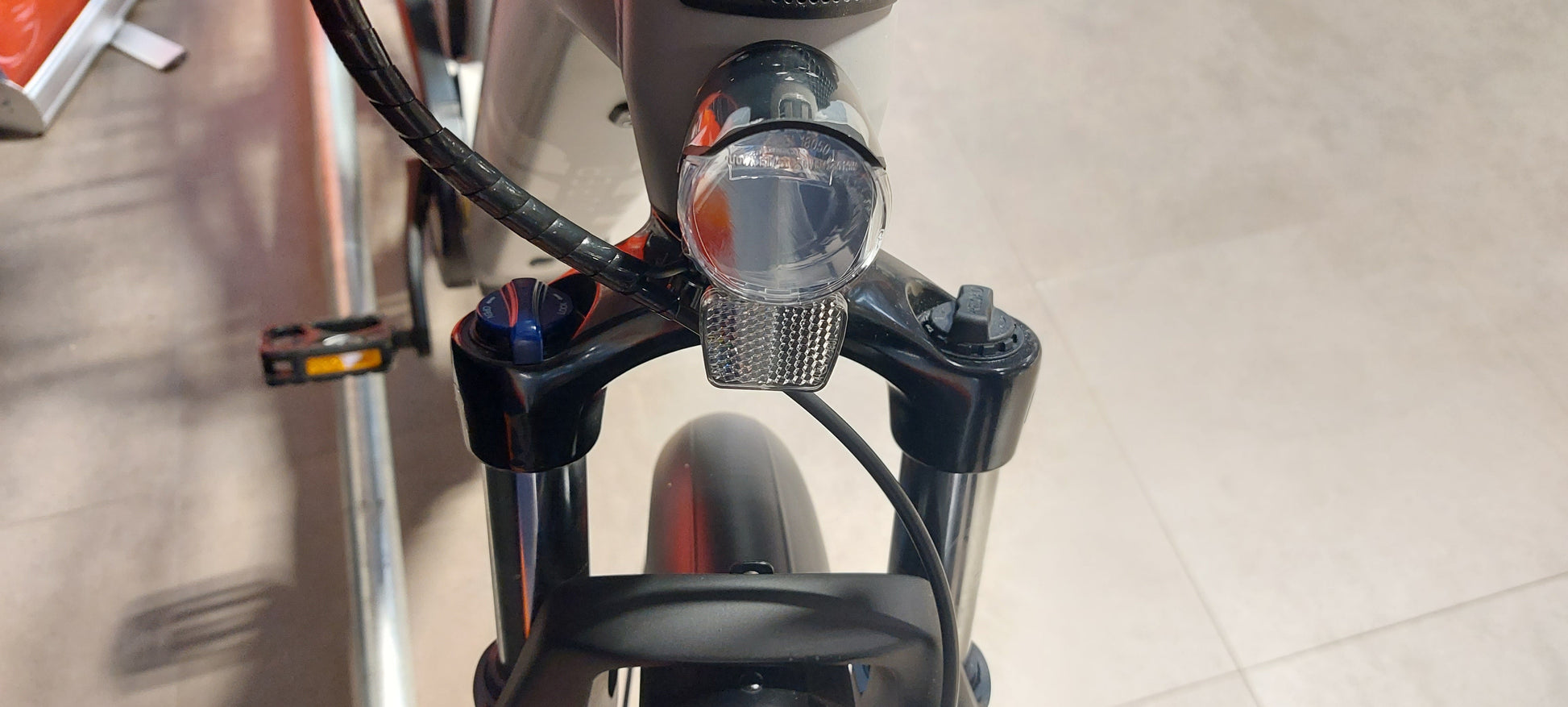

FORK: SR SUNTOUR XCM32 ATB DS LO, Coil, 80 mm
WHEELS: Mach 1 630E
TYRES: Schwalbe Smart Sam, Active, Reflex, 27.5x2.1
DERAILLEUR: Tektro RD-T350, 9-S
SHIFTER: Tektro SL-M350R
CHAIN: KMC e9S
CASSETTE: Tektro CS-M350, 11-46 T

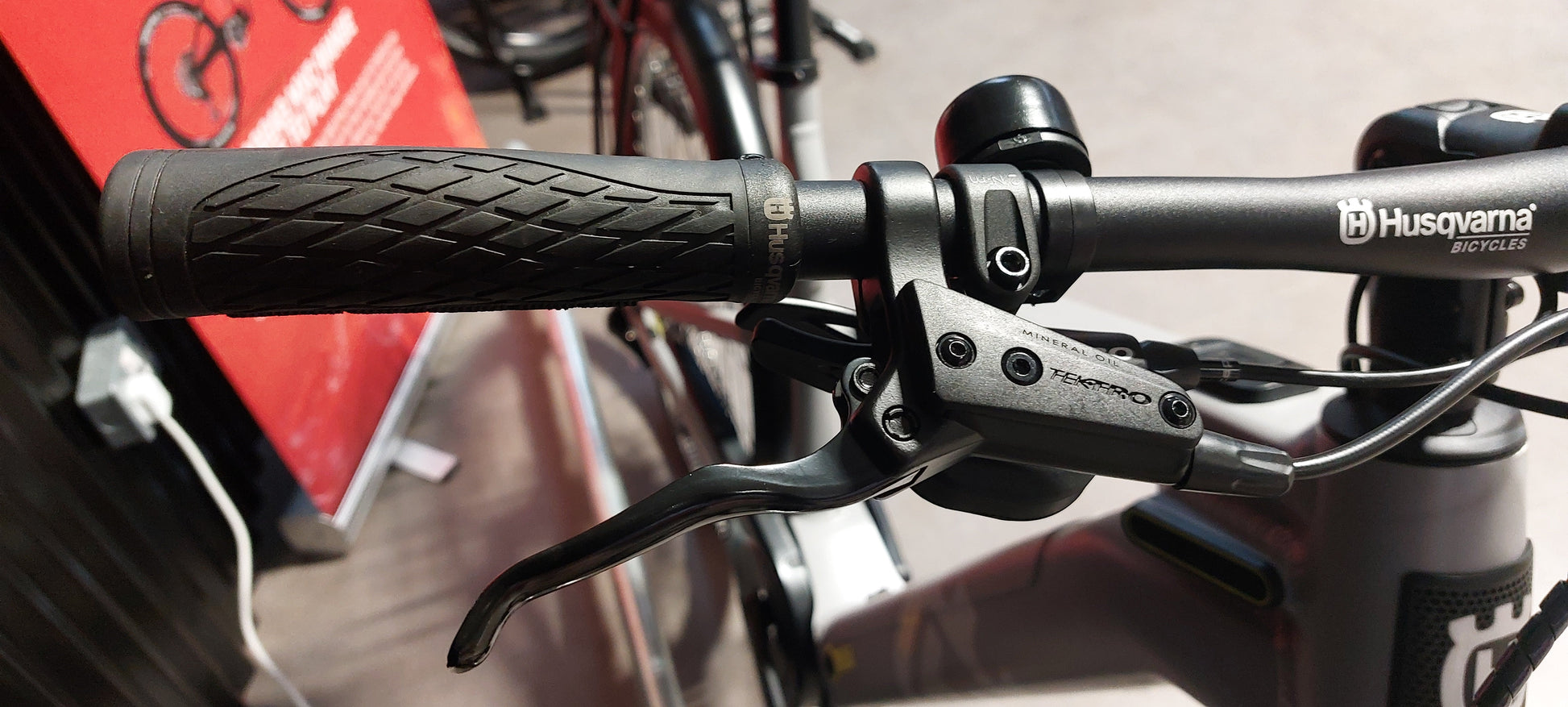

BRAKES: Tektro HD-T280, 2-piston, Hydraulic disc brake
CRANKSET: Miranda 38 T

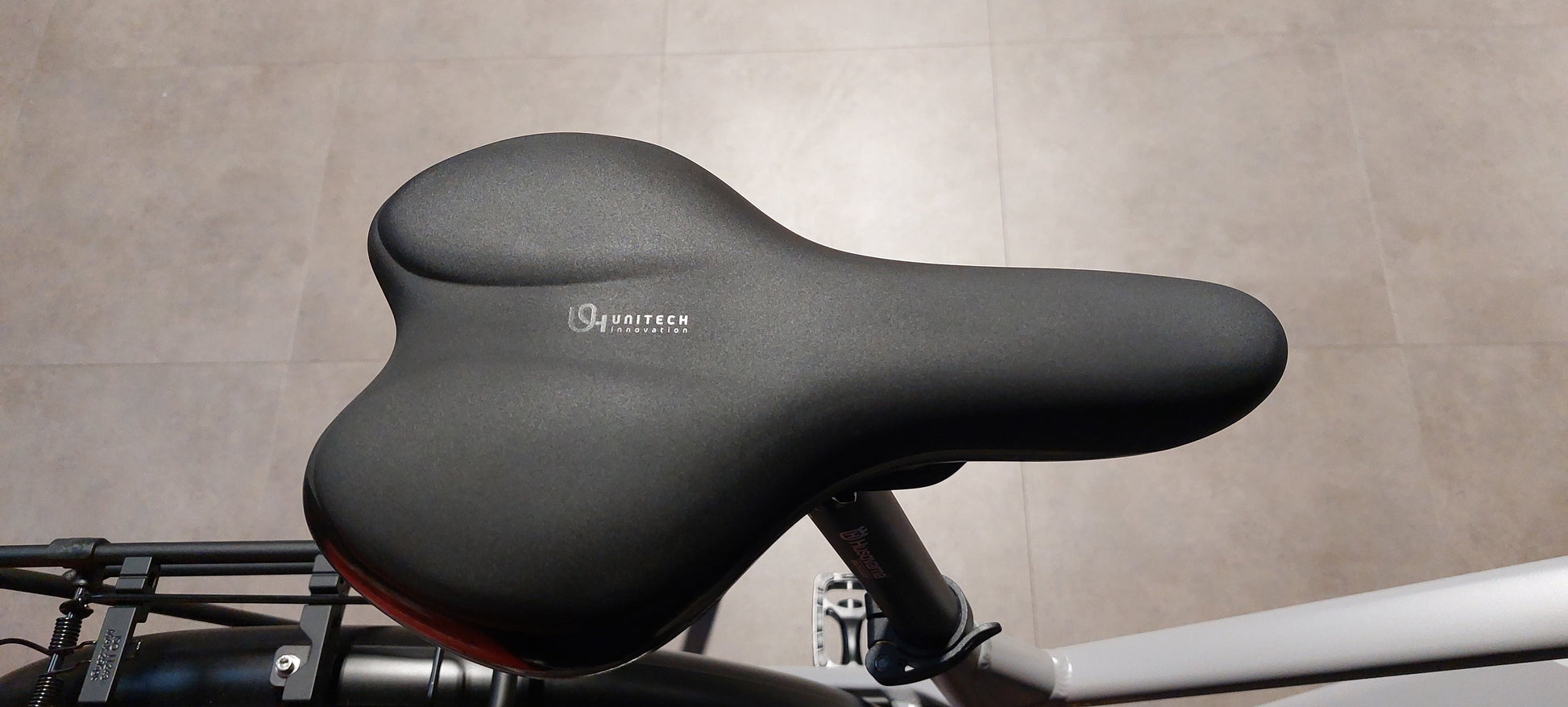

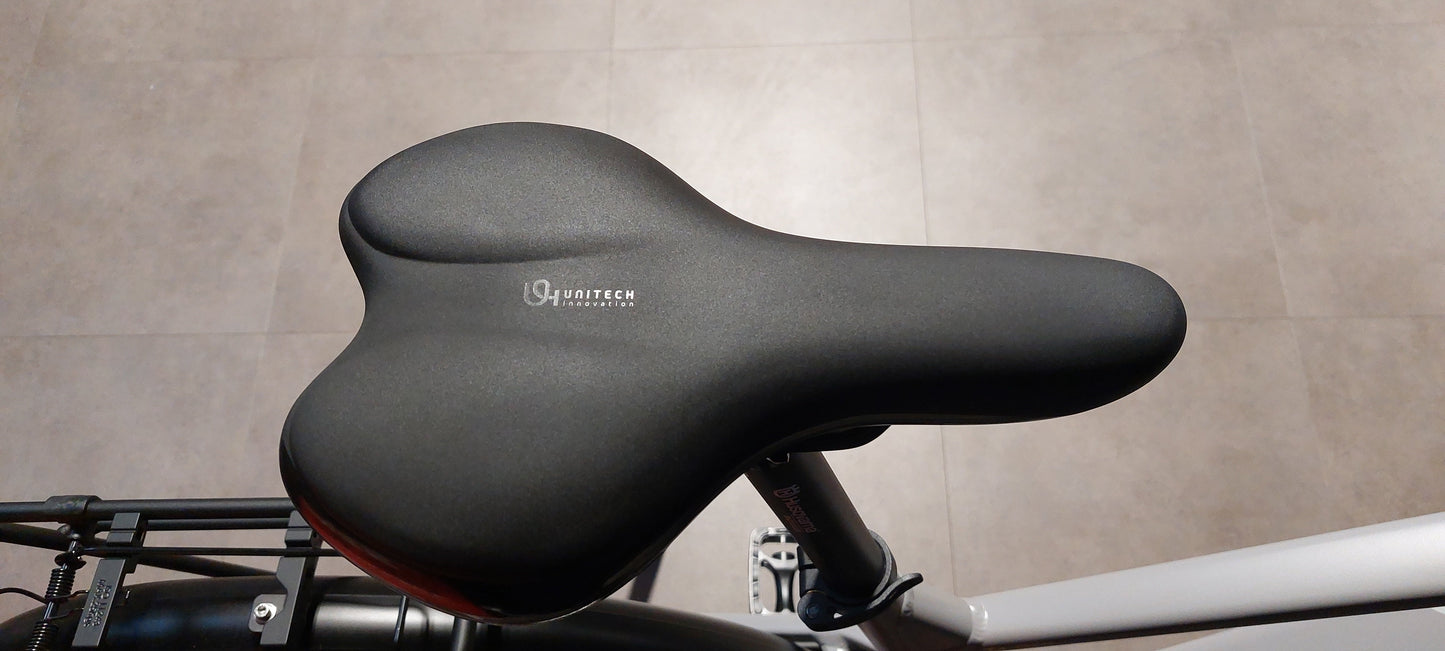

SADDLE: Husqvarna
BARS: Husqvarna Ergo 31.8 mm, 700 mm, Sweep: 9 °, Rise: 12 mm
STEM: Husqvarna 31,8, Ahead, adjustable
PEDDLES: Husqvarna, aluminium

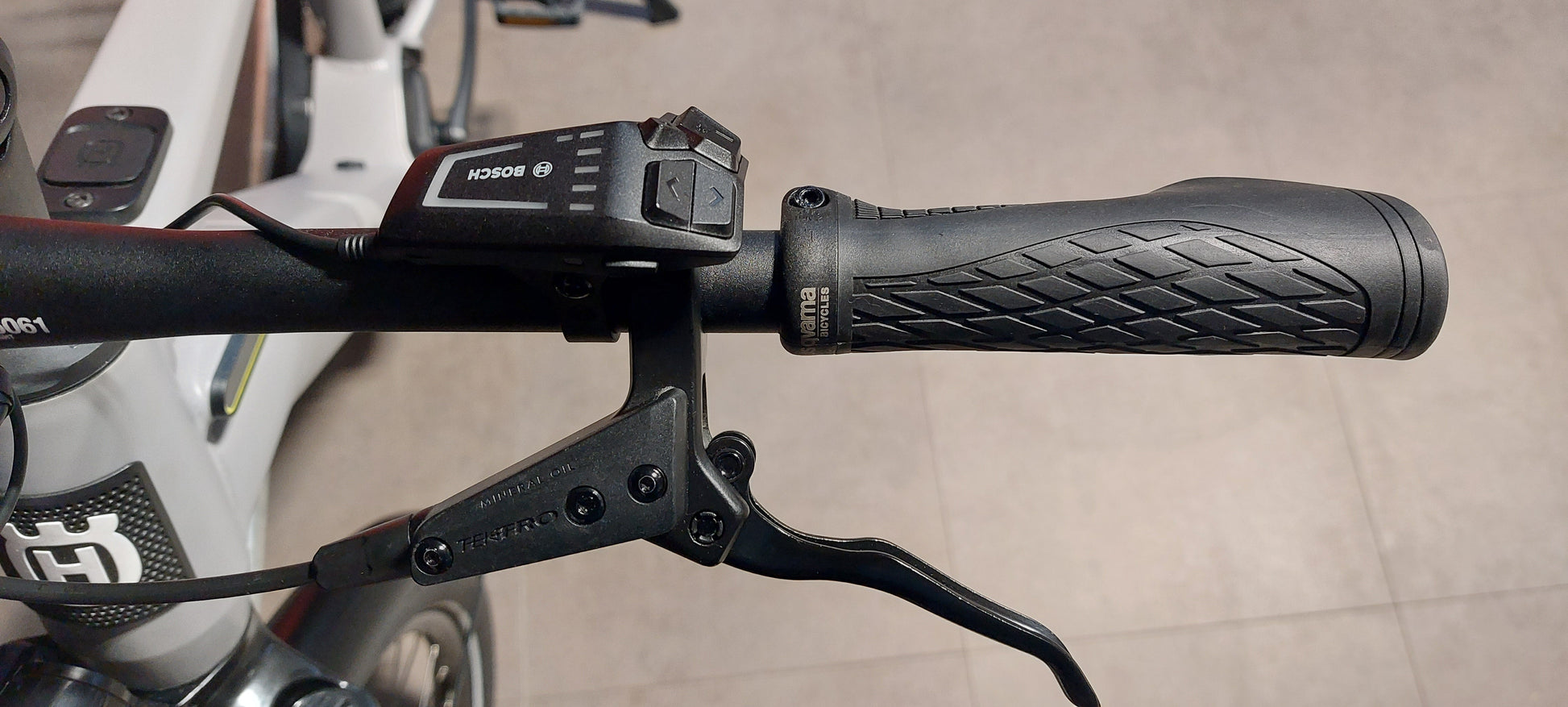

GRIPS: Husqvarna Ergo, Lock-on grips
SEAT POST: Husqvarna, 31.6 mm, Patent
PERMISSIBLE TOTAL VEHICLE WEIGHT: 130KG
GEOMETRIES

SIZE | S | M | L | XL |
B - Seat Tube Length | 450mm | 480mm | 520mm | 560mm |
C - Seat Tube Angle | 75° | 75° | 75° | 75° |
D - Head Tube Length | 130mm | 150mm | 170mm | 180mm |
E - Steering Angle | 68° | 68° | 68° | 68° |
F - Chain Stay Length | 475mm | 475mm | 475mm | 475mm |
G - Wheel Base | 1153mm | 1181mm | 1218mm | 1244mm |
I - BB-Drop | 60mm | 60mm | 60mm | 60mm |
K - Stack | 615mm | 634mm | 652mm | 662mm |
L - Reach | 410mm | 430mm | 460mm | 483mm |
