Storm

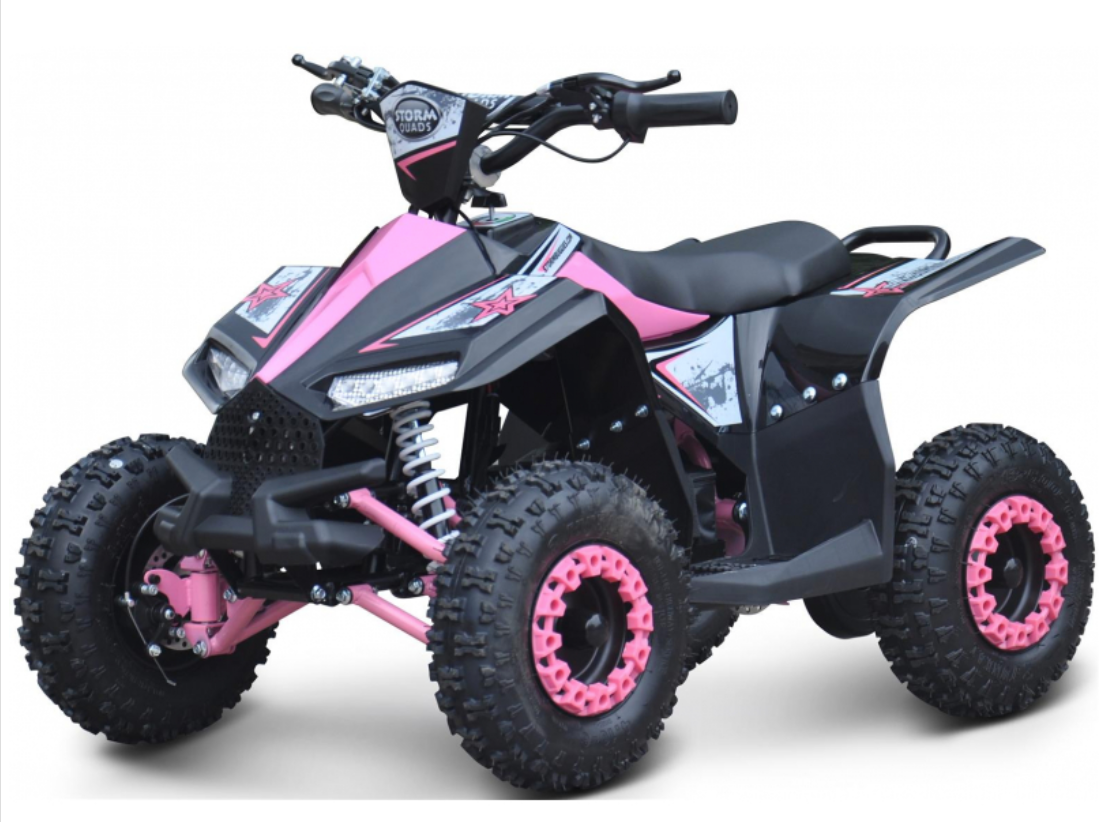

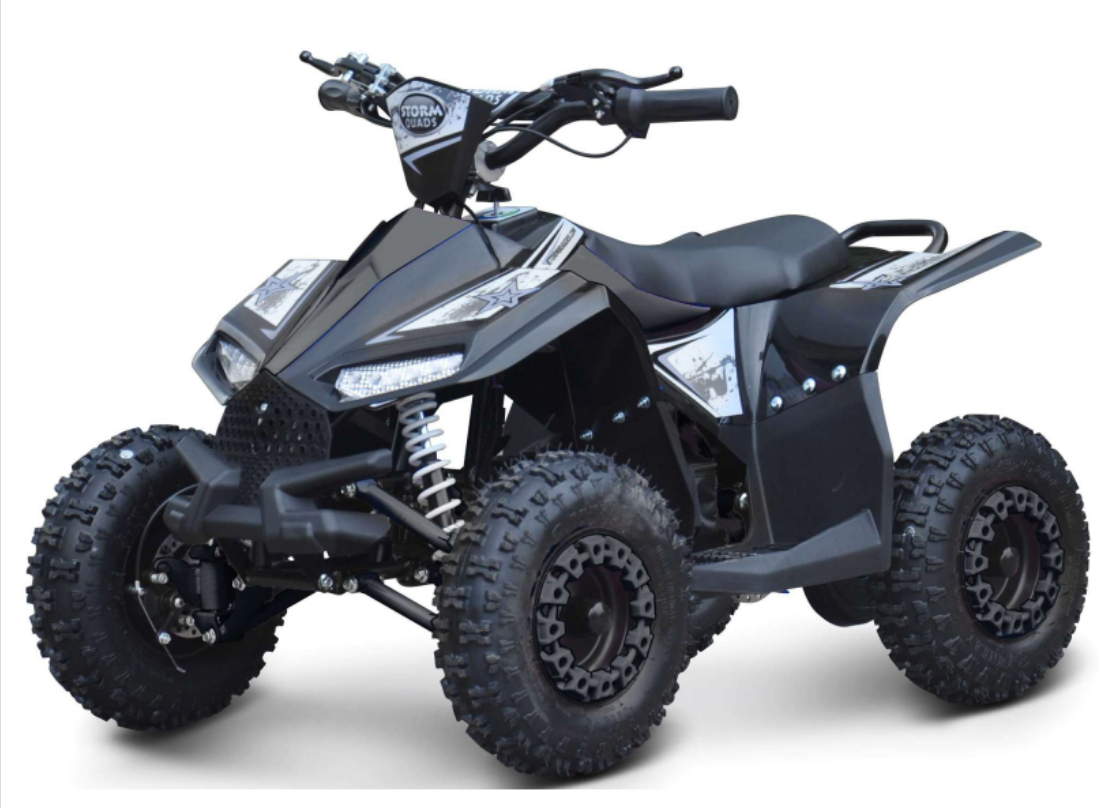

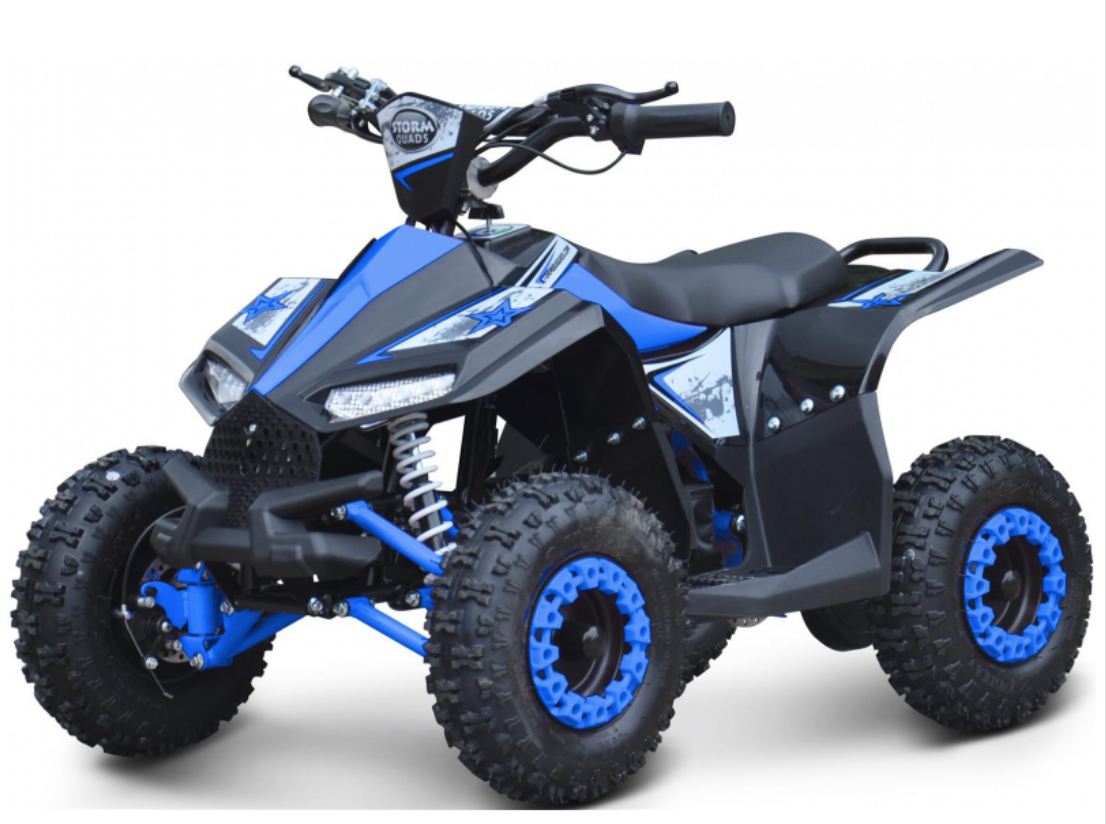

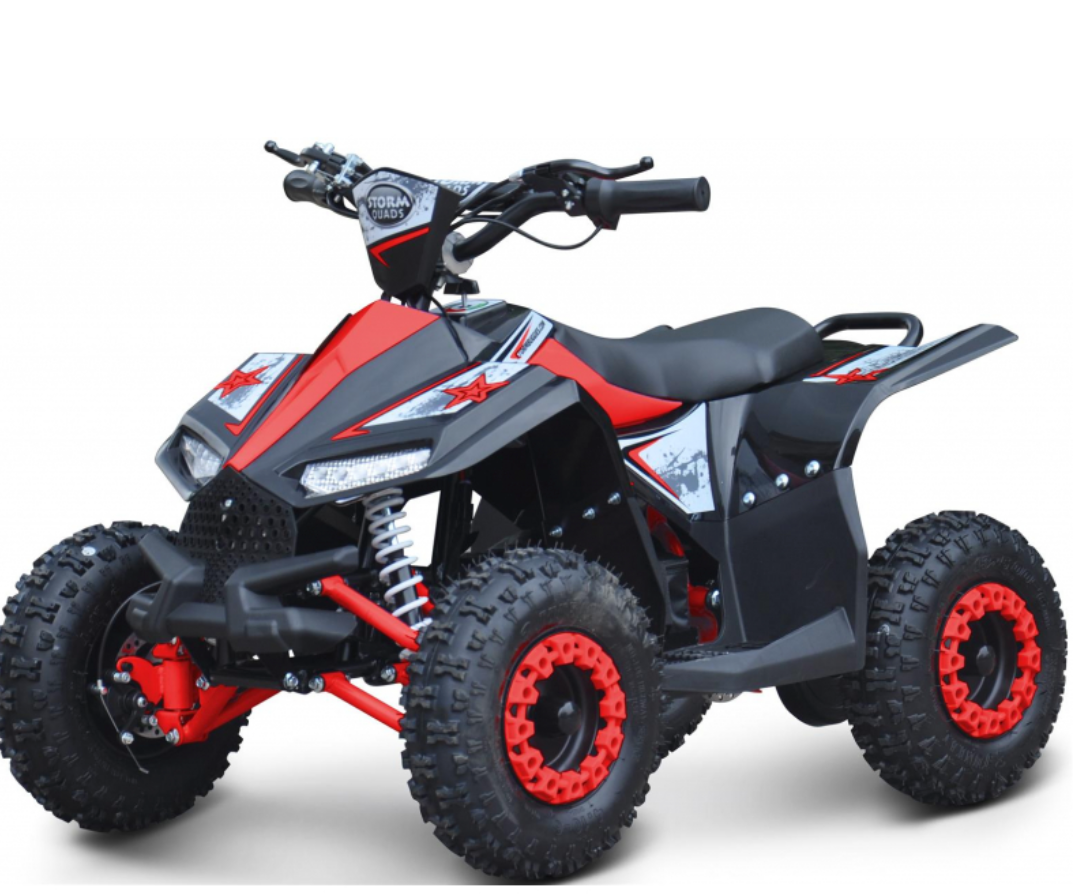

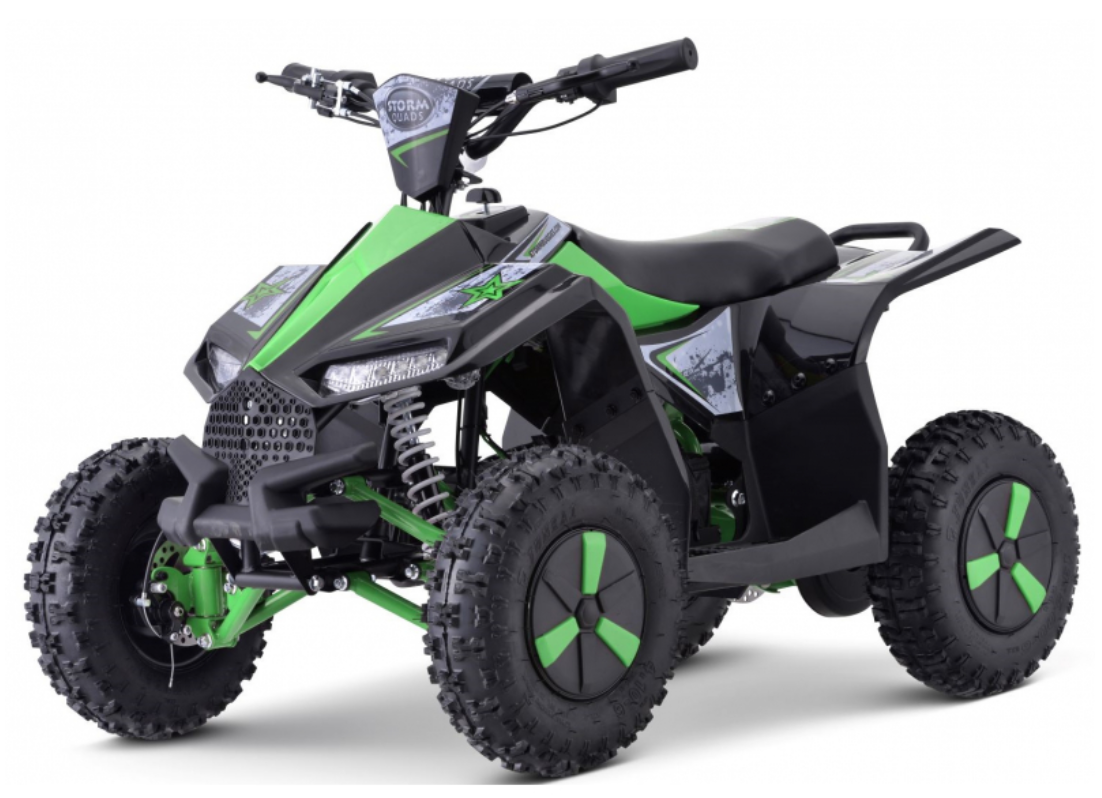

Renegade Ranger 1100w 48v Electric Kids Quad Bike

Renegade Ranger 1100w 48v Electric Kids Quad Bike

Regular price £699.00 GBP
Regular price Sale price £699.00 GBP
Sale Sold out
Tax included.
colour

This top of the range Renegade electric quad bike features the highest specification of components on the market.

The Renegade 1100w 48v kids electric quad bike is the second quad in the fantastic line up of Renegade quads and offers exceptional value for money. The brand is sold worldwide and to date, tens of thousands of these great starter quads have been sold!

These little quads are the ideal starter quads for small children and are extremely safe thanks to an easily adjustable speed limiter with a three approximate speed settings of slow (5mph) medium (9mph) or fast (18mph) Once set, the speed 'limiter key' can be removed for safety.

The great benefit of this quad is a fully automatic electric motor which is very easy for children to use and emits pretty much no noise annoyance!

Key Features -

  • 1100w 48v brushless motor
  • 48v 12Ah lead acid battery
  • Front & rear mechanical disc brakes
  • LED lights
  • Upgraded electrical controller & charger
  • Length = 118cm / Width 67cm / Height 70cm
  • Seat height = 51cm

Renegade 1100W Kids Electric Quad Dimensions

-----------------------------------------------------------------------------------------------------------------------------------------

Important: Please note that these electric bikes are only suitable for riding in dry conditions. Damage caused to the electrics by water will not be covered by warranty.

Where to ride: UK law states that electric products such as this should not be used on a public highway & should NEVER under any circumstances be used on the road. Riders should always observe the essential warnings & safety advice for our products & should only ride this bike while wearing safety equipment & a helmet.

Assembly: Basic assembly required.

Warranty: This product is supplied with a 6 months return to base warranty.

Maintenance: All off-road vehicles such as these require frequent servicing + maintenance and common parts will sometimes require replacement. Please do not purchase this product unless you are willing to maintain the vehicle to a high standard.

General Specifications

WEIGHT 73KG
MIN GROUND CLEARANCE 140MM
DIMENSIONS LENGTH = 1110MM / WIDTH = 670MM / HEIGHT = 730MM
SEAT CUSHIONED SEAT = 510MM MAX HEIGHT
FRAME QUALITY CHROMOLY FINISH
TYRES FRONT 14 X 4.10-6 / REAR 14*5.00-6 (OFF ROAD PATTERN)
BRAKES FRONT = HUB / REAR = MECHANICAL DISC BRAKES
WHEELS BLACK COATED STEEL RIMS - 6" FRONT & 6" REAR
SUSPENSION INDEPENDENT WISHBONE FRONT / SINGLE SWING ARM – SOLID AXLE REAR
SHOCK ABSORBERS FRONT INDEPENDENT SHOCKS / REAR MONO SHOCK

Engine & Transmission Specifications

FINAL DRIVE SOLID REAR AXLE SHAFT
DRIVE BRUSHLESS MOTOR - SHAFT DRIVE
TRANSMISSION FULLY AUTOMATIC – FORWARD & REVERSE
BATTERY INDICATOR BATTERY LEVEL POWER INDICATOR
START METHOD ELECTRIC START – TURN KEY
TOP SPEED SPEED 1 = 6MPH / SPEED 2 = 13MPH / SPEED 3 (UNRESTRICTED) = APPROX 20MPH
CHARGE TIME 5 – 6 HOURS
BATTERY RANGE 45 – 90 MINUTES DEPENDING ON RIDER & TERRAIN
BATTERY TYPE 48V 20AH – SEALED LEAD ACID
MOTOR BRUSHLESS 1100W – 48V – MOTOR
