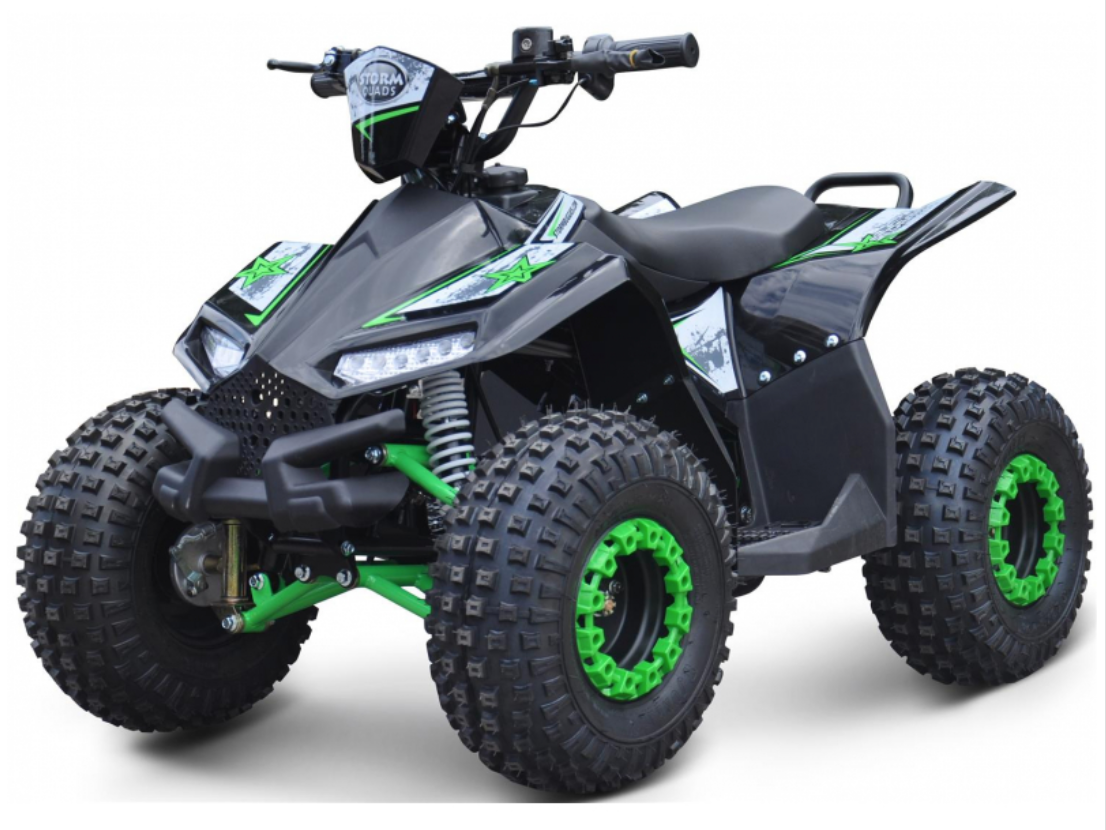

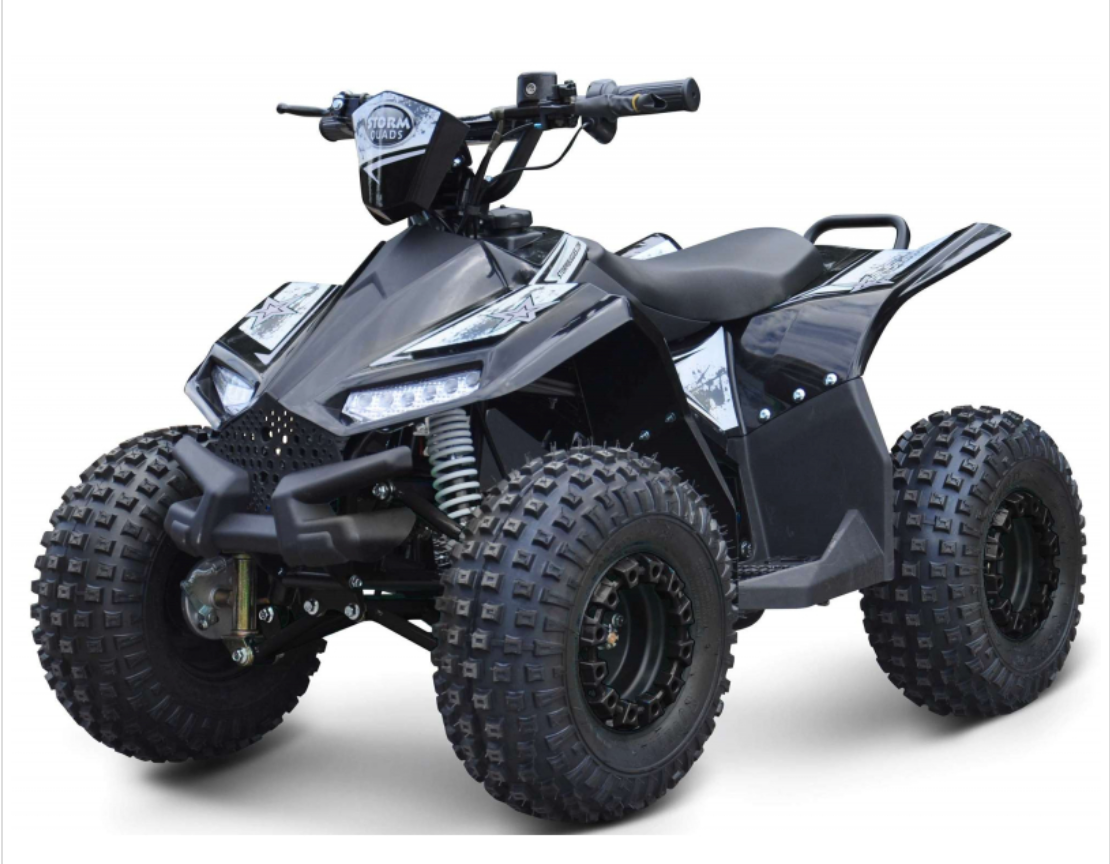

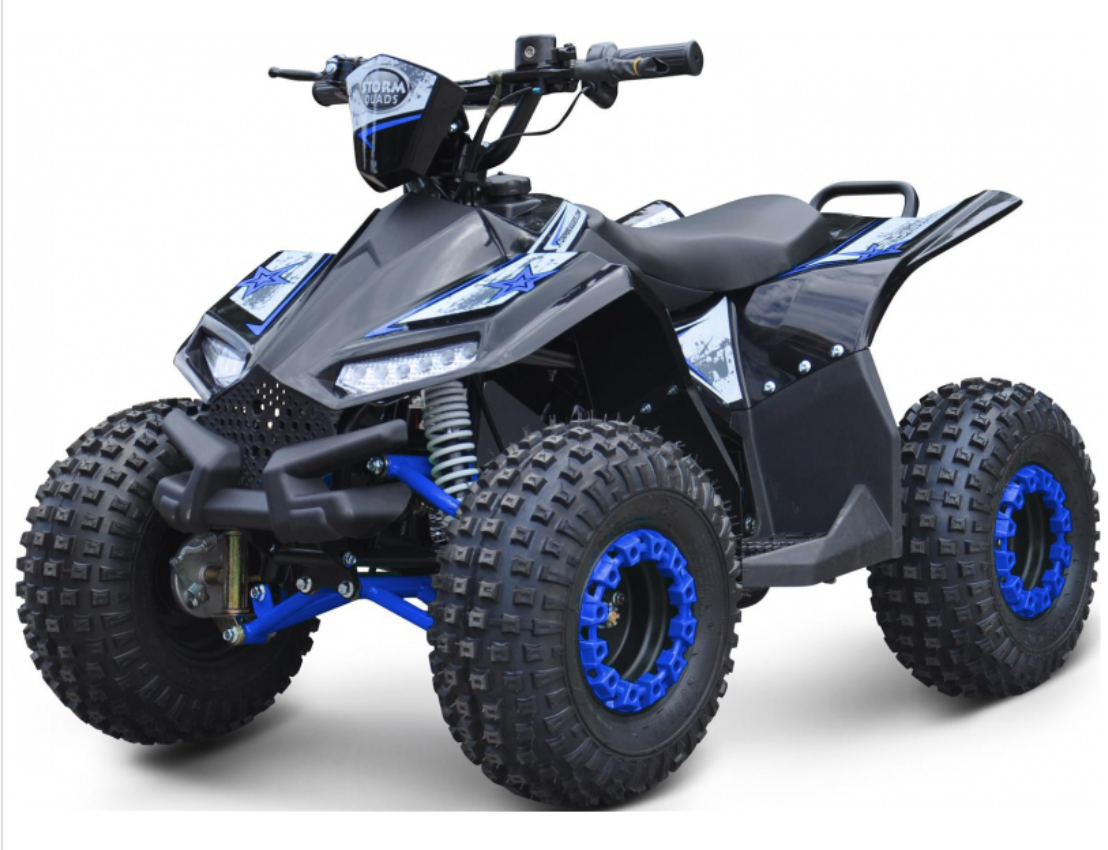

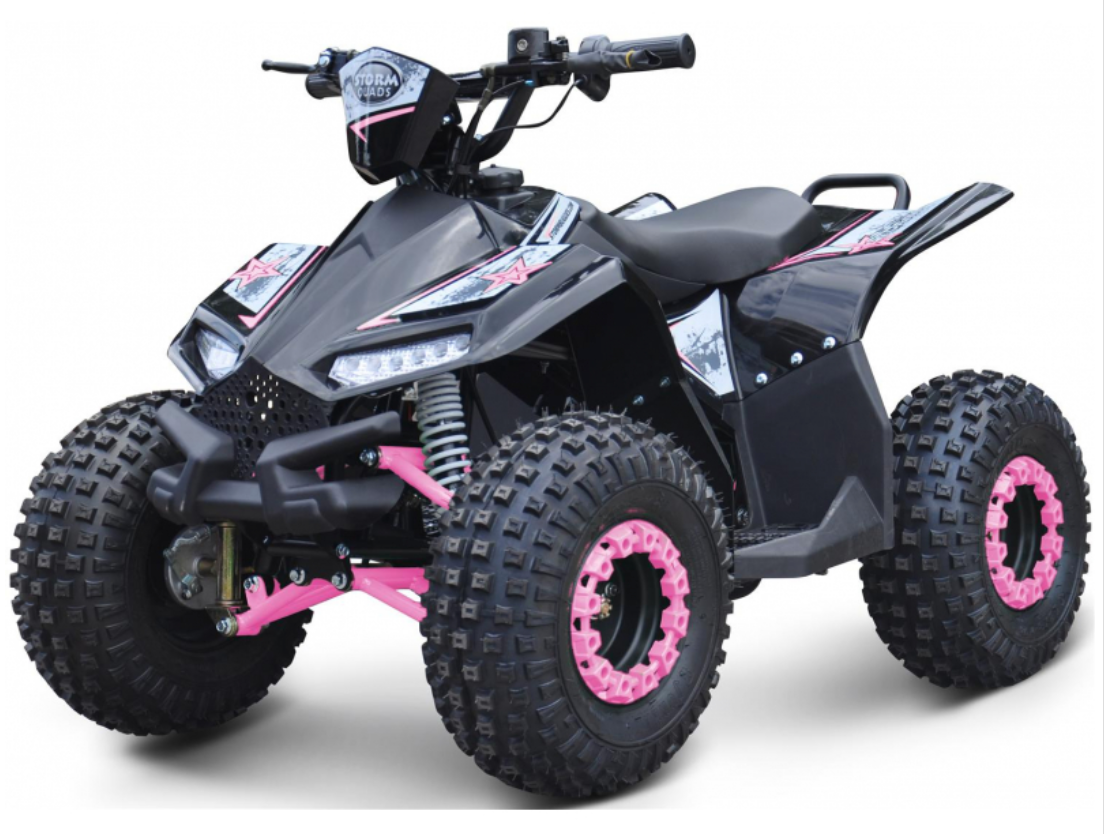

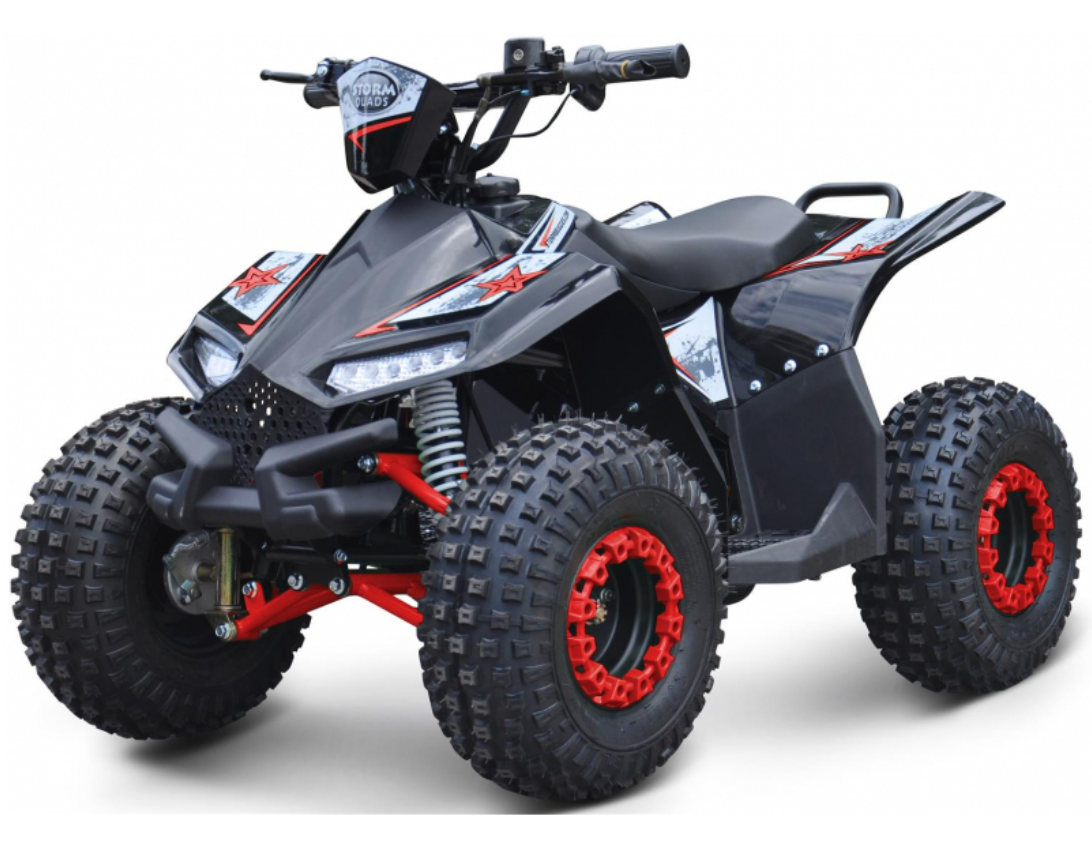

Renegade Ranger 1200w 48v 20Ah Electric Kids Quad Bike
Renegade Ranger 1200w 48v 20Ah Electric Kids Quad Bike
Couldn't load pickup availability
This top of the range Renegade Kids Electric Quad Bike features the highest specification of components on the market.
The Renegade quad is powered by a 1200w brushless motor and an upgraded 20Ah battery to give users extra play time!
Key Features -
- 1200w 48v brushless shaft drive motor
- Upgraded 48v battery 20Ah
- Front hub and independant rear mechanical disc brakes
- Upgraded 8" wheels and 7" tyres
- Top speed approx 20mph
- Aggressive LED lights
- Upgraded electrical controller & charger
- 3 Speed setting with removeable key for parental safety!
- Length = 131cm / Width 78cm / Height 81cm
-----------------------------------------------------------------------------------------------------------------------------------------
Important: Please note that these electric bikes are only suitable for riding in dry conditions. Damage caused to the electrics by water will not be covered by warranty.
Where to ride: UK law states that electric products such as this should not be used on a public highway & should NEVER under any circumstances be used on the road. Riders should always observe the essential warnings & safety advice for our products & should only ride this bike while wearing safety equipment & a helmet.
General Specifications
| WEIGHT | 73KG |
|---|---|
| MIN GROUND CLEARANCE | 140MM |
| DIMENSIONS | LENGTH = 1310MM / WIDTH = 780MM / HEIGHT = 810MM |
| SEAT | CUSHIONED SEAT = 570MM MAX HEIGHT |
| FRAME | QUALITY CHROMOLY FINISH |
| TYRES | FRONT & REAR 16 X 8-7 (OFF ROAD PATTERN 7") |
| BRAKES | FRONT = HUB / REAR = MECHANICAL DISC BRAKES |
| WHEELS | BLACK COATED STEEL RIMS - 8" FRONT & 8" REAR |
| SUSPENSION | INDEPENDENT WISHBONE FRONT / SINGLE SWING ARM – SOLID AXLE REAR |
| SHOCK ABSORBERS | FRONT INDEPENDENT SHOCKS / REAR MONO SHOCK |
Engine & Transmission Specifications
| FINAL DRIVE | SOLID REAR AXLE SHAFT |
|---|---|
| DRIVE | BRUSHLESS MOTOR - SHAFT DRIVE |
| TRANSMISSION | FULLY AUTOMATIC – FORWARD & REVERSE |
| BATTERY INDICATOR | BATTERY LEVEL POWER INDICATOR |
| START METHOD | ELECTRIC START – TURN KEY |
| TOP SPEED | SPEED 1 = 6MPH / SPEED 2 = 13MPH / SPEED 3 (UNRESTRICTED) = APPROX 20MPH |
| CHARGE TIME | 5 – 6 HOURS |
| BATTERY RANGE | 45 – 90 MINUTES DEPENDING ON RIDER & TERRAIN |
| BATTERY TYPE | 48V 20AH – SEALED LEAD ACID |
| MOTOR | BRUSHLESS 1200W – 48V – MOTOR |
Assembly: Basic assembly required.
Warranty: This product is supplied with a 6 months return to base warranty.
Maintenance: All off-road vehicles such as these require frequent servicing + maintenance and common parts will sometimes require replacement. Please do not purchase this product unless you are willing to maintain the vehicle to a high standard.
